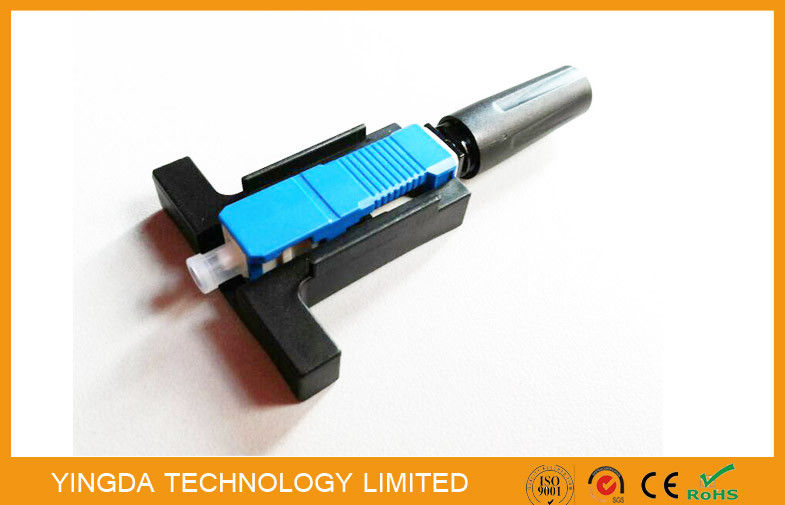

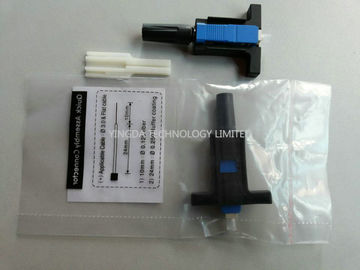

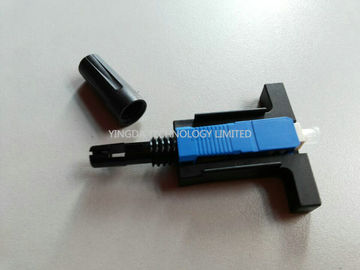

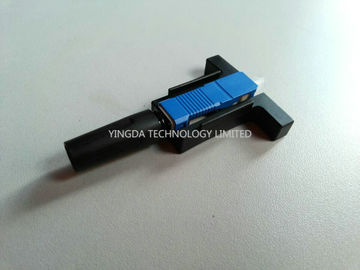

Field Installable SC / PC Connector
برای نمونه و کوپن رایگان با من تماس بگیرید.
WhatsApp:0086 18588475571
ویچت: 0086 18588475571
اسکایپ: sales10@aixton.com
اگر نگرانی دارید، ما به صورت آنلاین 24 ساعته راهنمایی می کنیم.
xmaterial | Plastic | house color | blue |
---|---|---|---|
fiber type | single mode | back cover | yes, black |
insertion loss | < 0.3 dB | return loss | > 45 dB,(typical 50dB) |
pack | plastic bag | total length | 55mm |
برجسته | quick assembly connector,mechanical splicer,mechanical splicer |
Fiber Optic Field Terminated Connector SC/PC, SC Field Installable Connector
Sell point:
1.SC cover type, cable cut length: 24mm / 10mm
2. Apply to 2mm* 3mm drop fiber cable
3.Ceramic V-groove structure, good sealing performance, flame retardant
4. Insertion loss: the average ≤0.2dB, MAX≤0.4dB
5. Return loss: ≥45dB
6. No need epoxy or polished, field-installable, factory embedded fiber
Description
Fiber Optic Fast Connector designed for FTTH is a new generation of fiber connector in assembly.
It can provide Open flow and Pre-polished and curing type products, whose optical and mechanical
specification meets the optical fiber connector standards .
The structure of crimping position is a unique design, and need not glue curing, polishing neither any
consumables. Adopting fiber pre-installed structure, and convenient for field installation.
Features
- Provide Open flow and Pre-cast type of products
- Adopting fiber pre-installed structure
- Convenient for field installation
- VFL window: Immediate feedback on successful termination
- No epoxy or polishing required, easy assembly in the field
- Fiber termination can be reset, save time and energy ,reduce scrap
- No special tools required: Common fiber tools, readily available
- Reliability and superior performance
- Repeatable times is no less than 50 times;
- Long life span design, more than 30 years.
- Precise mechanical dimensions
- Low insertion loss, high return loss
- Comply standard of IEC61754-4
Application
- Premise environments
- Connections at the desk for LAN environments
- Patch panels
- Direct equipment termination
- Fiber to the Subscriber / Home (FTTH) applications
- Repair/replacement requirements
- Equipment test leads
Specification
Type |
Parameters |
Insertion loss |
≤ 0.3dB(1310nm & 1550nm) |
Return loss |
≤ -40dB |
Bare fiber strength |
>5N |
Clad strength |
>10N |
Tension |
>50N |
Mechanical durability (500times) |
IL ≤ 0.2dB & RL ≤ 5dB |
Operating Temperature |
5 ºC to +70 ºC |
Order information
- Connector: SC/UPC, SC/APC
- Cable type: indoor cable 0.9mm,2.0mm,3.0mm or drop cable 2x3mm
- Connector color: blue, green
- Package: 10pcs/set or 1pc/set, customized
- OEM ok
