SC Simplex 24 Port Fiber Patch Panel For FTTH FTTX FTTB ODN PON Network

محل منبع چین
نام تجاری YINGDA
گواهی ISO SGS ROHS
شماره مدل GPSM-SC24
مقدار حداقل تعداد سفارش 100 pcs
قیمت negotiable
جزئیات بسته بندی 1pc / box, 5 pcs / carton box
زمان تحویل 5-8days after payment
قابلیت ارائه 500,000 pcs per month

برای نمونه و کوپن رایگان با من تماس بگیرید.

WhatsApp:0086 18588475571

ویچت: 0086 18588475571

اسکایپ: sales10@aixton.com

اگر نگرانی دارید، ما به صورت آنلاین 24 ساعته راهنمایی می کنیم.

x
جزئیات محصول
material cold rolled steel color black
capacity 24 fibers / Cores adapter SC simplex
cable ports 4 pcs application FTTH FTTX FTTB ODN PON network
dimension 430*250*1U thickness 1.0mm
fiber type singlemode pigtail 12 Cores pigtail SC SM 1.5M 0.9mm
برجسته

,

,

optical distribution frame

پیام بگذارید
توضیحات محصول

12 Ports SC FC Rack Mount Patch Panel, 24 Port Fiber Optic Patch Panel 19 Inch





19" Standard rack mount Fiber optic patch panel are the auxiliary equipment for terminal wiring in

optical fiber transmission communication network, which is suitable for indoor optical cable splice

directly and branch connection, and protective the fiber.





Features

  • Applicable in the termination and 19'' standard structure
  • Dummy drawer optical fiber terminal box

  • rack mount in optical distribution frame ODF
  • Suitable for FC,SC,ST,LC,E2000 adapters
  • Cold rolled steel sheet, with electrostatic spraying
  • Box size: 430*300*1U
  • max capacity; 48Cores 1U SC Duplex
  • Artistic appearance,easy for pasting signs.



Patch Panel Structure



Include 3 parts: box body, internal components, optical fiber connector protector.



1. Box body shell

convenient to open and install, have high voltage grounding device for the metal components.

2. Internal components mainly 3 items:



A. support: the internal structure body, used for the internal support;

B. Splice trayto store optical fiber connectorprotection pieceand the remaining fiber,

the remaining optical fiber length≥1.6m, bend radius37.5mm, also have remark to identify the fiber;

C.: fixed device: to fix the optical cable sheathstrengthen member and wiring pigtail.

Protection parts of fiber optic connectors: sleeve and cable rubber gland



Specification



Type

Dimension

(mm)

Max capacity

(core)

Carton size(mm)

Qty/

carton

(pc)

G.W

(kg)

GPRF-1U-SC24

430*300*1U

24

485*420*350

5

25

GPRF-1U-FC24

430*300*1U

24

GPRF-1U-2SC12

430*300*1U

24

GPRF-1U-2SC24

430*300*1U

48





Environmental requirements:



Not suitable outdoor use, if need to use, should take protective measures.

Working temperature: -25 to +40 °C

Storage temperature: -25 to +55 °C

Relative humidity: 85% (30°C)

Atmospheric pressure: 70 ~ 106kPa

Service life: 20 years



Material properties

Fiber Optic Patch panel materials is corrosion resistancestable physical and chemical properties;

 all material must be compatible, and is compatible with optical cable sheath and wiring pigtail sheath.

To prevent corrosion and other electrical damage, these materials must be compatible with the other

equipment used in the patch panel



1.  If the patch panel use engineering plastics, its combustion performance shall be in accordance

 with A GB/T5169.7 test, the test last for 30s.

2. optical fiber connector enhancement protector use materials and hot melt temperature filler shall

be not less than 120 °C, thermal softening temperature shall be not less than 90 °C, can be used in

a 25 ~+40°C temperature.

3all materials should be non-toxic, non corrosive, on human health and other equipment element

side effects.

The appearance shall complete shape, no burr, no bubbles, no cracks and voids, warping, impurity

defects. All the background color should be uniformly continuous. Beautiful appearance and

convenient construction, low attenuation loss, reasonable structure, reinforced core is fixed in

the terminal box, the sheath has ground wire, suitable for fiber optic ribbon cable and indoor cable.

Unique design,19 inch rack or wall mount.





Mechanical properties



Tensile strength:should withstand axial tensile strength not less than 500N between cable terminal

box and the cable, and not less than 5N between wiring pigtail and terminal box.



Compression test: cable terminal box each should be able to withstand the vertical static pressure

not less than 200N.



Twist test : cable terminal box should be able to withstand the torsion angle.





Electrical properties

Fiber optic cable box metal component and cable metal strengthening core, cable metal components and the ground insulation resistance

insulation resistance:

should be no less than 2*104M ohm, test voltage:500V (DC).

 voltage strength:

no breakdown, no arc phenomenon at 15Kv DC under 1min, no breakdown, no arc phenomenon.

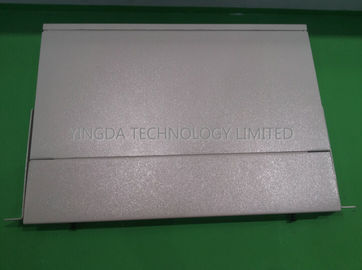

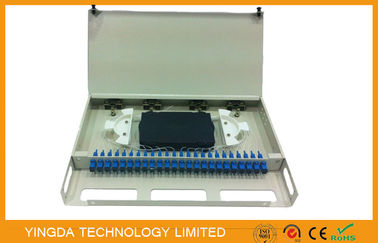

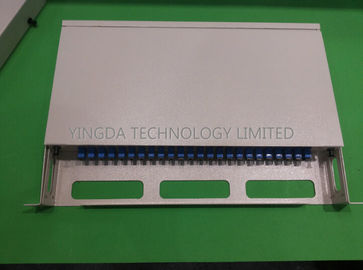

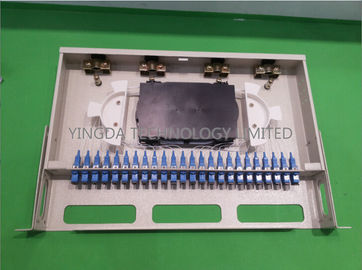

SC Simplex 24 Port Fiber Patch Panel For FTTH FTTX FTTB ODN PON Network 0SC Simplex 24 Port Fiber Patch Panel For FTTH FTTX FTTB ODN PON Network 1
