Micro Tungsten Steel Fiber Tool Kits Cutting Pen Knife Wide Blade
برای نمونه و کوپن رایگان با من تماس بگیرید.
WhatsApp:0086 18588475571
ویچت: 0086 18588475571
اسکایپ: sales10@aixton.com
اگر نگرانی دارید، ما به صورت آنلاین 24 ساعته راهنمایی می کنیم.
xmaterial | Tungsten Steel | type | fiber optic |
---|---|---|---|
blade shape | sharp blade | color | gray |
برجسته | ,,fiber polishing film |

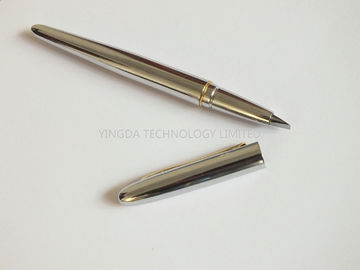

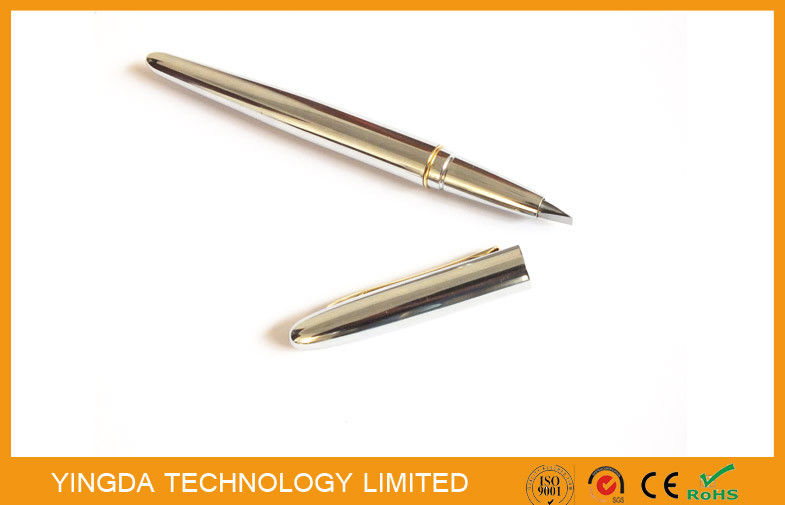

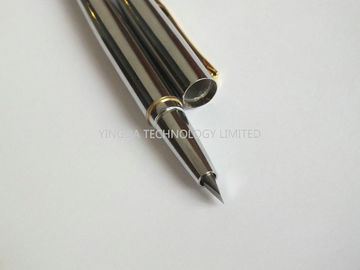

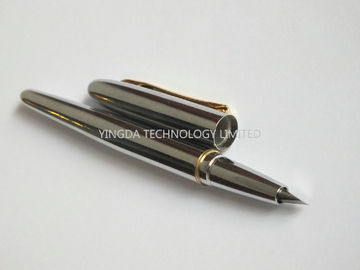

Fiber Tool Kits Tungsten Steel Micro Optical Fiber Cutting Pen Knife Wide Blade
Features
1. Blade material: tungsten steel (sharp blade)
2. The blade is sharp, easy cutting, abrasion resistance
3. Portable, non slip, good grip
4. Protective cap, ensure that the cutter head is not accidental damage, has the very strong
anti fall even in the absence of a pen cap.
Reminder:
1. Is the fiber cutting pen can replace the desktop precision optical fiber cutter?
The cutter pen cutting quality is difficult to achieve the requirements of optical fiber welding machine,
only recommended for simple temporary test or use not usual, such as for bare fiber adapter temporary
connection test. If need precise welding or high requirements mechanical splice, still recommend to buy
fiber clever or fiber cleaver equipped with fusion splicer.
2. optical fiber cutting pen can be used to deal with mechanical splicer or fast connector
(field installation connector) end face?
Not recommended. Because the results may not reach the precision requirements, still suggest to use
the preciser fiber cleaver. But customers can try by themselves, some can success, but not completely
guarantee effect.
3. How to use the optical fiber cutting pen?
Firstly, strip optical fiber coating layer, then clean with alcohol or acetone,placed the fiber in a clean
and spacious mirror or glass platform (can not be metal or hard platform), then vertically draw across
fiber, finally carefully a tap, then it is OK. The skilled worker can do suspended cutting.
4. How is the service life? How long warranty?
Cutting pen is the disposable tools, natural wear, don’t statistic cutting life.Its consumable tools,
without warranty.
5. How much is the end face attenuation loss of optical fiber after processed?
It is simple tool, end face loss has a relationship with many factors. The more skilled the operator,
the less the cutting loss.
6. what is the difference of ruby, tungsten steel material? Which is better?
Ruby texture is crisp, hardness slightly higher;but the tungsten steel toughness is strong, not easy
to wear, more durable. Depends on customer need to choose.
Other type can be choose:
Flat blade
