Bottle Fiber Tool Kits / Transparent Fiber Optic Matching Gel Oil 30 ML

محل منبع چین
نام تجاری YINGDA
گواهی ISO,SGS
شماره مدل MG150
مقدار حداقل تعداد سفارش 2 PCS
قیمت Negotiable
جزئیات بسته بندی 1pc / box
زمان تحویل 5days after pay
شرایط پرداخت T/T or western Union
قابلیت ارائه 50,000pcs per month

برای نمونه و کوپن رایگان با من تماس بگیرید.

WhatsApp:0086 18588475571

ویچت: 0086 18588475571

اسکایپ: sales10@aixton.com

اگر نگرانی دارید، ما به صورت آنلاین 24 ساعته راهنمایی می کنیم.

x
جزئیات محصول
name matching gel oil type fiber optic
volume 30ml color transparent
برجسته

,

,

fiber polishing film

پیام بگذارید
توضیحات محصول

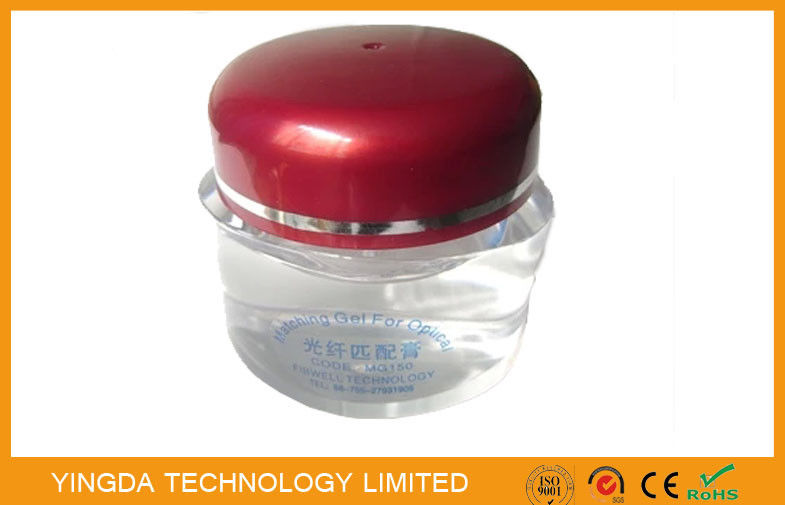

Transparent Fiber Optic Matching Gel Oil 30 ML / Bottle Fiber Tool Kits





Optical fiber matching gel paste is a paste compound  which is soft, non sticky, water blocking

not easy to flow, non-toxicharmless, glittering and translucent clear, the refractive index is similar

with optical fiber and silicon glass, oil separation rate is zero, poor volatile performance, has good

oxidation resistance and long term stability,it is widely applied to optical fiber communication and

lighting industry.



Typical properties:

  • 1.46 refractive index ,similar to fiber and silicon glass
  • Transparent, not easy to flow, effective at > 350nm optical transmission
  • High purity, non irritating, non-toxicharmless, does not affect the sensitive semiconductor or metal
  • The oil separation rate is zero, poor volatile performance, has good oxidation resistance and long term stability
  • Wide applicable temperature: -40 °C ~ +150 °C



Typical applications:

  1. Can reduce the Fresnel reflection loss caused between the fiber end face and the air.
  2. The optical return loss test and other occasions, can separate sectional air reflection
  3. The application of bare optical fiber connection and connection (such as a test or repair)
  4. V-groove, mechanical connector (mechanical splicer), quick connector(field installation
  5. connector) and other temporary connection or permanent connection.
  6. MT-RJ, MPO, MT optical fiber connector
  7. The lighting applications



Storage: keep in a cool place and sealed (20 °C)

Specificationsnet 30ml bottle

Warranty period: 24 months, production date: see the bottom of the bottle



Note: do not place where children is easy to take place, to avoid eating
