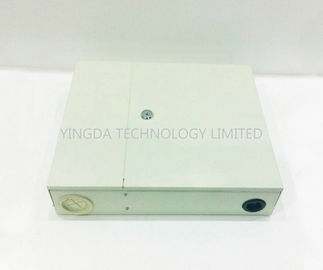

Singlemode Fiber Optic Termination Box

محل منبع چین
نام تجاری YINGDA
گواهی ISO SGS ROHS
شماره مدل GP(05)D
مقدار حداقل تعداد سفارش 100 pcs
قیمت negotiable
جزئیات بسته بندی 1pc / box, 5 pcs / carton box
زمان تحویل 8 days after payment
قابلیت ارائه 500,000 pcs per month

برای نمونه و کوپن رایگان با من تماس بگیرید.

WhatsApp:0086 18588475571

ویچت: 0086 18588475571

اسکایپ: sales10@aixton.com

اگر نگرانی دارید، ما به صورت آنلاین 24 ساعته راهنمایی می کنیم.

x
جزئیات محصول
material cold rolled steel color white
max capacity 24 fibers adapter FC SC ST LC
cable ports 4 Pcs application FTTH FTTX FTTB ODN PON network
dimension 350*300*80mm thickness 1.0mm
fiber type singlemode, mulitmode
برجسته

,

,

fiber optic distribution box

پیام بگذارید
توضیحات محصول

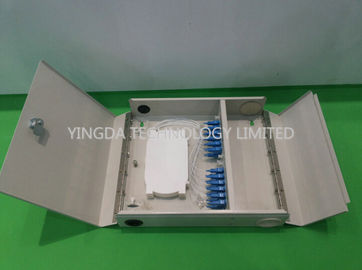

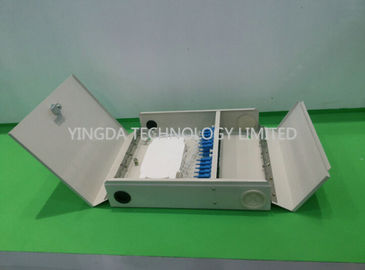

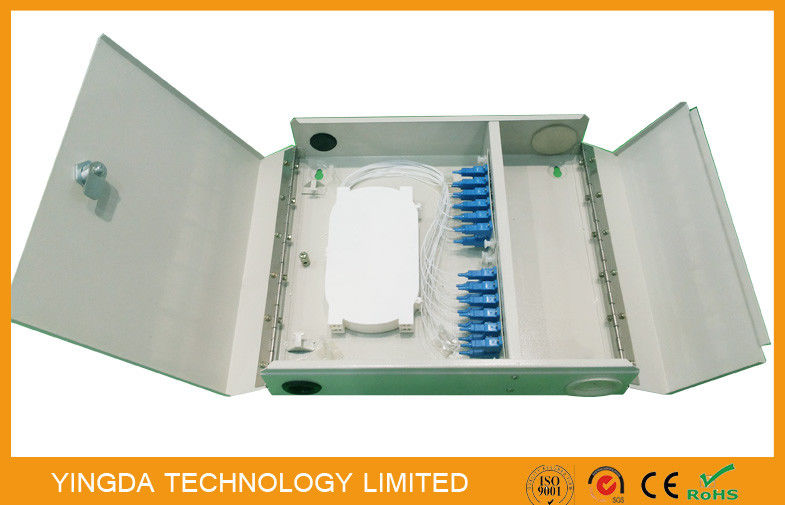

Wall Mount 2Door Metal Fiber Optic Termination Box, Wall Mount Box





Wall Mount Fiber Optic Cable Distribution Box GP(05)D series is distribution equipment to connect,

protect and management the fiber and cable in fiber optic communication networ. It consist of

termination access module and rack. The device can realize the optical fiber fixed, ground protection,

optical fiber connection, rational distribution, redundant fiber coiling, distribution scheduling,etc.





Advantage:

  1. Cold rolled steel sheet,electrostatic spraying.
  2. Available for 24pcs adapters FC,ST,SC,LC
  3. Wall mount
  4. max capacity: 24cores
  5. Dimension: 350*300*80mm ,small size
  6. package: plastic bag,bubble bag,then carton box
  7. 1  year guarantee
  8. two door open, with individual key, safe and easy to operate and convenient.



 Features

  1. Available for small capacity communication system,wall mounting,compact structure,harmonized with machine room
  2. The cabinet is composed of two parts,one links with optical cables for fusion
  3. connection between optical cable and fiber pigtail and another links with patch cord.
  4. Provide fusion and storage for optical cables
  5. Reliable protection appliance of fixing,stripping and earthing for optical cables.
  6. Whole range protected design for fiber lay to ensure the bending radius=40mm
  7. Provide various accessories to avoid any unexpected damage to the fiber



Specification



Type

Dimension

(mm)

Max capacity

(core)

Carton size

(mm)

GW.

(kg)

Qty/carton

(pc)

GP(05)D-FC24

350*300*80

24

405*355*605

19.5

5

GP(05)D-SC24

350*300*80

24

405*355*605

19.5

5




Electrical and Envrionment properties



Connector attenuation

 (insertion, exchange, repeat)

≤ 0.3dB

Return loss:

APC≥60dB,UPC≥50dB,PC≥40dB

Insulation resistance

≥1000MΩ/500V (DC)

High voltage

3000V (DC) /1min, no breakdown, no arc.

Grounding wire cross-sectional area

 >6mm2, obvious grounding symbol

working temperature

-40 degrees ~+70 degrees

storage temperature

-40 degrees ~+70 degrees

Humidity

<90% 3: (+30 C)

atmospheric pressure

62Kpa ~ 106Kpa

Service life

20years





Application

  • Cable introduce, fix and strip protection, optical fiber splice and protection, pigtail storage,
  • patch cord storage and management, optical fiber fixed connected and cross connection
  • Ialso can install optical splitters, wave division multiplexer WDM and other value-added module according to the requirements of customers.
  • Terminate, use and manage between wiring room and equipment room.
