36 Fibers FTTH Optical Splitter Distribution Box, 1:8 PLC Fiber Optic Splitter Box
برای نمونه و کوپن رایگان با من تماس بگیرید.
WhatsApp:0086 18588475571
ویچت: 0086 18588475571
اسکایپ: sales10@aixton.com
اگر نگرانی دارید، ما به صورت آنلاین 24 ساعته راهنمایی می کنیم.
xCable ports | 2in 2out (straight through) | Cable diameter | Φ10~15 mm |
---|---|---|---|
Color | white | Dimension | 280×250×125 mm |
installation method | wall mount | splitter | 4x 1:8 or 1x 2:32 blockless spitter |
splice tray | max. 5pcs | tray capacity | 12 fibers |
ftth drop cable | max. 32 pcs | material | PC or ABS |
برجسته | ,,splitter distribution box |

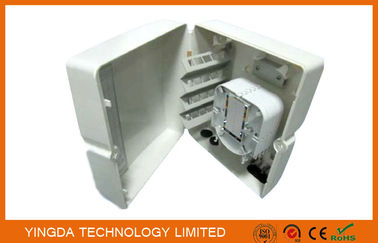

36 Fibers FTTH Optical Splitter Distribution Box, 1:8 PLC Fiber Optic Splitter Box
This Fiber Optic Splitter Termination Box is to achieve the feeder cable and branch cable reserved
in the node, direct connection and allocation.
Installation method: Wall-mounted
Features
1. The box is made of the high strength engineering plastics
2. Compact size , light weight;
3. Anti-UV, Ultra violet resistant and rainfall resistant;
4. Wall and pole mountable;
5. Up to 32 FTTH drop cables;
6. The design of inner lock is artistic and easy to operate.
7. It is used to protect Φ10~15 optical cable or soft cable
8. SC adaptor, fast connectors optional
9. Inlet holes for both open and concealed wires, to meet various applications
10. Pre-install the PLC splitters with the maximum optical distribution ratios 2:32 or 4x1:8,
speically suitable for FTTx fiber inlet in PON technique.
Specification
Box Material |
Polymer synthetic plastic |
Max capacity |
36 Core |
Dimension (mm) |
280×250×125 |
Functions: |
straight through, branching, passive splitter |
Splitter type: |
micro splitter (mini module splitter, blockless) |
Splitter installation position: |
splitter fixing bracket |
Adaptor type: |
SC |
Max ratio: |
2:32 or 4x1:8 |
Splice tray type: |
10 # |
Splice tray quantity: |
5 pcs |
cable: |
8 figure soft cable, general outdoor cable, indoor wiring cable |
Standard accessory: |
box one set |
Optional accessory: |
PLC splitter, SC adaptor, fast connector, bundle pigtail, ribbon pigtail |
Weight |
2.3-2.5kgs |
Package information
Carton qty |
12pcs |
Carton size |
630×580×520mm |
Gross weight |
33.6kgs |
Equipment:
Injection molding machine;Punching machine;Guillotine Shear;CNC punching machine;
CNC bending machine;
Exhibition: ECOC,OFC, Local Exibihition.
R & D departmen:System Engineer; Technical Support Engineer; Communication Engineer;
Test Engineer.;Data-Base Administrator;Program Engineer;
Partner: China Mobile, HuaWei, China Telecom, ZTE, Mtel, Tyco, 3M.
Market: Europe, South American,North American,Asia,South Africa.
