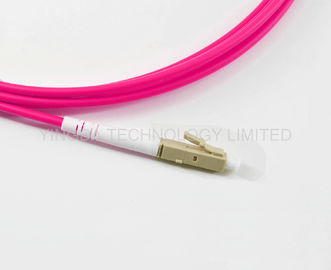

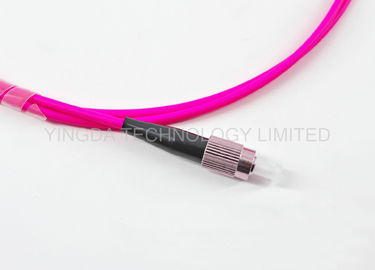

LC / PC - FC / PC Fiber Optic Patch Cord Jumper OM4 50/125um Multimode LSZH 2M Pink Jacket
برای نمونه و کوپن رایگان با من تماس بگیرید.
WhatsApp:0086 18588475571
ویچت: 0086 18588475571
اسکایپ: sales10@aixton.com
اگر نگرانی دارید، ما به صورت آنلاین 24 ساعته راهنمایی می کنیم.
xCable jacket | LSZH | connector | SC/PC, FC/PC |
---|---|---|---|
fiber mode | OM4 50/125um | cable color | pink |
length | 2meter | fiber count | 2fibers |
cable diameter | 2.0mm | net weight | 0.03kg |
label | english, neutral | test report | yes |
customer brand | on label or the cable print | ||
برجسته | fiber optic patch cable,fiber optic jumper,fiber optic jumper |

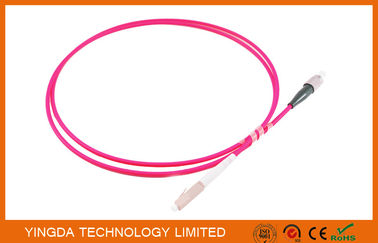

LC / PC - FC / PC Fiber Optic Patch Cord Jumper OM4 50/125um Multimode LSZH 2M Pink Jacket
Optical fiber jumper is used as a link between fiber optic cable and equipment wiring. It has a thick
protective layer, generally used in the connection between the transmitter and the terminal box.
Optical fiber patch cord is similar to the coaxial cable, but no net shielding layer. In multimode fiber
center is the glass core for light propagation. The diameter of the core is 50-65um, roughly equal to the
size of a person's hair. And single-mode fiber core diameter is 8-10um,
outside the core surrounded by a layer glass coating whose refractive index is lower than that of the
core in order to keep the fiber in the core. Then a thin layer of plastic jacket to protect the coating.
Features
- In accordance with Telcordia GR-326-CORE standard
- Low insertion loss, high return loss and high stability
- Good repeated mating characteristics, good interchangeability
- Using standard metal parts
- Ceramic ferrule, PC, UPC, APC grinding
- Can provide PVC, LSZH, OFNP, OFNR, TPU and other different colors, different outer sheath
- material
- Can provide G657A, G652D different fiber core material

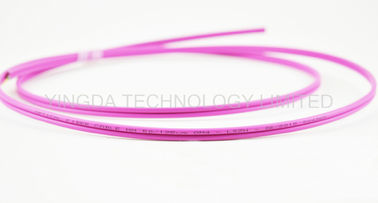

Indoor cable GJFJV
Application
Fiber jumper products are mainly used in communications equipment, fiber to the home, LAN, optical
fiber sensor, optical fiber communication system, optical fibre connection device defense combat
readiness. Suitable for limited TV network, telecommunication network, computer optical fiber network
and optical fiber test equipment, etc.. Generally speaking, it is mainly used in below several aspects:
- optical fiber communication system
- Optical access network
- Optical fiber data transmission
- Optical fiber CATV
- LAN LAN
- Test equipment
- Optical fiber sensor
Specifications
Optical performance |
item |
|
Test condition |
Singlemode |
Multimode |
Insertion loss |
UPC |
SM:1310/1550nm |
≤0.2dB |
≤0.3dB |
|
Mm:850/1300nm |
|||||
APC |
SM:1310/1550nm |
≤0.3dB |
|
||
Return loss |
UPC |
SM:1310/1550nm |
≥55dB |
≥35dB |
|
Mm:850/1300nm |
|||||
APC |
SM:1310/1550nm |
≥65dB |
|
||
Mechanical loss |
Compact test |
1.8M height,8times |
<0.1dB |
<0.1dB |
|
Vibration test |
10-60Hz, 1mm full amplitude |
<0.1dB |
<0.1dB |
||
Plug life |
>1000 times |
<0.1dB |
<0.1dB |
||
Tensile strength |
>100N |
<0.1dB |
<0.1dB |
||
Environmental loss |
High low temperature cycle test |
-25~+75°C,2cycles |
<0.2dB |
<0.2dB |
|
High temperature test |
+80°C,2hours |
<0.2dB |
<0.2dB |
||
Low temperature test |
-40°C,2hours |
<0.2dB |
<0.2dB |
||
Damp heat test |
+40°C, 90-95%RH, 2hours |
<0.2dB |
<0.2dB |
Order information
1. Connectors: FC,ST,SC,LC,MTRJ,MU,MPO,E2000,SMA,etc.
2. End face: UPC, APC, PC
3. Cable outer diameter:φ0.9,φ2,φ3
4. Fiber count: simplex, duplex,4core, 6core, 8core,12cores,24core,or customized
5. Fiber type:G652D,G657A,G655,G657A2,50/125,62.5/125,OM3 50/125-150, OM4 50/125-300
6. Connector color: blue, beige,green, aqua, purple,etc
7. Boot color: gray,blue, green, white, black, red, aqua, etc
8. Length: 1meter, 1.5meter... customized
