24 Cores Fiber Optic Distribution Box For Uncut Cable , Mid Span Access FTTH Fibre Splice Box

24 Cores Fiber Optic Termination Box for Uncut Cable, Mid Span Access FTTH Fibre Splice Box 24 Ports PC+ABS White

Model: FDB0224C

Fiber Termination Box provides a high density wall mounted solution for next generation networks,

which aims to provide and manage maximum numbers of fiber termination in a limited space.

It is normally installed in the way of wall mounting or pole mounting.

Features:

1. Water-proof design with IP65 Protection level

2. Integrated with splice cassette and cable management system

3. Manage fibers in a reasonable fiber radius condition

4. Easy to maintain and extend the capacity

5. Fiber bend radius control more than 40mm

6. Suitable for the fusion splice or mechanical splice

7. 24 ports cable entrance for FTTH drop cable

Specification

Packaging information

More pictures

                        overview fig.1

the box is total enclosure with keys,flip design,white color or gray color.

                     internal view fig. 2

the box with tray insdie, the upper layer is for distribution, and the downward is for fusion splice.

max. capacity: 24fibers fusion with protetive sleeve. it has enough redardant fiber storage space.

    distribution layer view  fig. 3

the upper layer can use LGX modular  for PLC splitter 1x1:16, or 2x1:8 plc splitter

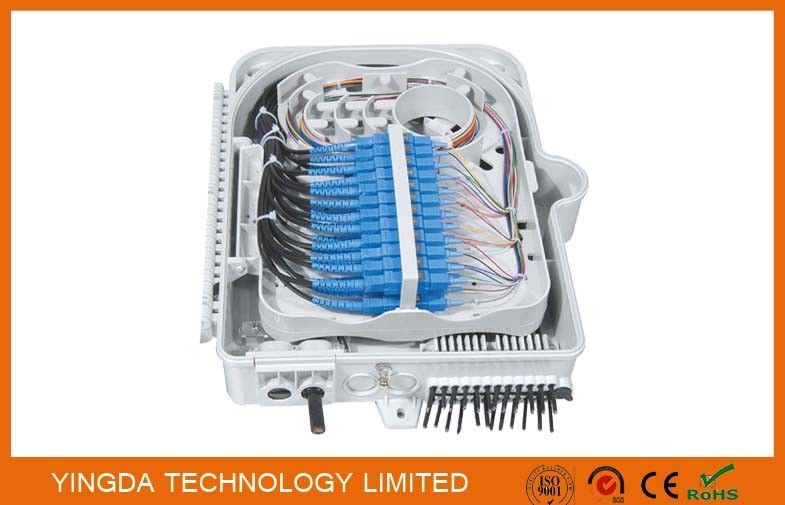

                    intenral view fig. 4

the upper layer can use adapter panel to hold max. 24pcs SC adpaters in 2lines

the box cable ports: 2 inlets, 24 outlets. The inlets can be cable gland IP65, or use mid-span access, then it can use for uncut cable, which ease cable installation and save time.

Termination Box Technical Parameters
