Indoor Floor Fiber Customer Terminal Box Metal Wall mount , ST Optical Distribution Box
برای نمونه و کوپن رایگان با من تماس بگیرید.
WhatsApp:0086 18588475571
ویچت: 0086 18588475571
اسکایپ: sales10@aixton.com
اگر نگرانی دارید، ما به صورت آنلاین 24 ساعته راهنمایی می کنیم.
xcolor | Gray | material | cold rolled steel |
---|---|---|---|
connector | SC/ST/FC/LC | fiber count | 16 cores |
size | 245*200*48mm | cable port | 3ports |
cable diameter | 5~10mm | ||
برجسته | ,,fiber optic junction box |

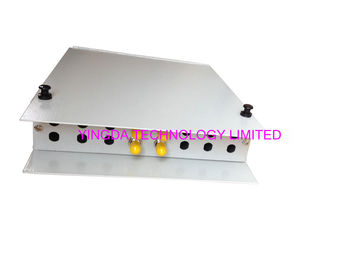

Indoor Floor Fiber Customer Terminal Box Metal Wall mount, ST Optical Distribution Box
Model:FTB-116
The series of FTTH Customer Terminal Box are used in the end termination of residential buildings and villas, to fix and splice with pigtails; Hinge and convenient press-pull button lock design; Wall mounted with mechanical protection function.
Features
- small size,light weight,pleasing in appearance
- wall mounted with mechanical protection function
- max fiber capacity 16 fibers,16 adapter SC/ST
- FC,SC,ST,LC adapters available
- hinge and convenient press-pull button lock design
- OEM,customer logo or customer package label or shipping box can be made.
Specifications
Model |
Size(H*W*D)mm |
Cable ports |
Max capacity of splice |
FTB116 |
245*200*48 |
3 holes |
16 cores |
Packing information
Model |
CTN qty/pc |
CTN size/cm |
G.w./kg |
FTB116 |
20 |
53*48*39 |
28.3 |

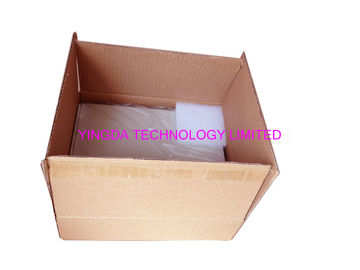

each box with a plastic bag and foam to protect the angels, then put into a box. Then 20pcs in a shipping box.
More products:

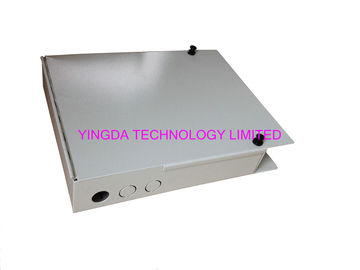

box is self-clip design, easy to open and close, fast installation

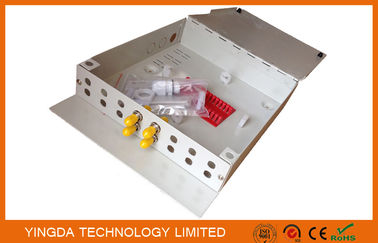

the adapter panel maximum install 16pieces ST/FC/SC/LC duplex adapters
all box equipped with a bag of accessories, include:
- expansion screws
- sleeve
- cable gland and fixtures
- sleeve holder
- nylon tie
- buffer tube
