PC+ABS Material Optical Terminal Box , Fiber Optic Closure With LGX Module SC/UPC Coupler
برای نمونه و کوپن رایگان با من تماس بگیرید.
WhatsApp:0086 18588475571
ویچت: 0086 18588475571
اسکایپ: sales10@aixton.com
اگر نگرانی دارید، ما به صورت آنلاین 24 ساعته راهنمایی می کنیم.
xmaterial | PC+ABS | Capacity | 16 single fiber |
---|---|---|---|
Adapter | SC | mini splitter | 1x16 PLC splitter module |
color | gray | size | 306*240*106mm |
connector insertion loss | <0.3dB | OME or sample | ok |
cable port | 2inlet,16outlet, express inputs | cable diameter | 3-16mm |
برجسته | ,,splitter distribution box |

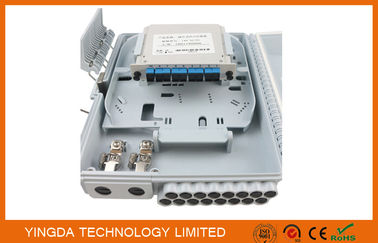

1:16 Splitter Optical Distribution Box, Joint Enclosure Plastic White With LGX Module SC/UPC Coupler
FTTH Distribution box is widely used as a termination point for feeder cable to connect with drop cable. It mix the fiber splicing ,splitting, distribution in one set, meanwhile it provides solid protection and menagemant for FTTX network. It can be used indoor or outdoor, with waterproof rubber seal around the box.
Features
- Wall mounted for indoor or out door, gray color, graceful style and good adaptability to environment.
- Made of high quality ABS+PC, anti-collision, flame retardant, resistance to impact.
- Anti-UV, wet-proof, water-proof, dust-proof, anti-aging.
- Fit for 1x4 , 1x8 and 1x16 PLC splitter assembly.
- It has 2 input ports and 16 output ports on the bottom and it is easy to install on the wall or pole.
- The rear tray is for splicing a fiber of feeder cable with PLC splitter and the front tray is for connecting subscriber's drop cable through adaptor plate or LGX modular on the tray.
- Cable, pigtails, patch cords are running through own path without disturbing each other, easy maintenance.
- Distribution panel can be flipped up, feeder cable can be placed in a cup-joint way, easy for maintenance and installation.
Specification
Item | Cable ports | Size(W*H*D) | Material | Max.fusion | Cable diameter |
FDB-0216G Fiber Terminal Box |
2ports in, 16ports out | 306*240*106mm | ABS+PC | 16cores | 16mm-3mm |
Packing Information:
Model | Dimension/ Outer Carton | G.W / outer Carton | QTY/outer Carton |
FDB-0216G | 600*350*520mm | 18kg/ctn | 10pcs/ctn |
More pictures
LGX module
2pcs clip design and hinged cover and bottom
LGX module position can be replaced by adapter panel with SC adapter or connectors
total is 2in,16out with waterproof rubber seal for each one, outdoor use, uncut cable ports
Welcome OEM or ODM
