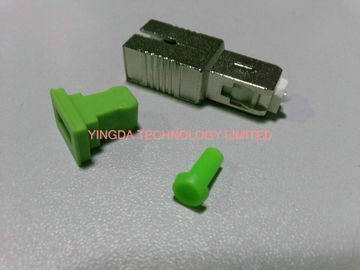

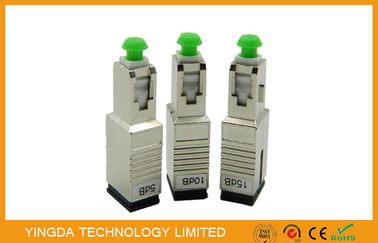

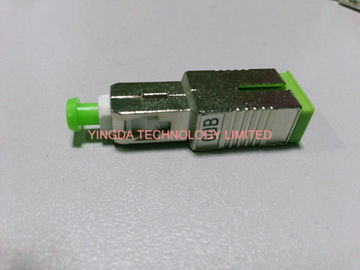

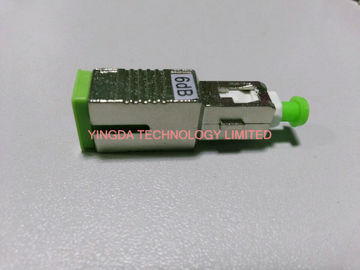

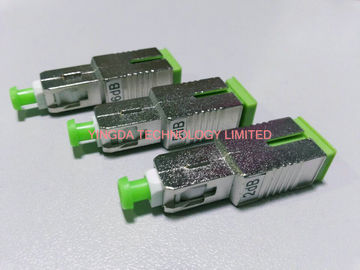

SC APC SM 1dB Fiber Optic Build Out Attenuator SC With Ceramic Zirconium Sleeve

محل منبع چین
نام تجاری YINGDA
گواهی ISO
شماره مدل ATTN-MU-01-B07
مقدار حداقل تعداد سفارش 100PCS
قیمت Negotiable
جزئیات بسته بندی 1 pc / plastoc bag
زمان تحویل 3-5 days
شرایط پرداخت T/T or western Union
قابلیت ارائه 50,000pcs per month

برای نمونه و کوپن رایگان با من تماس بگیرید.

WhatsApp:0086 18588475571

ویچت: 0086 18588475571

اسکایپ: sales10@aixton.com

اگر نگرانی دارید، ما به صورت آنلاین 24 ساعته راهنمایی می کنیم.

x
جزئیات محصول
Attenuation 1dB - 20dB fix test wavelength 1310nm, 1550nm
body material metal Additional loss 0.1dB
Working temperature -40~+85 (℃) Fiber optic type single-mode, multimode
industry standard Telcordia TA-NWT-001209 connector type SC/APC
dust cap color Green connector shape female to male attenuator
برجسته

build out attenuator,inline optical attenuator

,

inline optical attenuator

پیام بگذارید
توضیحات محصول

SC APC SM 1dB Attenuator, Fiber Optic Build Out Attenuator SC 1dB, SC Attenuator





Fiber Optic Female to Male fixed attenuator (F-M attenuator) is a kind of attenaution adjustable

attenuator which one end is connector type, the other end is adapter type (known as male to female) .



Male to female type fixed attenuator is mainly applied to the optical link optical power attenuation in

order to get the target required power. It mainly have types: SC, LC, FC, ST, MU.



According to the ferrule end face it can be divided into PC and APC inclined eight degrees,

attenuation is very selective, 0 ~ 30dB optional, wavelength 1250 to 1650nm.



Due to mature production process, high test and quality control, now you can order 1dB,2dB, 3dB,

5dB,7dB, 10dB,15dB, 20dB, 25dB, etc.



Features:

  1. High precision attenuation value
  2. Low additional loss
  3. High durability
  4. High reliability and stability
  5. Connector type: FC, SC, LC, ST, FC/SC or other type



Material:

  • metal Housing
  • Ceramic Zirconium Sleeve
  • dust cap color; green for APC, black for UPC



Specification:



Return Loss:

Less than 50 dB (SPC)



Less than 55 dB (UPC)



Less than 65 dB (APC)

Attenuation Accuracy:

+/-0.5 (1-10)



 +/-1.0 (11-30)

Polarization Dependent Loss:

Less than 0.2dB

Maximum Optical Input Power:

200mW

Operating Temp. Range:

-40 ~ 80°C





SC APC SM 1dB Fiber Optic Build Out Attenuator SC With Ceramic Zirconium Sleeve 0SC APC SM 1dB Fiber Optic Build Out Attenuator SC With Ceramic Zirconium Sleeve 1SC APC SM 1dB Fiber Optic Build Out Attenuator SC With Ceramic Zirconium Sleeve 2SC APC SM 1dB Fiber Optic Build Out Attenuator SC With Ceramic Zirconium Sleeve 3

SC APC SM 1dB Fiber Optic Build Out Attenuator SC With Ceramic Zirconium Sleeve 4
