Square Fiber Optic Adapter SC SM / MM Simplex Blue Black Fiber Optic Coupler

مقدار تولیدی:	100 PCS
قیمت:	0.04USD-2.15USD
بسته بندی استاندارد:	1 pc / bag or 10 pc/ blister box
Delivery period:	3 days
روش پرداخت:	T/T or western Union
ظرفیت تامین:	50,000pcs per month

اطلاعات دقیق

توضیحات محصول

امتیازها و نظرات

اطلاعات دقیق

محل منبع

نام تجاری

YINGDA

گواهی

ISO,SGS

Model Number

ADB-SC-SQ

material:

Metal, Plastic

house color:

blue, black, gray

shape:

square

type:

bare fiber optic adapter

weight:

Fiber type:

single-mode,multimode

polish methold:

UPC APC

insertion loss:

<0.2dB

نام محصول:

کابل mpo به mpo، کابل mpo به lc، کانکتور نوری mtp، کاست mtp

برجسته کردن:

,

bare fiber adapter

توضیحات محصول

Square Fiber Optic Adapter SC SM / MM Simplex Blue Black Fiber Optic Coupler

Description

The optical fiber is connected through the opening sleeve inside adapter, in order to ensure the

highest performance of optical fiber jumper. In order to fixed on various panel, a variety of fixed

flange adapters design and manufactured.

SC Square Type Bare Fiber Adapter can link bared optic and light source ,testing equipment,

light appearance etc,and the products used for test appearance and temporary conjunction between

fiber optics extensively (repair fiber optic cable urgently). It have the bare optical fiber inside one side,

the other side is a connector that can plug into the equipment.

Bare fiber adapter is a kind of professional auxiliary tool for optical fiber test, especially for fiber

emergency repair and temporary connection.

Feature

Simplex and quickly interconnect
Low insertion loss
Good repeatability and exchangeability good
Stabilize the credibility
Interchangeable connector heads available
SC FC LC ST connectors available
Cutomer package OK
10PCS/ blister box, save shipping cost

Application

Testing fiber on the reel
Optical fiber through connection test
Two-way communication during optical-fiber cable installation and maintenance
First-aid repair,temporary connection and testing on optical fiber project.

Specification

Shape	Square / Round
Connector	FC/PC, SC/PC, ST/PC, LC/PC
Applicable fiber	SM & MM
Ferrule diameter	123-127 um
Ferrule outder diameter	2.499mm 1.249mm
Cable diameter	250um & 900um
Insertion Loss	≤0.20dB
Repeat ability	＜0.2dB
Tensile strength	100g
Plug time	>1000 times
Operating Temperature	-40 ~+85℃
Size	Length:40mm, diameter:30mm

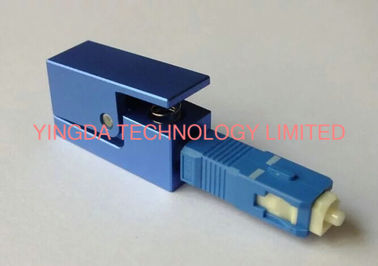

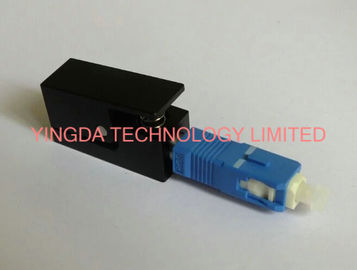

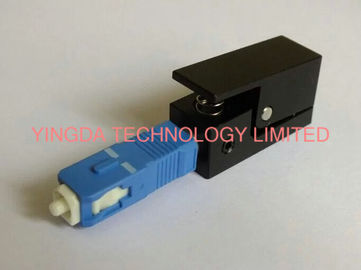

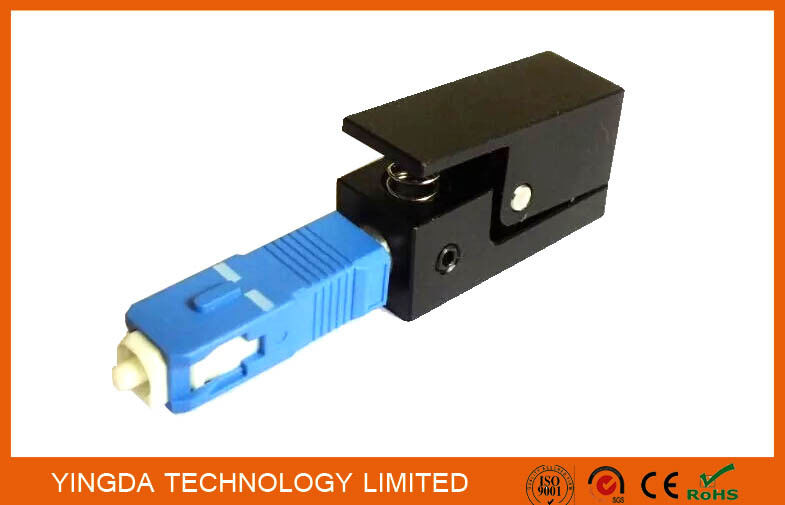

Bare Fiber Adapter Gray Metal Parts Square Type SC/UPC --- Blue House:

Square Fiber Optic Adapter SC SM / MM Simplex Blue Black Fiber Optic Coupler 0

Bare Fiber Adapter Gray Metal Parts Square Type SC/APC -- Green House :

Square Fiber Optic Adapter SC SM / MM Simplex Blue Black Fiber Optic Coupler 2
