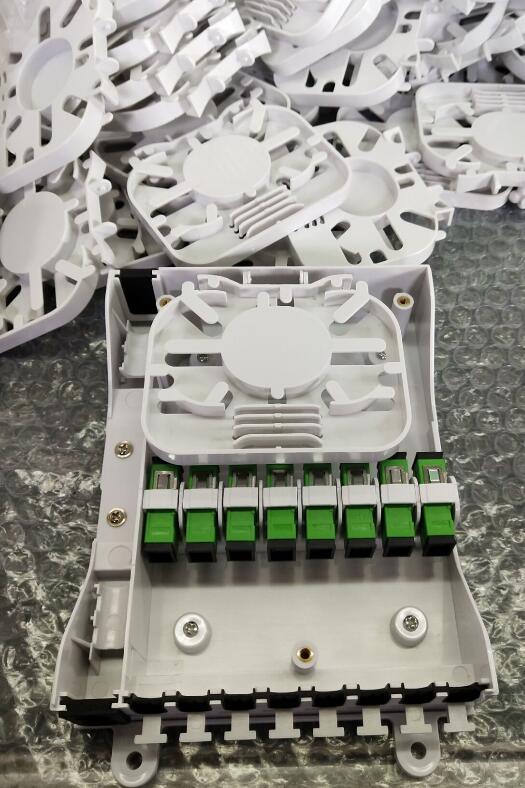

آنتونیوجعبه فیبر نوری خوب، کیفیت خوب، بسته بندی خوب، خدمات خوب، منتظر سفارشات جدید من باشید. با تشکر
-
چاتایکابا تشکر از تحویل سریع شما در هر زمان، با همان کیفیت، همیشه با قیمت از من حمایت کنید، از حمایت ویژه هر بار از ما سپاسگزاریم. مثل شرکت شما، به زودی شما را در چین می بینم
-
کارلا لوئیسسوفی عزیز خیلی وقت است که صدای شما بسیار شیرین است و همیشه راه حل کامل و پاسخ فوری به ما ارائه می دهد و به ما کمک می کند تا تجارت بیشتر و بیشتری داشته باشیم، با تشکر
PDLC / DLC GYFJH 4 Core Fiber Optic Patch Cord LC Outdoor Use
برای نمونه و کوپن رایگان با من تماس بگیرید.
WhatsApp:0086 18588475571
ویچت: 0086 18588475571
اسکایپ: sales10@aixton.com
اگر نگرانی دارید، ما به صورت آنلاین 24 ساعته راهنمایی می کنیم.
xapplication | LTE,FTTA | cable | outoor waterproof |
---|---|---|---|
connector | LC | fiber count | 2 cores |
logo | OEM | label | OEM |
برجسته | fiber optic patch cable,fiber optic jumper,fiber optic jumper |
PDLC / DLC GYFJH 4 Core Fiber Optic Patch Cord LC Outdoor Use
DLC Optical Cable Assembly Waterproof Outdoor Protected Cable is standard size for Duplex LC
Connectors, and the outer housing with metal protective device. The connecting is safe and reliable.
Also have the functions of waterproof, dustproof. This patch cords widely used in FTTA, Base station,
and the outdoor waterproof condition.
1. GYFJH cable
1.1 Structure
1.2 Features
The PDLC Waterproof patch cord used for outdoor RRU transmitting optical signal and remote fiber
feeder etc;
1. Standard Duplex LC connector, well connected with standard LC adaptor
2. Available Single mode and Multimode
3. IP67 protection, salt-mist proof, humidity proof, dust proof
4. Low insertion/return loss, steady optical transmitting.
5. Light weight, waterproof, dustproof, moisture proof, Metal hard housing.
1.3 Applications
1. Widely used in FTTA & FTTH
2. Used for 3G 4G base station
3. BBU, RRU, RRH, LTE
1.4 Cable Parameters
Fiber count |
Cable dimension |
Cable weight |
Tensile/N |
Crush N/100mm |
Min. Bend radius/mm |
Range of temperature/°C |
|||
Mm |
Kg/km |
Long term |
Short term |
Long term |
Short term |
Dynamic |
Static |
||
2 |
7 |
42.3 |
200 |
400 |
1100 |
2200 |
20D |
10D |
-100 |
Note: |
|||||||||
1. All the values in the table,which are reference only, are subject to change without notice. |
|||||||||
2. The cable dimension and weight are subject to the simplex cable of 2.0mm outer diameter; |
|||||||||
3. D is outer diameter of the round cable. |
1.5 Connector Specification
Item |
Parameter |
Connector |
DLC/UPC, PDLC |
Insertion loss |
≤0.3dB |
Return loss |
≥50dB |
Fiber mode |
Single mode,9/125um |
Operating wavelength |
1310/1550nm |
Test wavelength |
1310/1550nm |
Repeat ability |
≤0.1dB |
Interchange ability |
≤0.2dB |
Durability |
≤0.2dB |
Fiber length |
1m,2m.. Any length optional |
Length and tolerance |
10cm |
Operating temperature |
-40~+85°C |
Storage temperature |
-40~+85°C |
