فیبر نوری فیبر نوری کابل جعبه تقسیم 48 هسته 510 * 218mm ابعاد

Dome Mechanical Fiber Optic Cable Junction Box 48 Cores 510 * 218mm Dimension
Dome Mechanical Fiber Optic Cable Junction Box 48 Cores 510 * 218mm Dimension Dome Mechanical Fiber Optic Cable Junction Box 48 Cores 510 * 218mm Dimension Dome Mechanical Fiber Optic Cable Junction Box 48 Cores 510 * 218mm Dimension Dome Mechanical Fiber Optic Cable Junction Box 48 Cores 510 * 218mm Dimension

تصویر بزرگ :  فیبر نوری فیبر نوری کابل جعبه تقسیم 48 هسته 510 * 218mm ابعاد

جزئیات محصول:

Place of Origin: CHINA
نام تجاری: YINGDA
گواهی: ISO
Model Number: GJS-2001

پرداخت:

Minimum Order Quantity: 50PCS
قیمت: Negotiable
Packaging Details: 1pc / box, 6pcs / carton box
Delivery Time: 7days after get payment
Payment Terms: T/T, MoneyGram, Western Union
توضیحات محصول جزئیات
ماده: کامپیوتر رنگ: سیاه
مهر: مهر و موم مکانیکی پورت های کابل: 4 pprts
قطر کابل: 21mm-40mm PLC splitter: 1x16، 1x8، 1x4، 1x2 پاره پاره PLC
آداپتور: حداکثر SC 18 پیکسل ابعاد: 510 * 218 میلیمتر
مدل مشتری: خوب نمونه: خوب
برجسته:

fiber optic cable junction box

,

fiber optic cable joint box

Fiber Optic Splice Closure PLC Splitter 1x8 1x16, 48 Cores Fiber Optic Splice Enclosure Dome Mechanical





Model: GJS-2001



Gjs-2001 Splitting and Wiring fiber optical splice closure not only have the butt-joint and branching function, but also have the function of optical cable splitting and wiring, suitable for the installation

of main optical cables and drop cables with different diameters.



Features:

  1. The closure adopts mechanical sealing structure. There is one oval shaped cable port entrances in base. The big entrance is used for the sealing of uncut straight-through fiber cable, the small ports are used for branch fiber cable and drop cable.
  2. To adopt engineering PC plastic with high-strength to make the closure has longer life time and excellent sealing performance.
  3. It can be installed one 1:16 blockless PLC splitter in max. One 1:16 or two 1:8 bare PLC splitter.
  4. There are different drop cable elements to be chosen (Φ5,2*3). Max. 18pcs drop cable input/output (special type Can be customized).
  5. The patented sealing structure keep good sealing performance after re-entry and re-using.
  6. It could save the installation time and improve work efficiently.



Applications:

  • Suitable for bunchy & ribbon fibers
  • Aerial, underground, wall-mounting, hand hole-mounting and duct-mounting
  • FTTH optical fiber distribution



Specifications



Type Splice Tray Capacity Wiring mdule Qty & Max. Qty Splitter Tray Max. Type of Adaptor & Max. Qty Max. Capacity Dimension
GJS-2001 I(Bunchy) 5 pcs (12-24f per tray) None 1 None 120F 510*218mm
GJS-2001 II(Bunchy) 2 pcs (12-24f per tray) 1 1 SC 18 pcs 48F 510*218mm



More pictures:



فیبر نوری فیبر نوری کابل جعبه تقسیم 48 هسته 510 * 218mm ابعاد 0

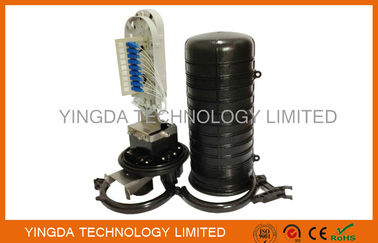

Full Overview of GJS-2001 cable terminatoin box with SC adapter panel, 1x8 PLC splitter SC connectors, dome (vertical) type, mechanical sealing, PC material

فیبر نوری فیبر نوری کابل جعبه تقسیم 48 هسته 510 * 218mm ابعاد 1

top view of the splice closure GJS-2001, total closed,with good sealing, and high strength PC material



فیبر نوری فیبر نوری کابل جعبه تقسیم 48 هسته 510 * 218mm ابعاد 2

BOTTOM BASE view of the splice closure GJS-2001:

2big ports, cable diameter: 8mm - 21mm, 2 small ports, cable diameter: 8 mm -40mmفیبر نوری فیبر نوری کابل جعبه تقسیم 48 هسته 510 * 218mm ابعاد 3

the first layer of the splice enclosure is for distribution. The clsoure base with SC adapter panel, max can hold 18 pcs SC adaptors; also can hold 2 pieces x 1:8 micro splitter or 1 piece 1x 16 micro plc splitter 900um

فیبر نوری فیبر نوری کابل جعبه تقسیم 48 هسته 510 * 218mm ابعاد 4

SC adaptor panel is fixed on the fiber splice tray with screws, it is metal material, can take it off when needed, stable performance, easy to operate.

فیبر نوری فیبر نوری کابل جعبه تقسیم 48 هسته 510 * 218mm ابعاد 5

this second layer of the splice tray is for splitting, the splitter stainless tube is fixed on the protective sleeve holder. this tray have enough storage space for redundant optical fiber.



فیبر نوری فیبر نوری کابل جعبه تقسیم 48 هسته 510 * 218mm ابعاد 6

on the splice closure box, there is a place to put the lables, which indicatebelow information (for example):

model no.: GJS-2001

product name: fiber optic splice closure

max capacity: 24cores

prouction date: 02/10/2013





Standard accessories:

فیبر نوری فیبر نوری کابل جعبه تقسیم 48 هسته 510 * 218mm ابعاد 7

English installation manual 1 pc
Plastic Special wrench 1 sets
Metal Special wrench 1 pc
Sand paper 1 pc
Grounding wire 1 pc
Labeling mark 1 pc
Heat shrinkable protection sleeve 12 pcs (on capacity request)
Buffer tube 1 pc
Wall mounting kits 1 sets
Insulation tape 1 roll
Desiccant 1 bag
Seal tape 1 roll
