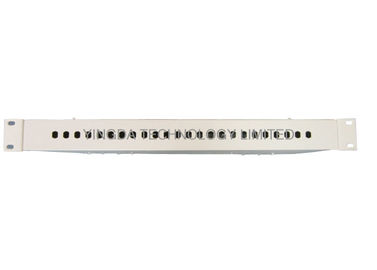

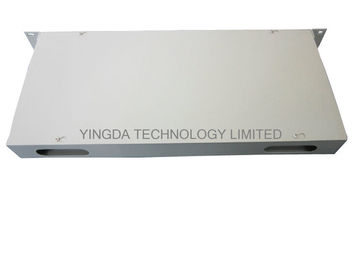

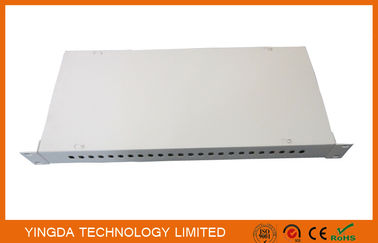

Optical Distribution Frame Rack Mounted 24 Cores FC SC LC ST Fiber Optic Patch Panel

Name: Optical Distribution Frame Rack Mounted 24 Cores FC SC LC ST Fiber Optic Patch Panel
Brand: YINGDA TECHNOLOGY LIMITED
SKU: GPRP-FC24-D
Price: 52.00 USD
Availability: InStock

نام تجاری:	YINGDA
شماره مدل:	GPRP-FC24-D
مقدار تولیدی:	50 pcs
قیمت:	قابل مذاکره

اطلاعات دقیق

توضیحات محصول

اطلاعات دقیق

محل منبع:

چین

گواهی:

ISO

material:

cold rolled steel

thickness:

0.8mm,1.0mm, 1.2mm

capacity:

24 cores

connector port:

FC or ST ( round port )

application:

19" ODF optical distribution frame

installatino method:

rack mount

color:

white, black

dimension:

480*200*1U mm

Packaging Details:

1 pc / box, 5 pcs / carton box

برجسته کردن:

,

sliding patch panel

توضیحات محصول

Optical Distribution Frame Rack Mounted 24 Cores FC SC LC ST Fiber Optic Patch Panel

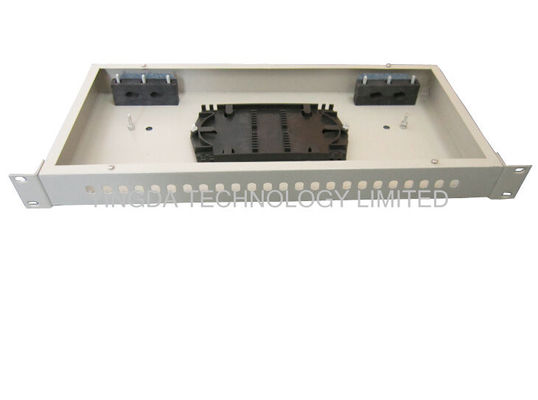

19" Rack mount patch panel is mainly used for connection and storage between optical fiber cable

and pigtail in equipment, it can be wall mounted and floor-standing installation. The box body is made

of high quality cold rolled steel,electrostatic spraying, the appearance is beautiful, and the operation

is convenient.

Fiber optic patch panel can install FC SC LC ST adapters, and max capacity can be 12 cores, 24

cores, 48 cores, 72 cores or 96 cores on customer request by 1U, 2U, 3U, 4U. It is smart design to

supply firm protection for optical cable terminal connection and optical fiber adapter installation.

It is a combineof termination, protection, connection, management of fiber optic cables.

Features

Flexible standard 19” cabinet installation
Adapter FC SC ST and LC available
Complete bending radii protection
Sufficient spooling area for redundant fibers
Enough space for fibers and pigtails to enhance fibers protection, pigtails protection and connections.

Specification

ambient temperature	－25℃～＋40℃
relative humidity	≤85%(＋30℃)
atmospheric pressure	70kPa～106kPa
Insulation resistance	fiber optic cable terminal and cable metal strength member, fiber optic cable metal components itself, fiber optic cable metal components and the ground, the insulation resistance should > 2 x 104MΩ.
Dielectric strength	fiber optic cable terminal and cable metal strength member, fiber optic cable metal components itself, fiber optic cable metal components and the ground, under 15kV voltage for 1min without breakdown, no arcing phenomena.

Order information

Model	Dimension (mm)	Max Capacity (cores)
GPRP-SC12	480×200×1U	12
GPRP-SC24	480×200×1U	24
GPRP-SC48	480×200×2U	48
GPRP-FC12	480×200×1U	12
GPRP-FC24	480×200×1U	24
GPRP-FC48	480×200×2U	48
GPRP-ST12	480×200×1U	12
GPRP-ST24	480×200×1U	24
GPRP-ST48	480×200×2U	48

When order, pls tell us below details:

1. Complete assembly with adapter and pigtail OR empty panel optional

2. Box color: Black , White

Optical Distribution Frame Rack Mounted 24 Cores FC SC LC ST Fiber Optic Patch Panel 0
