SC / UPC 200 Meters Fiber Optic Patch Cord FRP Square FTTH Drop Fiber Optic Jumper

اطلاعات پایه
Place of Origin: CHINA
نام تجاری: YINGDA
گواهی: ISO,SGS,ROHS
Model Number: FHPC-SCU-01-F8F-A1B-200
Minimum Order Quantity: 100PCS
قیمت: Negotiable
Packaging Details: 1 piece / bag
اطلاعات تکمیلی
Application: FTTH indoor wiring Connector: SC / UPC
fiber count: 1 core fiber type: G657A1
Cable sheath: LSZH Cable length: 200 meters
Cable color: black / white insertion loss: < 0.3dB
Cable strength member: FRP drop cable diameter: 2*3.0mm

توضیحات محصول


SC / UPC 200 Meters Fiber Optic Patch Cord FRP Square FTTH Drop Fiber Optic Jumper

Feature:

  1. No special assembling tool.
  2. No epoxy required
  3. Easy for assembling with mechanical splice and no polishing
  4. Precision mechanical alignment insures low loss
  5. Fiber can be re-seated


Applications

  • CATV
  • Telecommunication networks
  • Active device termination
  • Metro
  • Local Area Networks (LANs)
  • Data processing networks
  • Test equipment
  • Premise installations
  • Wide Area Networks (WANs)


Indoor cable :

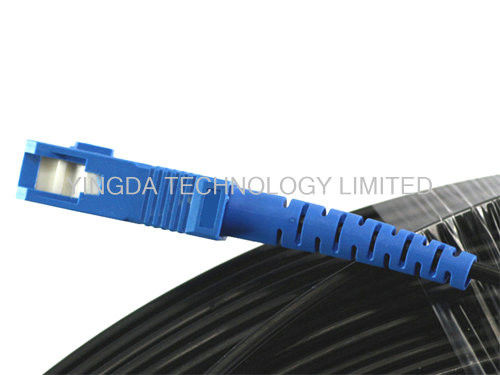

SC / UPC 200 Meters Fiber Optic Patch Cord FRP Square FTTH Drop Fiber Optic Jumper
Outdoor cable :

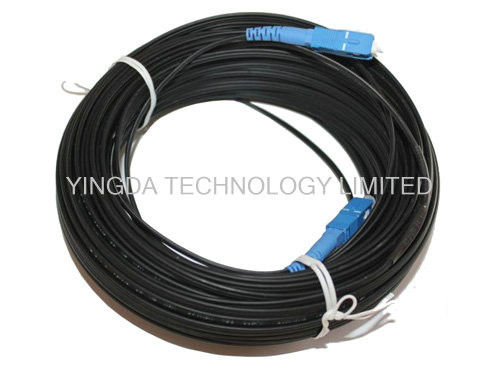

SC / UPC 200 Meters Fiber Optic Patch Cord FRP Square FTTH Drop Fiber Optic Jumper

Fiber Parameters


No.

Items

Unit

Specification

Specification

G.652D

G.657A1

1

Mode Field Diameter

1310nm



9.2±0.4

9.0±0.4

1550nm



10.4±0.5

10.1±0.5

2

Cladding Diameter

μm

124.8±0.7

124.8±0.7

3

Cladding Non-Circularity

%

≤0.7

≤0.7

4

Core-Cladding Concentricity Error

μm

≤0.5

≤0.5

5

Coating Diameter

μm

245±5

245±5

6

Coating Non-Circularity

%

≤6.0

≤6.0

7

Cladding-Coating Concentricity Error

μm

≤12.0

≤12.0

8

Cable Cutoff Wavelength

nm

λcc≤1260

λcc≤1260

9

Attenuation(max.)

1310nm

dB/km

≤0.4

≤0.35

1550nm

dB/km

≤0.3

≤0.21

10

Macro-Bending Loss

1turn×10mm radius @1550nm

dB

/

≤0.75

1turn×10mm radius @1625nm

dB

/

≤1.5


Cable Parameters


Items

Specifications

Fiber Count

2

Colored Coating Fiber

Dimension

250±15μm

Color

white



Dimension

(2.0±0.1)mm×(5.1±0.1)mm

Jacket

Material

LSZH



Color

Black

Strength Member

FRP& (Steel Wire)


Patch cord parameters


Item

Singlemode

Multimode

Insertion loss

<=0.3dB

<=0.3dB

Return loss

>=50dB

>=40dB

Operating temperature

-40 ~+85 °C

Ceramic ferrule spec

125.5um concentricity
deviation<=1μm

127um concentricity
deviation<=3μm



9/125 μm

50/125 μm, 62.5/125μm

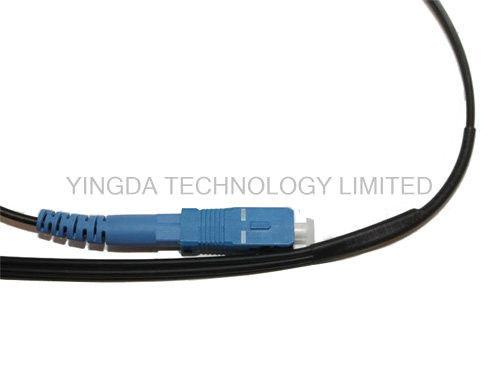

SC / UPC 200 Meters Fiber Optic Patch Cord FRP Square FTTH Drop Fiber Optic Jumper
Order information

FHPC-XXX-XX-XXX-XXX-XX
        1 - 2  - 3 4 - 5 6 - 7


FHPC

Connector
type


Fiber
count

Cable
type

Strength
member

Fiber type

Cable
color

Cable
Length

FH=ftth

1

2

3

4

5

6

7

Pc=patch
cord

SCU=SC/UPC
SCA=SC/APC
LCU=LC/UPC
....

01=1core
02=2core
04=4core
....

F8=Figure 8
SF=self-supporting

F=FRP
S=steel

5D=G.652D
A1=G.657A1
A2=G.657A2


W=white
B=Black
Y=yellow

01=1m
02=2m
...
10=10m
...


Mass Production:

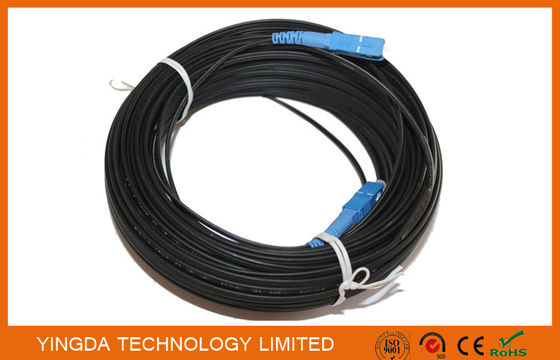

SC / UPC 200 Meters Fiber Optic Patch Cord FRP Square FTTH Drop Fiber Optic JumperSC / UPC 200 Meters Fiber Optic Patch Cord FRP Square FTTH Drop Fiber Optic JumperSC / UPC 200 Meters Fiber Optic Patch Cord FRP Square FTTH Drop Fiber Optic Jumper
