| Place of Origin: | China |
|---|---|
| نام تجاری: | YINGDA |
| گواهی: | ISO |
| Model Number: | YD-FS-SCA-09 |
| Minimum Order Quantity: | 100 PCS |
| قیمت: | Negotiable |
| Packaging Details: | 5pcs / blister box,1000pcs / carton box |
| Delivery Time: | 3-5 working days after get payment |
| Payment Terms: | T/T or western Union |
| Supply Ability: | 10,000pcs per day |
| fiber type: | SMF-28e corning fiber | cable type: | 0.9,2.0,3.0mm cable |
|---|---|---|---|
| connector: | SC / APC, LC FC ST available | cable mode: | single mode OS1 |
| Connector house: | green | insertion loss: | <0.3dB |
| Tools: | fusion splicer machine, cotton, alcohol,fiber cleaver | application: | FTTH |
| user manual: | Chinese or English | sample: | ok |

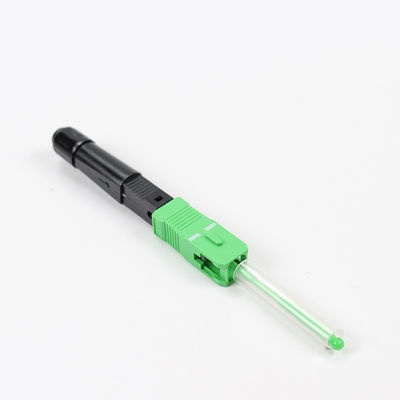

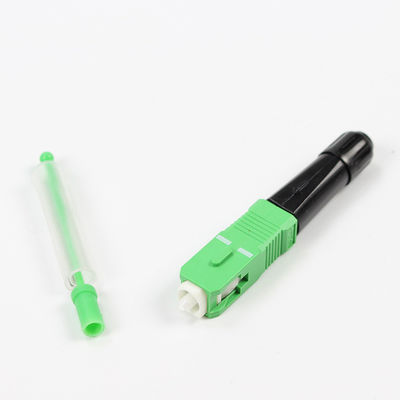

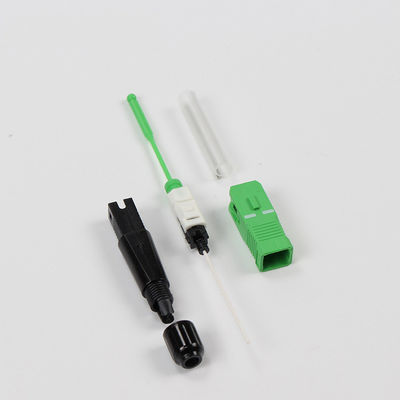

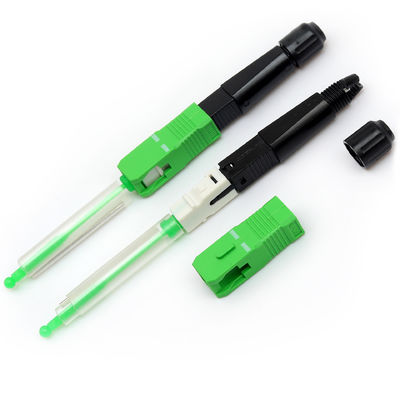

FTTH SC FC FIC Field Installable Connector For Fusion Splicer Machine
Description
SC/APC Fusion splice-on connector is is optical fiber type quick connector, but its splicing point
inside the connector end, equivalently eliminate the pigtails when splicing.The advantage is no
need additional protection after splice, such as splice tray,splice closure,distribution box.In contract
to the design of mechanical splice connector, it save V-groove mechanical connector maintenance
and operation cost and durable, which overturns the concept that high cost of splice machine
and do not apply to FTTH construction.
Application
Features
Specification
|
Item |
Parameter |
|
Cable |
3.1*2.0mm drop cable |
|
Fiber diameter |
125um(G657A2 bare fiber) |
|
Tight buffer diameter |
250um |
|
Fiber type |
Single mode OS1 9/125um |
|
Insertion loss |
≤0.3dB |
|
Return loss |
≤-50dB |
|
Bare fiber solid tightness |
＞250g |
|
Working temperature |
-40℃-+80℃ |
|
Tensible strength |
60N(5kgs for 2mins) |
|
Drop test |
4 meters high cement floor direction at a time,in total 3times |
* Please use the customized FTTH melting machine
* Recommended consumable:
Keep a supply of the following items
Order information
FS-XXX-XX-XXX
1- 2 -34
|
FS= fusion splice |
1 |
2 |
3 |
4 |
|
Connector type |
Fiber inside |
Applicable cable diameter |
House color |
|
|
SCU=SC/UPC SCA=SC/APC FCU=FC/UPC |
09=0.9mm 25=250um bare fiber |
09=0.9mm 20=2.0mm 30=3.0mm |
B=blue B=black G=green
|
Package information
