Full Armored Outdoor Optic Fiber Patch Cord DLC 2 Core Optical Cable Assembly

Name: Full Armored Outdoor Optic Fiber Patch Cord DLC 2 Core Optical Cable Assembly
Brand: YINGDA TECHNOLOGY LIMITED
SKU: LC duplex patch lead
Price: 14.36 USD
Availability: InStock

نام تجاری:	YINGDA
شماره مدل:	LC duplex patch lead
مقدار تولیدی:	10pcs
قیمت:	0.36USD-30USD

اطلاعات دقیق

توضیحات محصول

اطلاعات دقیق

محل منبع:

چین

گواهی:

ISO SGS CE ROHS

application:

FTTA outoor waterproof

cable:

base station cable 5.0mm GYFJH

cable jacket:

black LSZH

connector:

LC FC ST SC all optional

fiber count:

2 fibers

length:

on customer request

logo:

OEM

label:

OEM

نام محصول:

کابل فیبر نوری، پچ کابل فیبر نوری، پچ کورد فیبر نوری، جامپر فیبر نوری، کابل جامپر فیبر نوری، پچ کورد

Packaging Details:

1pc/pack

برجسته کردن:

fiber optic patch cable,fiber optic jumper

fiber optic jumper

توضیحات محصول

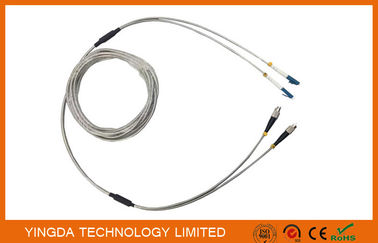

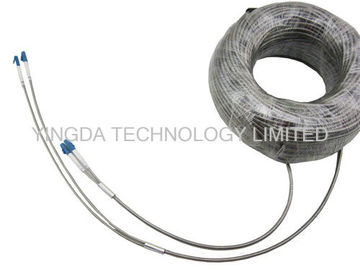

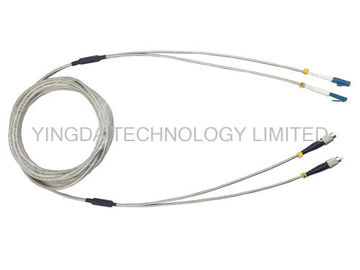

Full Armored Outdoor Optic Fiber Patch Cord DLC 2 Core Optical Cable Assembly

1. GYFJH Cable

Full Armored Outdoor Optic Fiber Patch Cord DLC 2 Core Optical Cable Assembly 0

1.1 Structure:

Full Armored Outdoor Optic Fiber Patch Cord DLC 2 Core Optical Cable Assembly 1

FTTA Armored Outdoor Fiber Patch cord is used for Fiber to the Antenna, and Duplex Base Station

Far Transmission Fiber Optic Patch Cable is kind of Indoor/Outdoor patch cord, built on LSZH cables

with 7.0mm or 4.8mm diameter, with water blocking aramid yarns and UV resistant black out jacket. IH

produces FULL ARMOURED patchcord for harsh environment , especially for rodent resistance and

bird resistance.

Features

Good mechanical and environmental characteristics;
Flame retardant characteristics meet the requirements of relevant standards;
The mechanical characteristics of jacket meet the requirements of relevant standards;
Soft, flexible, water blocked, UV resistant, easy to lay and splice, and with big capacity data
transmission;
Meet various requirements of market and clients;

Applications

BBU, RRU, RRH, LTE
Indoor/outdoor application
FTTH, FTTA application
Mainly used in wireless base station horizontal and vertical cabling

Connector specification

Item	Parameter
Connector	DLC/UPC
Insertion loss	≤0.3dB
Return loss	≥35dB
Fiber mode	Multi-mode,50/125um
Operating wavelength	850nm,1310nm
Test wavelength	850nm,1310nm
Repeat ability	≤0.1dB
Interchange ability	≤0.2dB
Durability	≤0.2dB
Fiber length	1m,2m.. Any length optional
Length and tolerance	10cm
Operating temperature	-40~+85°C
Storage temperature	-40~+85°C

Full Armored Outdoor Optic Fiber Patch Cord DLC 2 Core Optical Cable Assembly 2
