Fujikura CT-30 CT-30A Series High Precision Fiber Cleaver , Fiber Optic Cable Stripper

Name: Fujikura CT-30 CT-30A Series High Precision Fiber Cleaver , Fiber Optic Cable Stripper
Brand: YINGDA TECHNOLOGY LIMITED
SKU: CT-30A
Price: 29.18 USD
Availability: InStock

نام تجاری:	Fujikura
شماره مدل:	CT-30A
مقدار تولیدی:	1 pc
قیمت:	قابل مذاکره
زمان تحویل:	5 days after payment
شرایط پرداخت:	Western Union, T/T

اطلاعات دقیق

توضیحات محصول

اطلاعات دقیق

محل منبع:

چین

گواهی:

ISO SGS ROHS

package:

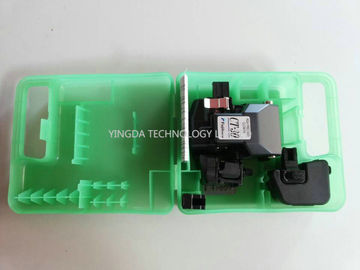

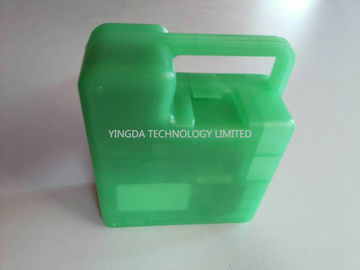

green plastic box

color:

black

Packaging Details:

1pcs / set

Supply Ability:

5,000 pcs per month

برجسته کردن:

,

fiber polishing film

توضیحات محصول

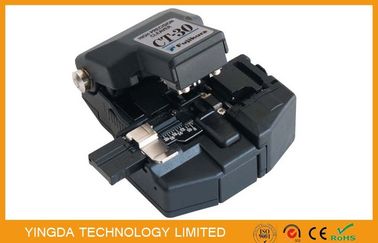

Fujikura CT-30 CT-30A Series High Precision Fiber Cleaver, Fiber Optic Cable Stripper

The CT-30 Cleaver sets the standard for portable, reliable and ease of use. Available
for either single fiber or ribbon splicing (up to 12 fiber ribbons) applications, the CT-30

Cleavers are compatible with all AFL Telecommunications fusion splicers. Designed for

excellent portability, the CT-30 is equally at home in a splicing van or in a bucket truck

and is ideal for FTTx applications. The 16-position blade yields 48,000 single-fiber cleaves,

or 4,000 12-fiber ribbon cleaves before requiring replacement, and the built-in scrap

collector conveniently stores fiber shards until they can be safely discarded.

Technical specifications:

Fiber: silicon optical fiber, optical fiber
Cutting naked fiber diameter: 125 m
Optical fiber coating diameter: 250~900 M
Cutting angle: 0.5 degrees (single core fiber)
Cutting blade life: 48000 times (1000 times* 16 times rotate the blade* 3 height)
Size / weight: 102W * 82D * 46H (mm) / 210g (contain large capacity optical fiber residue collector)

Application

Telecommunications Engineering and repair
CATV engineering and maintenance
Optical cable manufacturers

Specification

Applicable fibers	Silica optical fiber
Bare fiber diameter	125mm
Cleaving angle	0.5 degrees with single fiber
Blade life	48,000 fibers (1,000 fibers x 3 height x 16 positions)
Blade positions	3 height and 16 rotating positions
Dimensions	102W x 82D x 46H (mm) with FC-02 and FDB-03
Weight	210g with FC-02 and FDB-03

Order information

Model	Cladding diameter	Fiber count	Cleaving length	Fiber placing
CT-30	125mm	Up to 12 fiber	10mm	Fiber holder
CT-30A	125mm	Single fiber	6 to 20mm	Fiber plate (AD-30A)
CT-30B	125mm	Single fiber	16mm	Fiber plat

Fujikura CT-30 CT-30A Series High Precision Fiber Cleaver , Fiber Optic Cable Stripper 0
