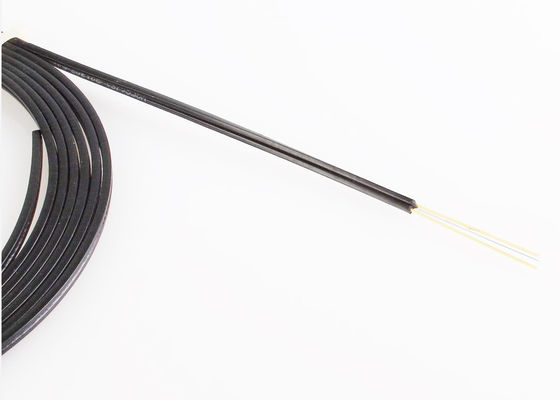

FRP Glass Fiber Optic FTTH Drop Wire Cable G657A SM 2 Fibers GJXFH Black
برای نمونه و کوپن رایگان با من تماس بگیرید.
WhatsApp:0086 18588475571
ویچت: 0086 18588475571
اسکایپ: sales10@aixton.com
اگر نگرانی دارید، ما به صورت آنلاین 24 ساعته راهنمایی می کنیم.
xfiber count | 2 Cores | strength member | FRP non-metallic |
---|---|---|---|

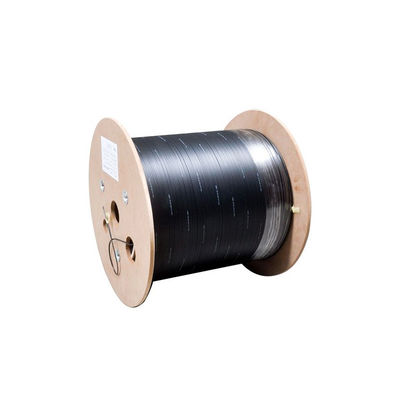

pack | 2KM / drum(reel) or 3km/ drum, 4km/drum | Name | butterfly indoor drop cable |
cable color | black | cable shape | figure 8 |

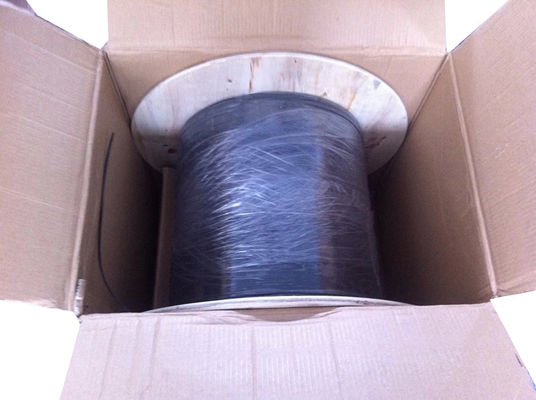

Fiber type | G657A1 G657A2 G652D | Package | wooden drum and carton box |
outer jacket | LSZH | ||
برجسته | ,,fiber optic drop cable |
Bow-type FRP Glass Fiber Optic FTTH Drop Cable G657A SM 2Fibers GJXFH Black
Description

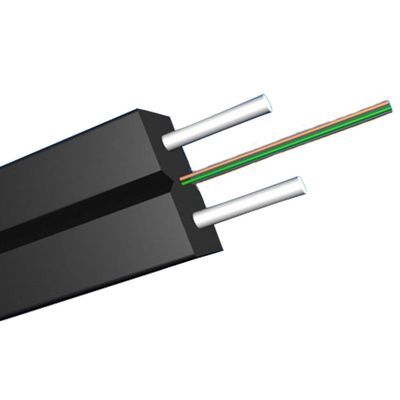

Figure 8 fiber optic drop cable is a cable designed specifically for FTTH. It adopts double reinforcement
figure 8 structure, the optical fiber unit is positioned in the centre ,two parallel fiber reinforced plastics
FRP are placed at the two sides ,then the cable is completed with a black or color LSZH Sheath. This
drop cable can directly drop into the building household from the fiber optic splice closure. Particularly
it suitable to use together with fast connector(field installation connector), mechanical splice; also it
can be separate the suspended fiber core and then splice with others.
Features
- Special high bending radius fiber, provides wider bandwidth, enhance network transmission
- characteristics, easily reached 100M /S, realize broadband, television and telephone triple
- play.
- Two parallel reinforcement members ensure fiber optic cable with good compression perform
- ance, protect the fiber.
- Simple structure, light weight, strong practicability.
- The unique groove design, easy separation, convenient connection, simplify the installation
- and maintenance.
- Low smoke halogen-free flame retardant sheath, environmental protection
Application:
◆ Used as access building cable
◆ Used in indoor cabling especially used for FTTH

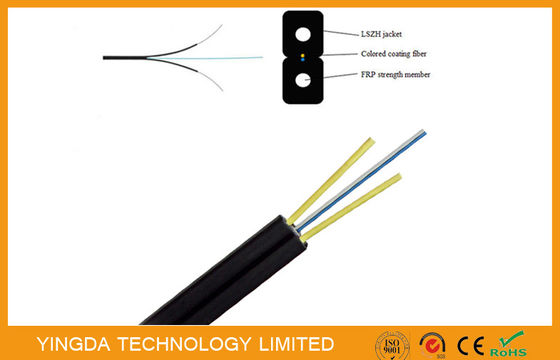

Cable structure:
Technical parameters
Cable code |
Fiber |
Cable |
Cable |
Tensile(N) |
Crush |
Crush |
Temperature |
|||
Long |
Short |
Long |
Short |
Dynamic |
Static |
|||||
GJXFH-01 |
1 |
1.6*2.0 |
5 |
40 |
80 |
500 |
1000 |
30D |
15D |
-20~+60 |
GJXFH-01 |
1 |
2.0*3.0 |
8 |
40 |
80 |
500 |
1000 |
30D |
15D |
|
GJXFH-02 |
2 |
2.0*3.0 |
8.5 |
40 |
0 |
500 |
1000 |
30D |
15D |
|
GJXFH-04 |
4 |
2.0*3.0 |
9 |
40 |
80 |
500 |
1000 |
30D |
15D |
|
GJXFH-06 |
6 |
3.0*4.0 |
14 |
45 |
85 |
500 |
1000 |
30D |
15D |
|
GJXFH-08 |
8 |
3.0*4.0 |
16 |
50 |
90 |
500 |
1000 |
30D |
15D |
|
GJXFH-12 |
12 |
3.0*4.0 |
19 |
55 |
95 |
500 |
1000 |
30D |
15D |
|
|
||||||||||
Fiber type |
G652D |
50/125 |
62.5/125 |
G657A1 |
G657A2 |
OM3-150 |
OM3-300 |
OM4 |
||
Jacket material |
PE |
LSZH |
||||||||
Features: |
||||||||||
Special low beng sensitivity fiber provodes high bandwidth |
||||||||||
Two parallel FRP strength member ensures good performance |
||||||||||
Simplex structure, light weight,high practicability |
||||||||||
Low smoke zero halogen and flame retardant sheath |
