LC Duplex OM4 , LC Fiber Optic Cable Adapter Plastic Purple Quad Fibers

Name: LC Duplex OM4 , LC Fiber Optic Cable Adapter Plastic Purple Quad Fibers
Brand: YINGDA TECHNOLOGY LIMITED
SKU: AD-LC-M4-DX
Price: 1.04 USD
Availability: InStock

نام تجاری:	YINGDA
شماره مدل:	AD-LC-M4-DX
مقدار تولیدی:	1000 pcs
قیمت:	0.04USD-2.15USD
زمان تحویل:	3working days
شرایط پرداخت:	T/T or western Union

اطلاعات دقیق

توضیحات محصول

اطلاعات دقیق

محل منبع:

چین

گواهی:

ISO,SGS

Fiber count:

4 Core, quad fibers

connector material:

plastic

dustcap color:

purple

sleeve material:

ceramic

fiber type:

multimode OM4

polish mode:

insertion loss:

<0.2dB

temperature:

-40~+80 °C

نام محصول:

کابل mpo به mpo، کابل mpo به lc، کانکتور نوری mtp، کاست mtp

Packaging Details:

50 pc / blister box

Supply Ability:

100000pcs/month

برجسته کردن:

,

fiber optic adaptor

توضیحات محصول

LC Duplex OM4 Adapter, LC Fiber Optic Adapter, Plastic LC Adapter OM4 Purple

This coupler provides a solution for extending a current run of fiber optic cabling. This coupler

is constructed from highgrade plastic and has been designed and engineered for durability

and a long life.

Adapter structure

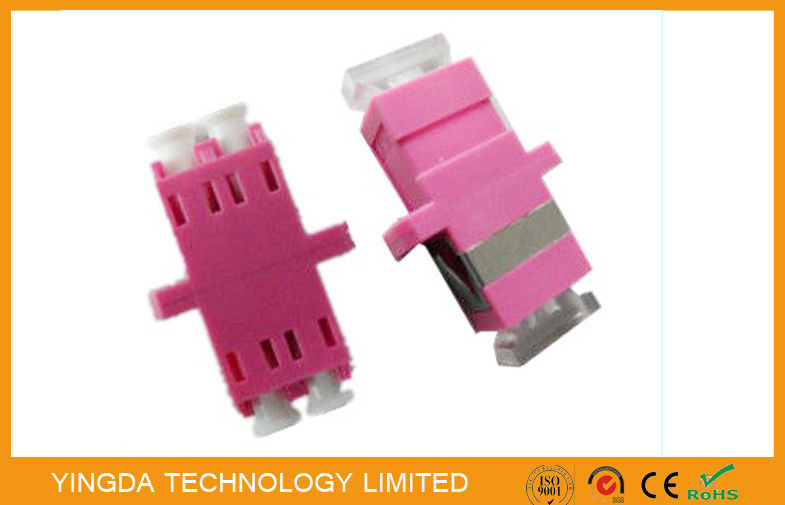

LC Duplex OM4 , LC Fiber Optic Cable Adapter Plastic Purple Quad Fibers 0

Features

Conforms to Telcordia GR-326-CORE standard
Conforms to YD/T-1272.3 standard
Good interchangeability,low insertion loss
Easy to use,plug
Application: FTTH,CATV,Telecommunications,etc

Material List:

Sleeve: Ceramic or PB
Housing: PC , Flammability UL94 V-0
Dust cap: PVC, Flammability UL94 V-0
Clip:s tainless steel

Optical characteristic

Optical Performance

Premium Grade

Standard Grade

Insertion Loss

≤0.1dB

≤0.2dB

Durability

1000 times

Environment and Mechanical Properties

Item	Test condition	Conformance	Test result
Vibration	10-55Hz, 1.5mm, 60min	IEC61300-2-1	≤0.2dB
Mating Durability	1000 Mating, clean every 25 mating.	IEC61300-2-2	≤0.2dB
Impact	1.5m, 8 drops	IEC61300-2-6	≤0.2dB
Strength of Coupling Mechanism	40N, 10Min, L=22-28cm	IEC61300-2-12	≤0.2dB
Temperature Cycling	40ºC to +75ºC, 40 cycles	IEC61300-2-22	≤0.2dB
Temperature humidty cycling	40ºC, 95%, 96Hr	IEC61300-2-21	≤0.2dB
Operating Temperature	-40ºC to +85ºC		≤0.2dB
Storage Temperature	-40ºC to +85ºC		≤0.2dB

More product show:

LC Duplex OM4 , LC Fiber Optic Cable Adapter Plastic Purple Quad Fibers 1
