FC Plug - in Fiber Optic Attenuator 10dB Female to Male SC FC LC ST E2000 MU

Name: FC Plug - in Fiber Optic Attenuator 10dB Female to Male SC FC LC ST E2000 MU
Brand: YINGDA TECHNOLOGY LIMITED
SKU: ATTN-FCS-01-B03
Price: 29.18 USD
Availability: InStock

نام تجاری:	YINGDA
شماره مدل:	ATTN-FCS-01-B03
مقدار تولیدی:	100PCS
قیمت:	قابل مذاکره
زمان تحویل:	3-5 days
شرایط پرداخت:	T/T or western Union

اطلاعات دقیق

توضیحات محصول

اطلاعات دقیق

محل منبع:

چین

گواهی:

ISO

Attenuation:

1dB, 2dB, 3dB, 5dB, 10dB, 7dB, 15dB, 20dB,etc

test wavelength:

1310nm /1550nm

body material:

metal

Additional loss:

0.1dB

Working temperature::

-40～+75 (℃)

Fiber optic type:

single-mode,multimode

industry standard:

Telcordia TA-NWT-001209

connector type:

SC FC LC ST E2000 MU

dust cap color:

white

connector shape:

plug-in type

نام محصول:

آداپتور شبکه فیبر، کوپلینگ فیبر نوری، آداپتور مبدل رسانه، تضعیف کننده های مایکروویو، تضعیف کننده های

Packaging Details:

1 pc / plastoc bag

Supply Ability:

50,000pcs per month

برجسته کردن:

optical fiber attenuator,inline optical attenuator

inline optical attenuator

توضیحات محصول

FC Plug-in Attenuator 10dB, Build Out Attenuator FC/PC 10dB Female to Male

Optical fiber attenuator is made of high precision standard dust. Refined. It use for a variety of

optical fiber transmission line, high precision attenuation, stable and reliable performance.

Performance characteristics have no relationship with wavelength change, can realize the

adapter and attenuator both functions.

YINGDA TECHNOLOGY LIMITED provide high quality of Male to Female Plug-in type fixed optical

attenuator, attenuation value 1dB ~ 20dB,use imported fiber with light absorbing metal ion, with

superior environmental stability and low reflectivity. The front end of attenuator is the male head,

can directly insert into the adapter of the receiving equipment or distribution panel. Its back-end

is female connector, connect with the jumper .

Male and female type (M-F) optical fiber attenuator has SC, FC, ST, LC, MU,etc.

Features:

Bellcore Compliant
Wavelength Independent (DWDM)
Durability (well over 100mw)
Simple and Reliable Structure
Applications:
Telecommunication Networks
Data Networks
Video & CATV

Application

1.Optic-fiber Communication Systems

2.Optical Fiber Sensor

3.Optical Fiber Test Equipment

4.Optic-fiber CATV

Specification

Item	Standard	Wavelength Flattened	Broadband
Operating Wavelength(nm)	1310 or 1550		1310/1550
Bandwidth(nm)	±20	±40
Attenuation value (dB)	1~30
Return Loss (dB)	≥40
Operating Temperature oC	-40~+85
Storage Temperature oC	-40~+85
Industry Standard	Telcordia TA-NWT-001209

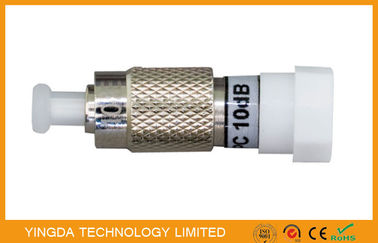

FC Plug - in Fiber Optic Attenuator 10dB Female to Male SC FC LC ST E2000 MU 0

FC Plug - in Fiber Optic Attenuator 10dB Female to Male SC FC LC ST E2000 MU 1
