2 Doors ODN PON Fiber Optic Termination Box, Wall Mount Terminal Box With Key

مقدار تولیدی:	100 pcs
قیمت:	0.18USD-4.29USD
بسته بندی استاندارد:	1pc / box, 5 pcs / carton box
Delivery period:	5-8days after payment
ظرفیت تامین:	500,000 pcs per month

اطلاعات دقیق

توضیحات محصول

امتیازها و نظرات

اطلاعات دقیق

محل منبع

نام تجاری

YINGDA

گواهی

ISO SGS ROHS

Model Number

GP(05)C

material:

cold rolled steel

color:

white

capacity:

12 Cores

adapter:

FC SC ST LC

cable ports:

4 pcs

application:

FTTH FTTX FTTB ODN PON network

dimension:

350*300*80mm

thickness:

1.0mm

fiber type:

singlemode, multimode

installation:

wall mount

doors:

2 pcs with key

برجسته کردن:

,

fiber optic junction box

توضیحات محصول

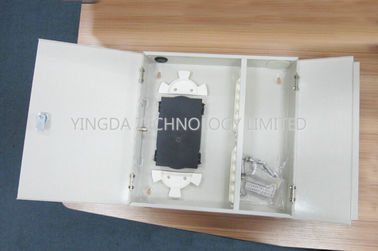

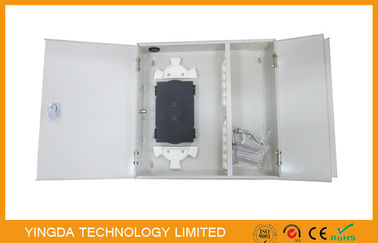

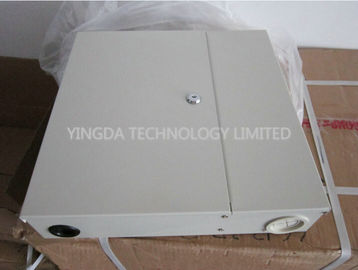

2 Doors ODN PON Fiber Optic Termination Box, Wall Mount Terminal Box With Key

Sell point:

Wall mounting metal box,not plastic, can use long and high strength function

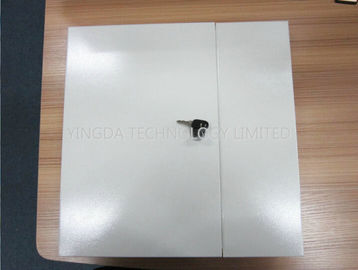

2 Doors open with key, safe guarantee
can install 12 Fibers pigtail and 12 pcs SC adapters inside
MOQ: 50PCS
customer logo,label is available

Outdoor wall mount optical fiber distribution box is distribution equipment to connect,protect and

management the fiber and cable in fiber optic communication networ. It consist of termination

access module and rack.

This terminal box e can realize the optical fiber fixed, ground protection, optical fiber connection,

rational distribution, redundant fiber coiling, distribution scheduling and other functions.

Features

1. Available for small capacity communication system,wall mounting,reasonable and compact structure,

harmonized with machine room

2. The cabinet is composed of two parts,one links with optical cables for fusion connection

between optical cable and fiber pigtail and another links with patch cord.

3. Provide fusion and storage for optical cables

4. Reliable protection appliance of fixing,stripping and earthing for optical cables.

5. Whole range protected design for fiber lay to ensure the bending radius=40mm

6. Provide various accessories to avoid any unexpected damage to the fiber

7. 1U max hold 12 core SC/FC/ST (24 pcs duplex port LC or MT-RJ) optical fiber connector;

8. Closed management;

9. All front operation, quick and convenient to install

Specification

Type

Dimension

(mm)

Max capacity

(core)

Carton size

(mm)

GW.

(kg)

Qty/carton

(pc)

GP(05)C-FC12

350*300*80

405*355*605

19.5

GP(05)C-SC12

350*300*80

405*355*605

19.5

Note:

Cold rolled steel sheet,electrostatic spraying.

Available for 12pcs adapters FC,ST,SC,LC

Wall mount

max capactiy: 12 Fibers only

2 Doors ODN PON Fiber Optic Termination Box, Wall Mount Terminal Box With Key 0
