Diameter 30mm Simplex Bare Fiber Adapter 123 - 127 um , Optic FC / PC Coupler

مقدار تولیدی:	100 PCS
قیمت:	0.04USD-2.15USD
بسته بندی استاندارد:	1 pc / bag or 10 pc/ blister box
Delivery period:	3 days
روش پرداخت:	T/T or western Union
ظرفیت تامین:	50,000pcs per month

اطلاعات دقیق

توضیحات محصول

امتیازها و نظرات

اطلاعات دقیق

محل منبع

نام تجاری

YINGDA

گواهی

ISO,SGS

Model Number

ADB-FC-RD

material:

Metal

color:

blue, gray, black

shape:

round

type:

fiber optic bare adapter

weight:

Fiber type:

single-mode

نام محصول:

کابل mpo به mpo، کابل mpo به lc، کانکتور نوری mtp، کاست mtp

برجسته کردن:

,

bare fiber adapter

توضیحات محصول

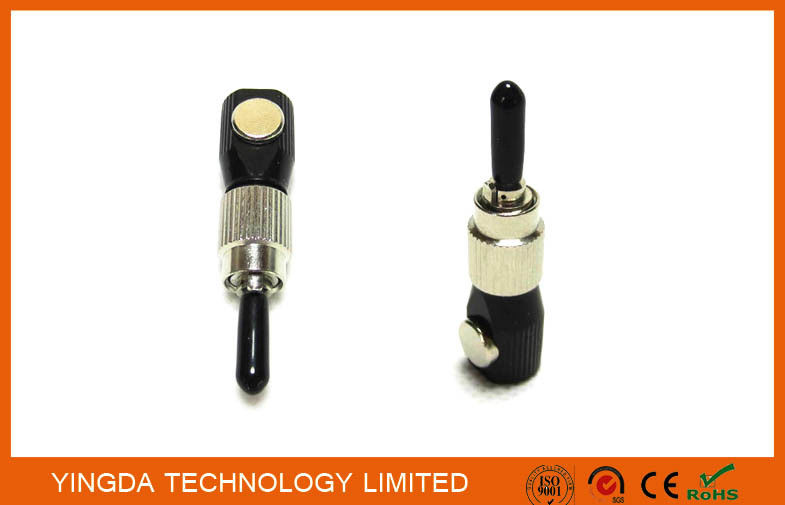

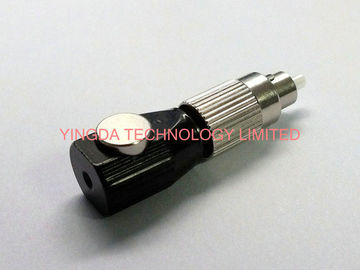

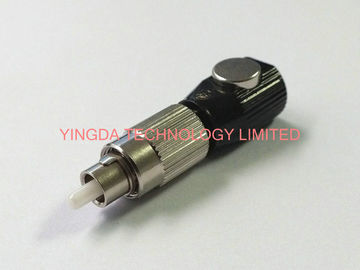

FC Bare Fiber Adapter, Bare Fiber Optic Adapter Coupler FC / PC Round

Description

The optical fiber is connected through the opening sleeve inside adapter, in order to ensure the

highest performance of optical fiber jumper. In order to fixed on various panel, a variety of fixed

flange adapters design and manufactured.

FC Round Bare Fiber Adapter can link bared optic and light source ,testing equipment, light

appearance etc,and the products used for test appearance and temporary conjunction between

fiber optics extensively (repair fiber optic cable urgently). It have the bare optical fiber inside one

side, the other side is a connector that can plug into the equipment.

Feature

Simplex and quickly interconnect
Low insertion loss
Repeatability and exchangeability good
Stabilize the credibility
Interchangeable connector heads available

Application

Testing fiber on the reel
Optical fiber through connection test
Two-way communication during optical-fiber cable installation and maintenance
First-aid repair,temporary connection and testing on optical fiber project.

Specification

Shape	Square / Round
Connector	FC/PC, SC/PC, ST/PC, LC/PC
Applicable fiber	SM & MM
Ferrule diameter	123-127 um
Ferrule outder diameter	2.499mm 1.249mm
Cable diameter	250um & 900um
Insertion Loss	≤0.20dB
Repeat ability	＜0.2dB
Tensile strength	100g
Plug time	>1000 times
Operating Temperature	-40 ~+85℃
Size	Length:40mm, diameter:30mm

Diameter 30mm Simplex Bare Fiber Adapter 123 - 127 um , Optic FC / PC Coupler 0

امتیازها و بررسی‌ها

امتیاز کلی

5.0

بر اساس 50 بررسی برای این تامین‌کننده

بررسی اجمالی امتیاز

توزیع تمام رتبه‌بندی‌ها به شرح زیر است.

5 ستاره‌ها

100%

4 ستاره‌ها

3 ستاره‌ها

2 ستاره‌ها

1 ستاره‌ها

تمام بررسی ها

B*n

Canada Apr 28.2025

مفید (3)

Excellent product, complete Items as specified. Special thanks to ms. Milla for such Great service.

United States Feb 10.2024

مفید (10)

Everything is working as expected. Communication was great for you and the shipping arrived promptly, thank you so much. Definitely will be purchasing from you guys in the future.

C*d

Ecuador Feb 26.2021

مفید (3)

Excellent quality, as always! Fantastic product and service!

برچسب ها:

fiber optic coupler,bare fiber adapter,fiber optic adaptor,

,,

محصولات

مقدار تولیدی:	100 PCS
قیمت:	0.04USD-2.15USD
بسته بندی استاندارد:	1 pc / bag or 10 pc/ blister box
Delivery period:	3 days
روش پرداخت:	T/T or western Union
ظرفیت تامین:	50,000pcs per month

اطلاعات دقیق

توضیحات محصول

اطلاعات دقیق

محل منبع

چین

نام تجاری

YINGDA

گواهی

ISO,SGS

Model Number

ADB-FC-RD

material:

Metal

color:

blue, gray, black

shape:

round

type:

fiber optic bare adapter

weight:

12g

Fiber type:

single-mode

نام محصول:

کابل mpo به mpo، کابل mpo به lc، کانکتور نوری mtp، کاست mtp

Minimum Order Quantity:

100 PCS

قیمت:

0.04USD-2.15USD

Packaging Details:

1 pc / bag or 10 pc/ blister box

Delivery Time:

3 days

Payment Terms:

T/T or western Union

Supply Ability:

50,000pcs per month

برجسته کردن

,

bare fiber adapter

توضیحات محصول

FC Bare Fiber Adapter, Bare Fiber Optic Adapter Coupler FC / PC Round

Description

The optical fiber is connected through the opening sleeve inside adapter, in order to ensure the

highest performance of optical fiber jumper. In order to fixed on various panel, a variety of fixed

flange adapters design and manufactured.

FC Round Bare Fiber Adapter can link bared optic and light source ,testing equipment, light

appearance etc,and the products used for test appearance and temporary conjunction between

fiber optics extensively (repair fiber optic cable urgently). It have the bare optical fiber inside one

side, the other side is a connector that can plug into the equipment.

Feature

Simplex and quickly interconnect
Low insertion loss
Repeatability and exchangeability good
Stabilize the credibility
Interchangeable connector heads available

Application

Testing fiber on the reel
Optical fiber through connection test
Two-way communication during optical-fiber cable installation and maintenance
First-aid repair,temporary connection and testing on optical fiber project.

Specification

Shape	Square / Round
Connector	FC/PC, SC/PC, ST/PC, LC/PC
Applicable fiber	SM & MM
Ferrule diameter	123-127 um
Ferrule outder diameter	2.499mm 1.249mm
Cable diameter	250um & 900um
Insertion Loss	≤0.20dB
Repeat ability	＜0.2dB
Tensile strength	100g
Plug time	>1000 times
Operating Temperature	-40 ~+85℃
Size	Length:40mm, diameter:30mm

Diameter 30mm Simplex Bare Fiber Adapter 123 - 127 um , Optic FC / PC Coupler 0
