Fiber Tool Kits Launch Cable Box

مقدار تولیدی:	10pcs
قیمت:	قابل مذاکره
بسته بندی استاندارد:	1pc/box
Delivery period:	7days after payment
روش پرداخت:	Western Union, T/T
ظرفیت تامین:	5,000 pcs per month

اطلاعات دقیق

توضیحات محصول

امتیازها و نظرات

اطلاعات دقیق

محل منبع

نام تجاری

YINGDA

گواهی

ISO SGS ROHS

Model Number

LB-ST-LC-S-2

connector:

SC FC LC ST

fiber count:

insertion loss:

< 0.2 dB

fiber type:

SM singlemode

package:

cable color:

yellow

cable diameter:

2.0mm

temperature:

-40~+80°C

برجسته کردن:

,

fiber polishing film

توضیحات محصول

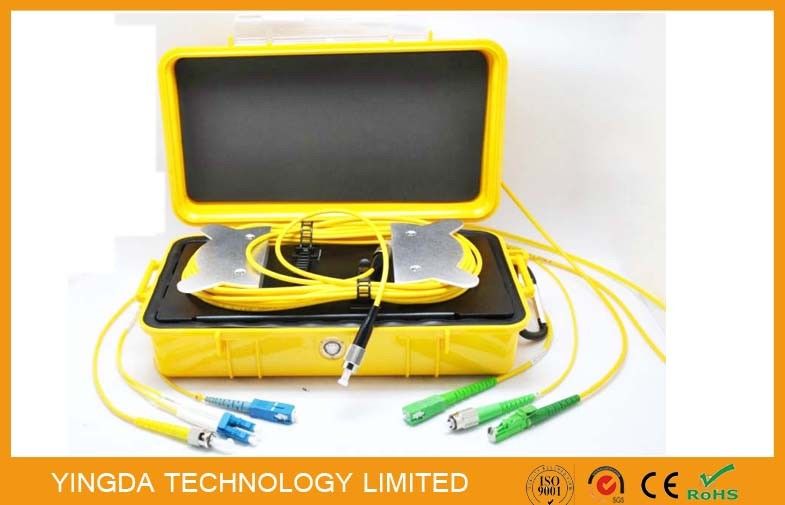

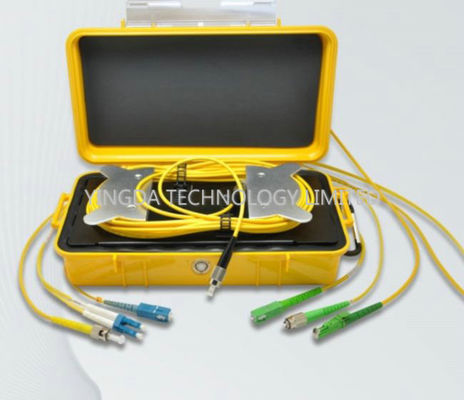

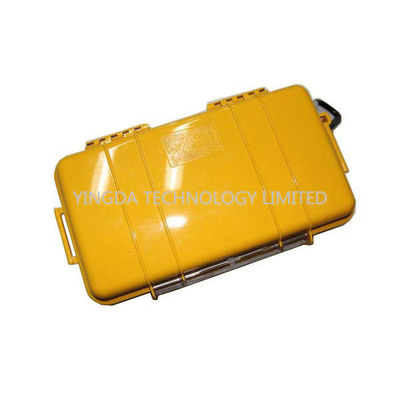

Fiber Tool Kits FC LC Fiber Optic OTDR Launch Cable Box, Dead Zone Eliminator Fiber Rings

The OTDR Launch Fiber box is used with Optical Time Domain Reflectometers (OTDR’s to help

minimize the effects of the OTDR’s launch pulse on measurement uncertainty. Available in many

different configurations: SC, FC, LC, ST and fiber lengths:500M, 1KM, 2KM... etc.

Features

Pulse Suppressor,Launch Box,Delay Line,Installation/Testing,Training,Calibration.
Compound Latch for positive seal and easy opening with locking feature.
Nonmetal construction will not dent, corrode, or conduce electricity.
Water and dust prove allowing the unit to be taken into almost any environment.
Case can house up to 2,000 meters of fiber.
Auto Purge Valve for changes in altitude and temperature .

Specifications

LengthWidthHeight	9.37" x 5.56" x 2.62"
Material	SR Polypropylene
Color	Black/Yellow
Net Weight	0.75 kg (without fiber)
Operating temperature	Operating temperature
Typical Loss	< 1dB @ 1310nm for 1000 meters

KEEP NOTES:

Water and dust prove allowing the unit to be taken into almost any environment
Case can house up to 2,000meters.

Ordering Information

LB-A-B-C-D

A = Input connector	B = Output connector	C = Fiber	D = Length(km)
FC	FC	S–Single mode fiber	0.5=0.5km
ST	ST	M6–Multi mode fiber (62.5/125)	1=1km
SC	SC	M5–Multi mode fiber (50/125)	2=2km
FCA – FC/APC	FCA – FC/APC
SCA – SC/APC	SCA – SC/APC
LC	LC
MU	MU

Fiber Tool Kits Launch Cable Box 0
