Fiber Tool Kits Pen-type Visual Fault Finder Locator VFL Optical Fiber FP-LD Emitter 10Mw

مقدار تولیدی:	1 piece
قیمت:	قابل مذاکره
بسته بندی استاندارد:	1pc per box
Delivery period:	3 days

اطلاعات دقیق

توضیحات محصول

امتیازها و نظرات

اطلاعات دقیق

محل منبع

نام تجاری

YINGDA

گواهی

Model Number

JW3105P

Central Wavelength:

650nm±10nm

Output Power:

1mw, 3mw, 5mw,10mw on actual needs

Operating Model:

Both CW and Pulse available

dimension:

diameter 15X180 mm

net weight:

120g(Without battery)

Emitter Type:

FP-LD

Optical Connector:

2.5mm universal connector or 1.25mm

Power Supply:

2 x AA alkaline batteries

برجسته کردن:

,

fiber termination kits

توضیحات محصول

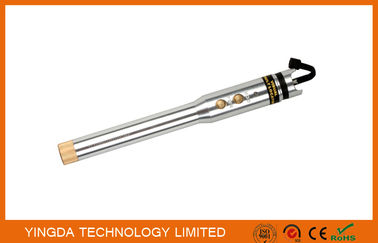

Fiber Tool Kits Pen-type Visual Fault Finder Locator VFL Optical Fiber FP-LD Emitter 10Mw

The JW105 Pentype VFL is specially designed for field personnel who need an efficient and

economical tool for fiber tracing, fiber routing and continuity checking in optical network.

It includes:

Finding the breakpoint, poor connections, bending or cracking in fiber optic cables.
Finding the faults of OTDR dead zone
End-to-end visual fiber identification

Features

2.5mm universal connector, for 1.25mm connectors,
FC (Male)-LC (Female) convertor can be provided on requests.
Operates either in CW or Pulsed
Constant output power
Lower Battery warning
Long battery life (up to 60 hours)
Crash-proof and dust-proof design for laser head
Laser case ground design prevents ESD damage
Burning testing to ensure the reliability.
Portable and rugged, easy to use
Guarantee to CE standards include EMC, EMI, ROHS

Specifications

Type	JW3105 Pen-type Visual Fault Finder
Central Wavelength	650nm±10nm (635nm can be required on request)
Emitter Type	FP-LD
Output Power	Optional choice for 1mw, 3mw, 5mw,10mw on actual needs
Optical Connector	2.5mm universal connector For 1.25mm connectors, FC (Male)-LC (Female) convertor can be optional on customer requests
Operating Model	Both CW and Pulse available
Pulse Frequency	2~3Hz
Power Supply	2 AA alkaline batteries
Battery Operating Time	650nm@1mw ≥65hour 650nm@3mw ≥50hour 650nm@10mw≥15hour Test with Panasonic LR6 AA ALKALINE battery
Operating Temperature	-10~+45 (℃)
Storage Temperature	-40~+70 (℃)
Dimension (mm)	￠15X180
Weight	120g(Without battery)

Remark: Colors can be customized on request when meets certain qty!

Standard Packages

MODEL

INCLUDES

JW3105 P

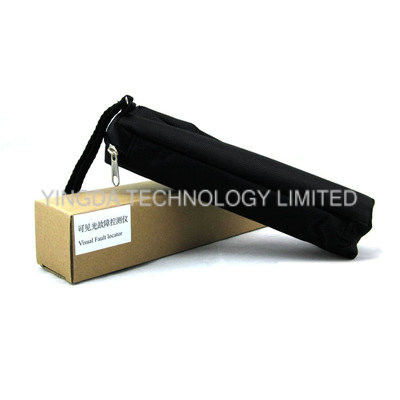

Main Unit (Original color), 2pcs Alkaline battery, User Manual, Cotton swabs and

Soft Carrying case.
