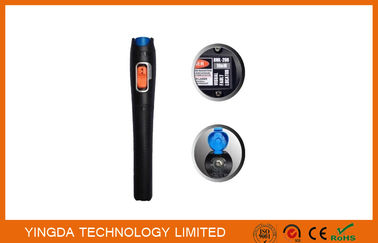

Fiber Optical Visual Fault Locator BML-206 10mw 1mw 15mw 20mw 25mw 30mw Sc Fc Connector

Fiber Optical Visual Fault Locator BML-206 10mw 1mw 15mw 20mw 25mw 30mw Sc Fc Connector

محصولات - کیت ابزار فیبر
  • برجسته

    ,

    ,

    fiber polishing film

  • Central Wavelength
    650nm±20nm
  • Output Power
    10mw, 1mw 15mw, 20mw, 25mw, 30mw can offer
  • Operating Model
    Pulsed (2Hz) and CW
  • dimension
    175 *26 * 26mm
  • net weight
    50g (Without battery)
  • Optical Connector
    2.5mm or 1.25mm Universal connector
  • Power Supply
    2 x AA alkaline batteries
  • warrranty
    1 year
  • محل منبع
    چین
  • نام تجاری
    YINGDA
  • گواهی
    ISO
  • Model Number
    BML-206
  • Minimum Order Quantity
    1 piece
  • قیمت
    Negotiable
  • Packaging Details
    1pc per box
  • Delivery Time
    3 days

Fiber Optical Visual Fault Locator BML-206 10mw 1mw 15mw 20mw 25mw 30mw Sc Fc Connector

  • Fiber Optical Visual Fault Locator BML-206 10mw 1mw 15mw 20mw 25mw 30mw Sc Fc Connector
  • Fiber Optical Visual Fault Locator BML-206 10mw 1mw 15mw 20mw 25mw 30mw Sc Fc Connector
  • Fiber Optical Visual Fault Locator BML-206 10mw 1mw 15mw 20mw 25mw 30mw Sc Fc Connector
  • Fiber Optical Visual Fault Locator BML-206 10mw 1mw 15mw 20mw 25mw 30mw Sc Fc Connector
  • Fiber Optical Visual Fault Locator BML-206 10mw 1mw 15mw 20mw 25mw 30mw Sc Fc Connector
دریافت قیمت اکنون تماس بگیرید

Fiber Optical Visual Fault Locator BML-206 10mw  1mw 15mw 20mw 25mw 30mw Sc Fc Connector





FEATURES:

  • Bright red laser at 650nm
  • Pulsed and CW operation
  • 50 hours of operation(typical)
  • Standard AA alkaline batteries
  • Rugged and weatherproof design
  • 2.5mm universal connector
  • One-year warranty and recommended calibration interval



SPECIFICATIONS



BML205

BML205-1

BML205-10

BML205-15

BML205-20

BML205-25

BML205-30

BML206

BML206-1

BML206-10

BML206-15

BML206-20

BML206-25

BML206-30

BML207

BML207-1

BML207-10

Output Power

> 1mW

> 10mW

> 15mW

> 20mW

>25mW

>30mW

Dynamic Distance *

> 5 km

8~10 km

12~14 km

15~17 km

18~20 km

25~30 km

Wavelength

650nm±20nm

Operation Mode

Pulsed (2Hz) and CW

Connector **

2.5mm or 1.25mm Universal connector



* The distance is tested by G.655, single mode, lab level fiber, loss<5dB/KM
** Standard connector is 2.5mm UPP, 1.25mm UPP will be customized and increase the cost





GENERAL SPECIFICATIONS



Size(H*W*D)

175mm *26mm * 26mm

Weight

BML205/207: 80g, BML206: 50g

Storage Temperature

-20 -- +60℃ , < 90%RH

Operating Temperature

-10 -- +50℃ , < 90%RH



ACCESSORIES



BML205/207 Standard

BML206 Standard

Soft Bag*1

Packing Box*1 (Quick guide printed on box)

Quick Guide*1



Packing Box*1
