Fiber Optic Pigtail FC singlemode 0.9mm 1meter Yellow Color Cable PVC G652D

محصولات

ماژول SFP

با ما تماس بگیرید

sales@yingdapc.cn

+86 18688982406

حالا تماس بگیرید

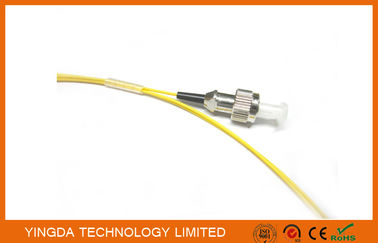

Fiber Optic Pigtail FC singlemode 0.9mm 1meter Yellow Color Cable PVC G652D

مقدار تولیدی:	100PCS
قیمت:	0.16USD-19.9USD
بسته بندی استاندارد:	1pc in a plastic bag, customer logo or label design ok

اطلاعات دقیق

توضیحات محصول

امتیازها و نظرات

اطلاعات دقیق

محل منبع

نام تجاری

YINGDA

گواهی

Model Number

FPG-FC-OS1-0.9-1.5-Y

Fiber type:

single mode

fiber count:

Simplex

cable type:

fiber optic

cable diameter:

900 um

cable length:

1 meter

connector boot:

black boot, body: metal + plastic

polish mode:

connector:

cable color:

yellow or white

ferrule:

ceramic

نام محصول:

پیگتال فیبر نوری، پیگتیل فیبر نوری، پیگتال فیبر نوری، پیگتیل فیبر نوری

نام محصول:

پیگتال فیبر نوری، پیگتیل فیبر نوری، پیگتال فیبر نوری، پیگتیل فیبر نوری

لوگوی مشتری::

برجسته کردن:

,

waterproof pigtail

توضیحات محصول

Fiber Optic Pigtail FC singlemode 0.9mm 1meter Yellow Color Cable PVC G652D

YINGDA offers an FC Tunable Pigtail with four-position tuning for applications requiring precise fiber

alignment. A specially designed FC PM Pigtail is available for use with Polarization Maintaining Fiber.

FC Fiber Optic Pigtail was one of the most popular Pigtails. It use a 2.5mm ferrule, but some of

the early ones use ceramic inside stainless steel ferrules. It screws on firmly, but you must make

sure you have the key aligned in the slot properly before tightening. It's been mostly replaced by

SC and LC. However,due to easy assemblies and installation, YINGDA produced FC Fiber Optic

Pigtails are every competitive.

FC Fiber Optic Pigtails is available in both single-mode and multimode, and is fully inter-mateable

with NTT-FC products. Both single-mode and multimode come with a zirconia ceramic ferrule with

pre-polished PC profile and convex spherical end. These end-face types allow for faster polishing,

and low back reflection and optical loss, while ensuring maximum repeat-ability.

Application

CATV network
Optical fiber communication systems
Optical fiber data transmission
Building network access
Cabling system, ODF
FTTX network

Features

Low Insertion Loss
High Return Loss
Good Exchange ability
Good Repeat ability
High Temperature Stability
Comply with YD/T 1272.4-2007 specification
8 Degree Angled physical contact polishing (APC) can offer

Specification

Item	Single mode (nomomodo)	Multimode (Multimodo)
Wavelength	1310&1550nm	850&1300nm
Fiber type	9/125um	62.5/125um,50/125um,50/125um OM3,50/125um OM4
Connector type	SC ST FC LC MU MTRJ E2000 DIN D4 ESCON
Insertion loss on average	≤0.3dB	≤0.3dB
Max. insertion loss	≤0.5dB	≤0.5dB
Return loss	UPC≥55dB;APC≥65dB	≥20dB
Operating temperature	-40~+75℃
Storage temperature	-40~+85℃

Ordering Information

FC / UPC SM 9/125 SIMPLEX 1.6mm –1M LSZH

① ② ③ ④ ⑤ ⑥ ⑦

① Connector type: FC, SC, LC, ST, MTRJ, MU, E2000, MPO, DIN, D4, SMA
② Ferrule End-face: PC, UPC, APC
③ Core Type: Single-mode (SM: 9/125um), Multimode (MM: 50/125um or 62.5/125um), OM3 10Gigabit, OM4
④ Cable Quantity: simplex or duplex
⑤ Cable Diameter: Ф3.0mm, Ф2.4mm, Ф2.0mm, Ф1.8mm, Ф1.6mm, Ф0.9mm
⑥ Cable Length: 1, 2, 3 meter or customized
⑦ Cable type: PVC, LSZH

Fiber Optic Pigtail FC singlemode 0.9mm 1meter Yellow Color Cable PVC G652D 0
