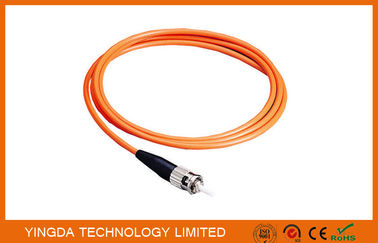

LWL Pigtails ST Muliti-mode Simplex 1.5 Meter 3mm , Fibre Optic Pigtails ST MM SX 3mm

Name: LWL Pigtails ST Muliti-mode Simplex 1.5 Meter 3mm , Fibre Optic Pigtails ST MM SX 3mm
Brand: YINGDA TECHNOLOGY LIMITED
SKU: FPG-ST-OM2-30-1-O
Price: 9.16 USD
Availability: InStock

نام تجاری:	YINGDA
شماره مدل:	FPG-ST-OM2-30-1-O
مقدار تولیدی:	100 PCS
قیمت:	0.16USD-19.9USD

اطلاعات دقیق

توضیحات محصول

اطلاعات دقیق

محل منبع:

چین

گواهی:

ISO

Fiber type:

Mulitmode 50/125 OM2

fiber count:

simplex

cable type:

fiber optic

cable diameter:

3 mm

cable length:

1 Mtrs

connector boot:

black

polish mode:

connector:

cable color:

orange

OEM:

ferrule:

ceramic

نام محصول:

پیگتال فیبر نوری، پیگتیل فیبر نوری، پیگتال فیبر نوری، پیگتیل فیبر نوری

نام محصول:

پیگتال فیبر نوری، پیگتیل فیبر نوری، پیگتال فیبر نوری، پیگتیل فیبر نوری

لوگوی مشتری::

آره

Packaging Details:

1pc in a plastic bag, customer logo or label design ok

برجسته کردن:

,

ribbon pigtail

توضیحات محصول

LWL Pigtails ST Muliti-mode Simplex 1.5 Meter 3mm, Fibre Optic Pigtails ST MM SX 3mm

ST fiber Pigtail is still the most popular Pigtail, it has a bayonet mount and a long cylindrical 2.5 mm

ceramic (usually) or polymer ferrule to hold the fiber. Clearly speaking, The ST fiber Pigtail (Straight

Tip) is a fiber Pigtail which uses a plug and socket which is locked in place with a half-twist bayonet

lock. The ST Pigtail was the first defactor standard for fiber optic cabling and ST fiber Pigtail is one

of the leading fiber Pigtails.

The ST Pigtail has a bayonet-style housing and a long spring-loaded ferrule hold the fiber.

They are available in both multimode or singlemode versions. Horizontally mounted simplex

and duplex adapters are available with metal or plastic housing, with a choice of phosphor

bronze or zirconia split sleeve.

Features

Insertion Loss low
High Return Loss
Good Repeat ability
Good Exchange ability
High Temperature Stability
Comply with YD/T 1272.4-2007 specification

Application

CATV network
Optical fiber communication systems
Optical fiber data transmission
Building network access
Cabling system, ODF
FTTX networks

Specification

Connector type	LC,SC,ST,FC.MU,MPO, SC/APC,FC/APC,LC/APC. MU/AP Duplex MTRJ/Female, MTRJ/Male
Fiber Type	9/125um SMF-28 or equivalent (Single mode) OS1, (Multi-mode) 50/125um OM1, 62.5/125um OM2 & 50/125um, 10G OM3, OM4
Cable Type	Simplex, Duplex (Zip cord) Φ3.0mm, Φ2.0mm, Φ1.8mm Φ1.6mm PVC or LSZH Φ0.9mm, Φ0.6mm buffered fiber PVC or LSZH
Polishing Manner	UPC,SPC,APC (8°& 6°)
Insertion Loss	≤ 0.1dB (For Single mode Master); ≤ 0.25dB (For Single mode Standard) ; ≤ 0.25dB (For Multi-mode) ; Tested by JDS RM 3750
Return Loss (For Single mode)	UPC ≥ 50dB SPC ≥ 55dB APC ≥ 60dB (typ.65dB) Tested by JDS RM3750
Repeat ability	±0.1dB
Operating Temperature	-40°C to 85°C
Geometry Requirement (For Single mode)	Ferrule End face Radius: 7mm ≤ R ≤ 12mm (For APC); 10mm ≤ R ≤ 25mm (For Standard); Apex Offset ≤ 30 μm (For Master); Apex Offset ≤ 50 μm (For Standard); Undercut -50nm ≤ U ≤ 50nm; Tested by DORC ZX-1

Ordering Information

ST / PC MM 50/125 SIMPLEX 0.9mm –1M LSZH

① ② ③ ④ ⑤ ⑥ ⑦

① Connector type: FC, SC, LC, ST, MTRJ, MU, E2000, MPO, DIN, D4, SMA
② Ferrule End-face: PC, UPC
③ Core Type: Single-mode (SM: 9/125um), Multimode (MM: 50/125um or 62.5/125um),

OM3 10Gigabit, OM4
④ Cable Quantity: simplex or duplex
⑤ Cable Diameter: Ф3.0mm, Ф2.4mm, Ф2.0mm, Ф1.8mm, Ф1.6mm, Ф0.9mm
⑥ Cable Length: 1, 2, 3 meter or customized
⑦ Cable type: PVC, LSZH

We also offers the epoxy-free ST XPFit Pigtail for quick field termination. The ST is one of

the older generations of Pigtail, but is still widely used for multimode networks, including

LANs for buildings and campuses, welcome inquiry.
