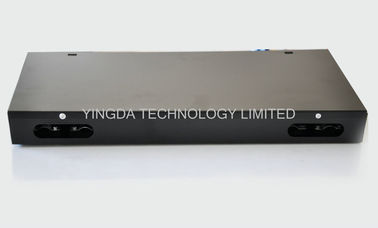

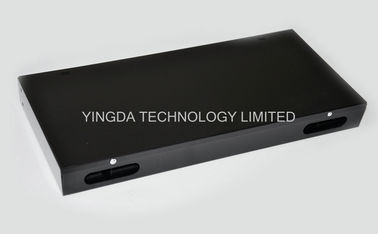

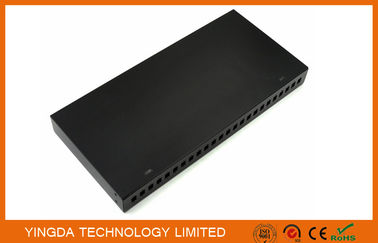

19” 24 Port Rack Patch Panel , 24 Cores SC Simplex Adapter Panel Rack Mounting Black
برای نمونه و کوپن رایگان با من تماس بگیرید.
WhatsApp:0086 18588475571
ویچت: 0086 18588475571
اسکایپ: sales10@aixton.com
اگر نگرانی دارید، ما به صورت آنلاین 24 ساعته راهنمایی می کنیم.
xmaterial | cold rolled steel | thickness | 0.8mm,1.0mm, 1.2mm |
---|---|---|---|
capacity | 12 cores | connector port | FC or ST ( round port ) |
application | optical distribution frame | installatino method | rack mounted |
color | white, black | dimension | 480*200*1U mm |
برجسته | ,,sliding patch panel |
19” 24 Port Rack Patch Panel, 24 Cores SC Simplex Adapter Panel Rack Mounting Black
Description
19" Rack mount patch panel is mainly used for connection and storage between optical fiber cable
and pigtail in equipment, it can be wall mounted and floor-standing installation. The box body is made
of high quality cold rolled steel,electrostatic spraying, the appearance is beautiful, and the operation
is convenient.
Adapter panel can be simplex or duplex, and have ears to install in rack. It is smart design to supply
firm protection for optical cable terminal connection and optical fiber adapter installation. It is a combine
of termination, protection, connection, management of fiber optic cables.
Fiber optic patch panel can install FC SC LC ST adapters, and max capacity can be 12 cores, 24
cores, 48 cores, 72 cores or 96 cores on customer request by 1U, 2U, 3U, 4U.
Features
- Flexible standard 19” cabinet installation
- Complete front operations with double layers
- Sufficient spooling area for redundant fibers
- Spooling space available for fibers and pigtails to enhance protection for the fibers,
- pigtails and connections
- Adapter mounting bar available to hold multiple types of adapters like FC SC ST and LC
- Complete bending radii protection
Technical specification:
ambient temperature |
-25℃~+40℃ |
relative humidity |
≤85%(+30℃) |
atmospheric pressure |
70kPa~106kPa |
Insulation resistance |
fiber optic cable terminal and cable metal strength member, fiber optic cable metal components itself, fiber optic cable metal components and the ground, the insulation resistance should > 2 x 104MΩ. |
Dielectric strength |
fiber optic cable terminal and cable metal strength member, fiber optic cable metal components itself, fiber optic cable metal components and the ground, under 15kV voltage for 1min without breakdown, no arcing phenomena. |
Order information
Model |
Dimension (mm) |
Max Capacity (cores) |
GPRP-SC12 |
480×200×1U |
12 |
GPRP-SC24 |
480×200×1U |
24 |
GPRP-SC48 |
480×200×2U |
48 |
GPRP-FC12 |
480×200×1U |
12 |
GPRP-FC24 |
480×200×1U |
24 |
GPRP-FC48 |
480×200×2U |
48 |
GPRP-ST12 |
480×200×1U |
12 |
GPRP-ST24 |
480×200×1U |
24 |
GPRP-ST48 |
480×200×2U |
48 |
When order, pls tell us below details:
1. Full complete assembly (loaded) with adapter and pigtail OR empty panel optional
2. Box color: Black , White
