2U Rack Patch Panel Metal FC ST , 48 Ports Fiber Optic Patch Panel 19” ODF Fully Load

مقدار تولیدی:	50 pcs
قیمت:	قابل مذاکره
بسته بندی استاندارد:	1 pc / box, 5 pcs / carton box

اطلاعات دقیق

توضیحات محصول

امتیازها و نظرات

اطلاعات دقیق

محل منبع

نام تجاری

YINGDA

گواهی

Model Number

GPRP-FC48-D

material:

cold rolled steel

thickness:

0.8mm,1.0mm, 1.2mm

capacity:

48 Port / 48 Fibers

connector port:

FC or ST ( round port )

application:

optical distribution frame ODF

installatino method:

rack mounted

color:

white, black

dimension:

480*200*2U mm

برجسته کردن:

,

sliding patch panel

توضیحات محصول

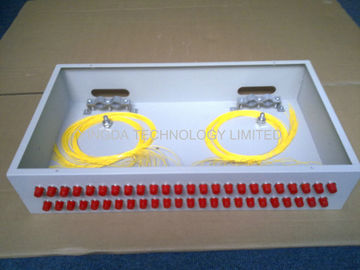

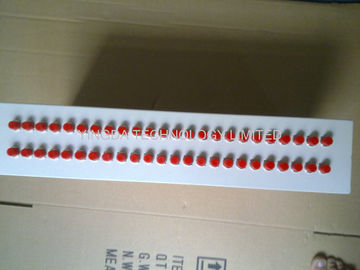

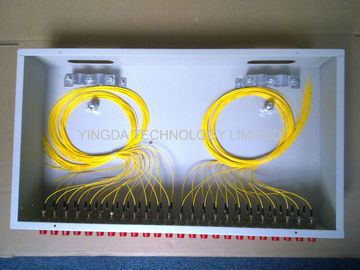

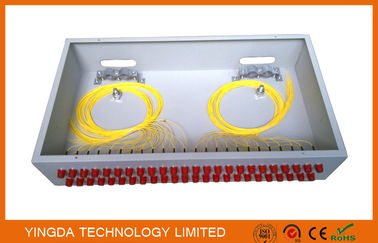

2U Rack Patch Panel Metal FC ST, 48 Ports Fiber Optic Patch Panel 19” ODF Fully Load

Description

19" Rack mount patch panel is mainly used for connection and storage between optical fiber cable

and pigtail in equipment, it can be wall mounted and floor-standing installation. The box body is made

of high quality cold rolled steel,electrostatic spraying, the appearance is beautiful, and the operation

is convenient.

Fiber optic patch panel can install FC SC LC ST adapters, and max capacity can be 12 cores, 24

cores, 48 cores, 72 cores or 96 cores on customer request by 1U, 2U, 3U, 4U.

Adapter panel can be simplex or duplex, and have ears to install in rack. It is smart design to supply

firm protection for optical cable terminal connection and optical fiber adapter installation. It is a combine

of termination, protection, connection, management of fiber optic cables.

Technical specification:

ambient temperature	－25℃～＋40℃
relative humidity	≤85%(＋30℃)
atmospheric pressure	70kPa～106kPa
Insulation resistance	fiber optic cable terminal and cable metal strength member, fiber optic cable metal components itself, fiber optic cable metal components and the ground, the insulation resistance should > 2 x 104MΩ.
Dielectric strength	fiber optic cable terminal and cable metal strength member, fiber optic cable metal components itself, fiber optic cable metal components and the ground, under 15kV voltage for 1min without breakdown, no arcing phenomena.

Features

Flexible standard 19” cabinet installation
Complete front operations with double layers
Adapter mounting bar available to hold multiple types of adapters like FC SC ST and LC
Complete bending radii protection
Sufficient spooling area for redundant fibers
Spooling space for fibers and pigtails to enhance protection for the fibers, pigtails and connections

Order information

Model	Dimension (mm)	Max Capacity (cores)
GPRP-SC12	480×200×1U	12
GPRP-SC24	480×200×1U	24
GPRP-SC48	480×200×2U	48
GPRP-FC12	480×200×1U	12
GPRP-FC24	480×200×1U	24
GPRP-FC48	480×200×2U	48
GPRP-ST12	480×200×1U	12
GPRP-ST24	480×200×1U	24
GPRP-ST48	480×200×2U	48

When order, pls tell us below details:

1. Complete assembly with adapter and pigtail OR empty panel optional

2. Box color: Black , White

2U Rack Patch Panel Metal FC ST , 48 Ports Fiber Optic Patch Panel 19” ODF Fully Load 0
