فیبر نوری جعبه ختم
Created with Pixso. New Design FTTH 2 Port Fiber Termination Box IP65 FTTH Splitter Box Support Storage Cable

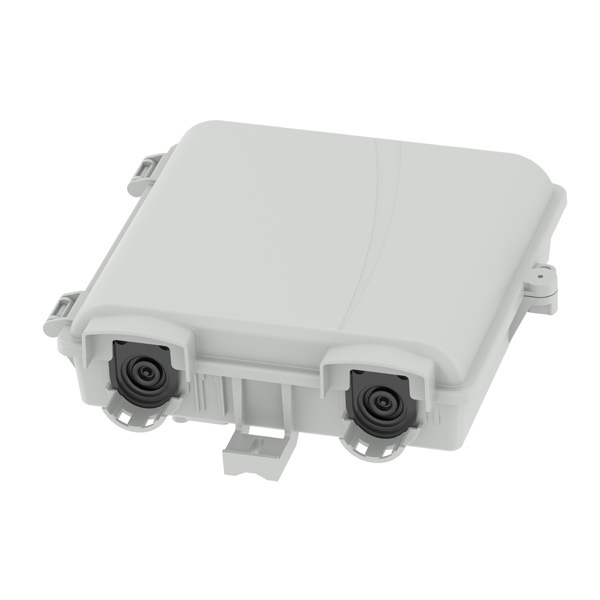

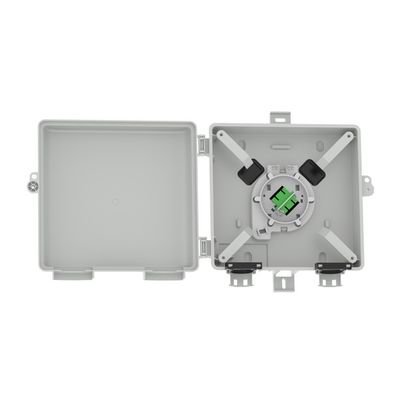

New Design FTTH 2 Port Fiber Termination Box IP65 FTTH Splitter Box Support Storage Cable

نام تجاری: YINGDA
شماره مدل: FTB008
مقدار تولیدی: 500 قطعه
قیمت: 0.18USD-4.29USD
زمان تحویل: 5-8 روز کاری
شرایط پرداخت: T/T ، Western Union ، MoneyGram ، L/C
اطلاعات دقیق
محل منبع:
چین
گواهی:
ISO
مادی:
ABS+PC
رنگ:
خاکستری
بندر کابل:
2 در 8 از
ظرفیت همجوشی:
8 هسته
تقسیم کننده:
1x2،1x4،1x8 مینی تقسیم کننده
اتصال:
SC APC
قطر ورودی:
12 میلی متر
قطر خروجی:
2.0*3.0mm ، 2.0*5.0mm کابل قطره ftth
ویژگی:
لیزر مارک ، OEM ، 2 پوشش قابل جابجایی
کاربرد:
نصب در دیوار داخلی
جزئیات بسته بندی:
1 pc/box ، جعبه 60pcs/کارتن
توضیحات محصول

New Design FTTH 2 Port Fiber Termination Box IP65 FTTH Splitter Box  Support Storage Cable



FAT-506F series indoor fiber termiantion boxes are designed and manufactured to endure harsh environmental conditions. Our fiber termination boxes are specially built to accommodate various amounts of pre-connectorised connectors for your fiber-to-the-home (FTTH), fiber-to-the-building (FTTB), or fiber-to-the-curb (FTTC) project. And the pre-connectorised connectors are easy to be connected by the drop cables. It is suitable for wall mounting.



2,Specification:
1) Water-proof design with IP65 Protection grade.

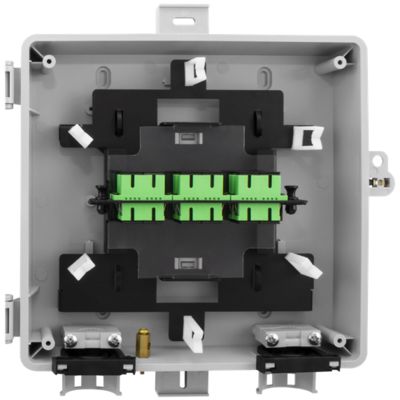

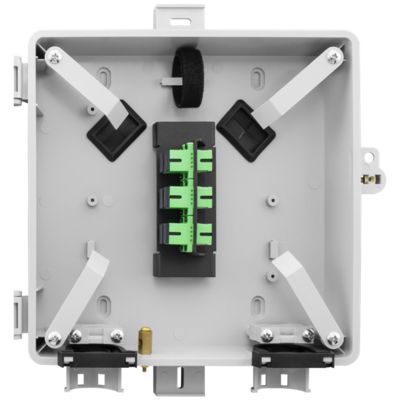

2) Integrated with splice cassette and cable management system.

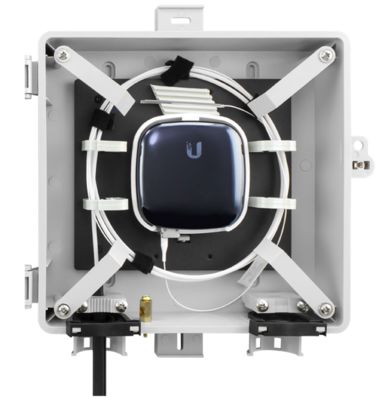

3) Manage fibers in a reasonable fiber radius condition.
4) Fiber bend radius control more than 35mm.
5) 1 uncut cable port for feeder cables.



3,Applications
1) FTTH access network
2) Telecommunication network
3) CATV networks
4) Data communications network
5) Local area networks



Specification:


Model FAT-506F
Size (Pic 1) H×W×D = 232×224×74 (MM)
Material PC+ABS
Color Light Gray
Adapter Type 1SC Simplex or duplex
Cable Port 2 Pcs
Installation Method Wall Mounted




Standard package:

The box is provide closed and will come equipped with all the elements, material consumable and tools necessary for the mounting and connection.


  • Cable nylon ties
  • Heat shrinkable tube
  • Wall mount expansion screws
  • Sealing of inputs or outputs
  • User manual
  • Adapters or plc splitter
