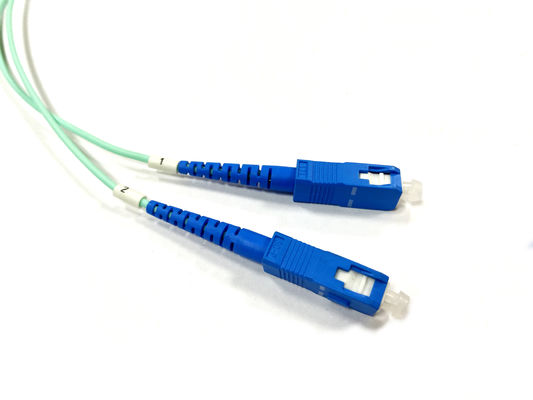

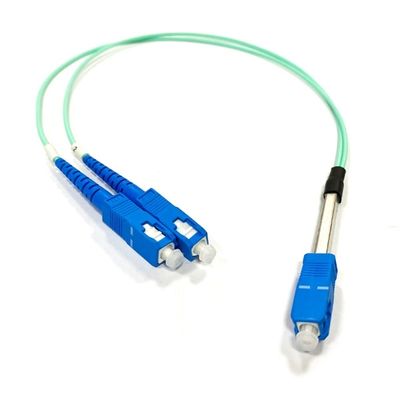

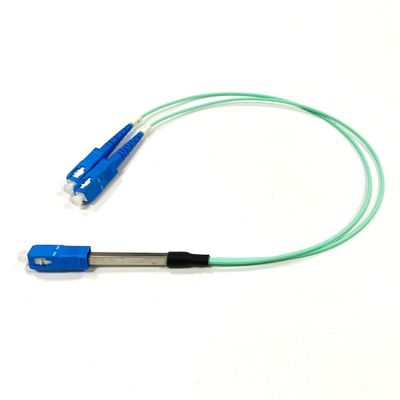

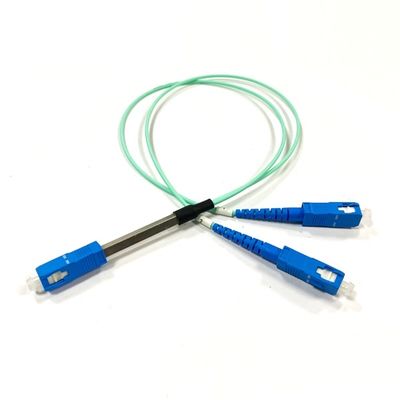

Design for Korean Fiber Optic Splitter With SC UPC Connector Singlemode Dual Window FBT Coupler PLC Splitter

Name: Design for Korean Fiber Optic Splitter With SC UPC Connector Singlemode Dual Window FBT Coupler PLC Splitter
Brand: YINGDA TECHNOLOGY LIMITED
SKU: 1: 9 تقسیم کننده PLC
Price: 2.10 USD
Availability: InStock

نام تجاری:	YINGDA
شماره مدل:	1: 9 تقسیم کننده PLC
مقدار تولیدی:	100 قطعه
قیمت:	1.1USD-4.58USD
زمان تحویل:	5-8 روز پس از پرداخت
شرایط پرداخت:	Western Union ، T/T ، MoneyGram

اطلاعات دقیق

توضیحات محصول

اطلاعات دقیق

محل منبع:

چین

گواهی:

ISO, CE

نسبت تقسیم:

تقسیم کننده اپتیکال 1x2

نوع فیبر:

g657a1

از دست دادن:

2.2dB - 16.3dB

اتصال:

کانکتور SC UPC

طول موج:

1260 - 1650 nm

PDL (حداکثر):

0.3dB

استاندارد:

Telcordia GR-1221 و GR-1209

بعد لوله:

60*7*4 میلی متر

جزئیات بسته بندی:

1pc/box،80pcs/carton box

قابلیت ارائه:

10،000 کامپیوتر در هر ماه

توضیحات محصول

Quick Deatails of 1X9 Fibra Optica PLC Splitter

1x9 unbalanced split ratio, not only 50/50
Split ratio type: 85/15 80/20 70/30 60/40
10/90 can be use with 1x8 plc splitter+1x2 FBT coupler
1x3 1x5 1x6 1x12 1x24 can be customized with PLC technology
SC LC FC ST connectors can be use

Optical splitter is one of themost component in the FTTH netowrl. In addition to the conventional 1xN/2XN series splitter, as user’s requirements for the network change, demand for 1x3 1x6 1x5 1x9 1x12 1x24 single mode and multi mode splitters are increasing,and they can better meet the market demand for special light splitting ratio. The predecessor of this 1x9 Splitter is FBT 1X2 fused unbalanced splitter (coupler) and 1x8 PLC balanced splitter . In contrast, the large scale popularization of the 1x9 splitter chip greatly reduces the cost of the related network wiring, but ensure better long term optical performance than fusion couplers.

Fiber Optic splitter Features

• Low insertion loss and high return loss

• PDL automatic screening system(Ultra low PDL is available)

• High reliability and stability

• Connector can up to grade B

• 100% 3D tested by Daisi and Sumix

• High-low temperature cycle test

• 100% test before delivery

• FTTH Cabling solution could be design

1x9 Splitter Specification

Split ratio (%)		85/15	80/20	70/30	60/40
Operating wavelength (nm)		1260-1650
Fiber type		G657A or customized
IL max(dB)	channel 1	1.6	1.8	2.1	2.7
	channel 2-9	21.0	18.6	16.5	15.1
IL uni(dB)	Channel 2-9	1.8	1.8	1.8	1.8
Return loss (dB)		≥55
Directivity (dB)		≥55
PDL (max.)		0.3	0.3	0.3	0.3
Uniformity (max.)		0.8	0.8	0.8	0.8
Wavelength dependent loss (dB)		≤0.3
TDL (max.)		0.5
Operating temperature		-40 ~+85
Storage temperature		-40 ~+85
Dimension (mm) / LXWXH	Bare fiber	60x7x4	60x7x4	60x7x4	60x7x4
	900um	60x7x4	60x7x4	60x7x4	60x7x4
	ABS box	120x80x18	120x80x18	120x80x18	120x80x18

Note:

1. Specified without connectors

2. Add an additional 0.2dB loss including connectors

Unbalanced optical splitter rate Detail information:

Design for Korean Fiber Optic Splitter With SC UPC Connector Singlemode Dual Window FBT Coupler PLC Splitter 0

1x9 unbalanced splitter use the same steel tube 60*7*4mm as 1x8 splitter, input 1, output 9= 4*2+1pcs fiber array.

Fiber color is colorful, loose tube 900um can be customized, like blue, orange, green ,brown, gray, white, red, black, etc, with number marks to distinguish.

Design for Korean Fiber Optic Splitter With SC UPC Connector Singlemode Dual Window FBT Coupler PLC Splitter 1

In order to distinguish the split ration, use different color like blue to mark, this special chip 1x9 ensure unbalanced split ratio not equal types, which can meet special requirements and flexible optical application, and is widely used in 5G FTTR networks;

Output of the optical splitter can divide into 70/30 80/20 60/40 or 85/15% 4types;

All types of optical connectors can be used, like SC FC LC ST; Polish method: UPC, APC；

Input ouput pigtails length: 0.5meter, 1meter, 1.5meter, etc

GPON Splitter Application

Passive optical network (such as EPON, GPON, BPON, FTTX, FTTH, etc.)
Supports multiple users to share a single PON interface.

Design for Korean Fiber Optic Splitter With SC UPC Connector Singlemode Dual Window FBT Coupler PLC Splitter 2

If buy 1:9 optical splitter blockless type only, will pack in blister box with test report. The tube, connectors or cables will be fixed in place in blister box with good protection.

Pre-terminated with connectors and assembly in optical nap box or distribution box is acceptable at factory before delivery.

Frequently work with CTO fiber box
