FTTH Optical Fiber Suspension Dead End Cable Anchor Clamp For ADSS Cable 8-12mm

FTTH Optical Fiber Suspension Dead End Cable Anchor Clamp For ADSS Cable 8-12mm

نام تجاری:	YINGDA
شماره مدل:	PA500
مقدار تولیدی:	10 عدد
قیمت:	0.14USD-10USD
زمان تحویل:	3-7 روز کاری
شرایط پرداخت:	T/T، LC، Paypal،

اطلاعات دقیق

توضیحات محصول

اطلاعات دقیق

محل منبع:

گواهی:

ISO,CE

نوع محصول:

کیت نصب

شامل کردن:

ابزار و لوازم جانبی

سهولت استفاده:

استفاده:

در فضای باز

مادی:

فایبر گلاس نایلون پلاس

برنامه:

نصب کابل

تعمیر کابل ADSS

استاندارد یا غیر استاندارد:

استاندارد

قابلیت ارائه:

100000 در ماه

توضیحات محصول

FTTH Optical Fiber Suspension Dead End Cable Anchor Clamp For ADSS Cable 8-12mm

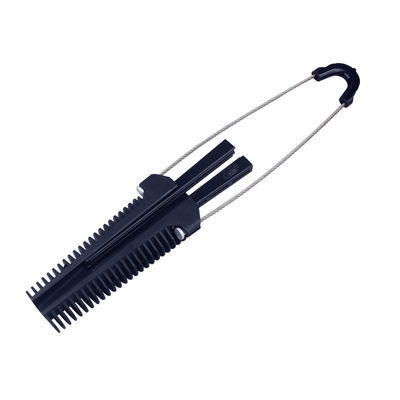

FTTH Optical Fiber Suspension Dead End Cable Anchor Clamp For ADSS Cable 8-12mm 0

Product Description:

Our Cable Installation Kits are the perfect solution for all your cable fitting needs. Designed for ease of use and durability, our kits are guaranteed to provide a smooth surface for your cable installation projects.

Suspension clamp,Use for ADSS cable or Low voltage ABC cable, choose the type according to the diameter of messenger and the cable load.The anchoring clamps are designed for a fast, easy and reliable dead-ending of fiber optic cables on access networks with spans up to 100meter.

Features:

Dead-ending of 6 to 20 mm ADSS cables

Minimum breaking load of 500/600 daN

Installation on any pole hardware fitting: brackets, cross-arms or eye bolt with a min eye Ø of 15 mm

4kV thimble as standard. 11 kV thimble available

All plastic parts are UV resistant and tested in conditions

Light and compact products

Easy, quick and safe dead-ending

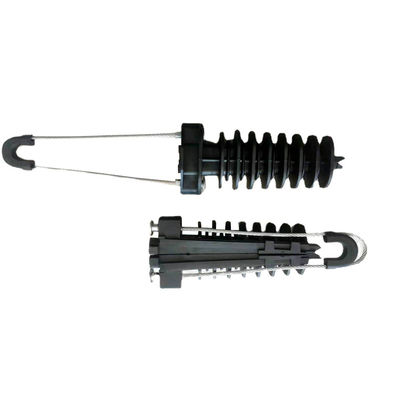

FTTH Optical Fiber Suspension Dead End Cable Anchor Clamp For ADSS Cable 8-12mm 1

Steel Wire: Customize wire length, material, diameter.

Plastic hook: -Avoid wire rope falling out. -Can be installed on the outlet slot plate. -The standard destructive force is greater than the product itself.

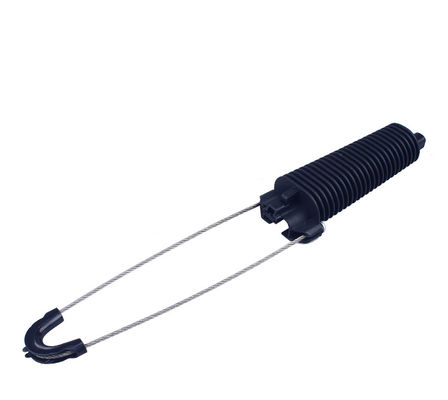

FTTH Optical Fiber Suspension Dead End Cable Anchor Clamp For ADSS Cable 8-12mm 2

High quality:Made of new genuine material PA66 with high strength,good toughness and durability.

Plastic Buckle:Secure the clamp core to prevent it from coming out.

OEM service: -Can print according to your needs. -The product itself with the production date,strong traceability.

Technical Parameters:

Specification

Model	Cable Diameter	Breaking Load	Weight
PA500	4.5-9mm	6KN	199g

Application

YINGDA Cable Installation Kits are suitable for a wide range of applications, including but not limited to:

Aerial Strain Cable Anchor Clamp
Cable Fitting
Dead End Clamp
Suspension Clamp
Pole Line Hardware

These kits are ideal for use in both residential and commercial settings, providing a reliable and efficient solution for cable installation needs.

Real pictures

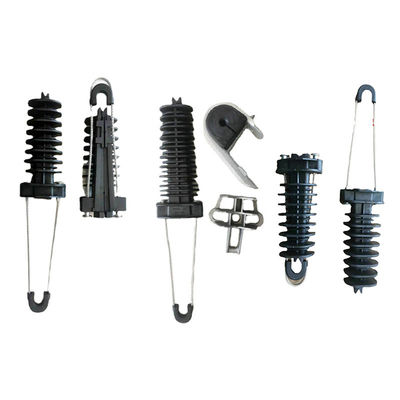

FTTH Optical Fiber Suspension Dead End Cable Anchor Clamp For ADSS Cable 8-12mm 4

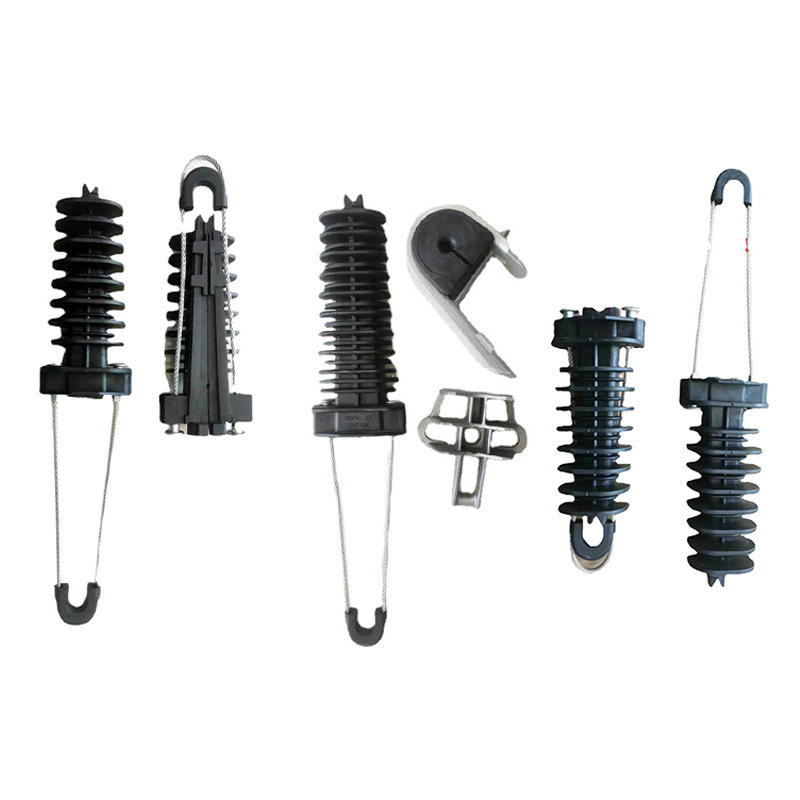

FTTH Optical Fiber Suspension Dead End Cable Anchor Clamp For ADSS Cable 8-12mm 5

About YINGDA

Yingda expert in fiber optic for 13+years, can provide full range of fiber optic cable installation kits on wall, pole, tower, duct, or base station. We ensure products and accessories offered by Yingda are brand new material, export standard pallet loading, with identification marks and labels. Quality assurance with 1-10years, fast delivery time and competitive price.

The kits mainly include:

1.Drop cable kits

2.ADSS OPGW or Figure-8 Cable kits

3.Stainless Steel Band & Bukcle

4. Other Metal Kits

FTTH Optical Fiber Suspension Dead End Cable Anchor Clamp For ADSS Cable 8-12mm 6

FTTH Optical Fiber Suspension Dead End Cable Anchor Clamp For ADSS Cable 8-12mm 7

FAQ:

Q: What is the brand name of this product?
A: The brand name of this product is YINGDA.
Q: Where is this product manufactured?
A: This product is made in China.
Q: What certifications does this product have?
A: This product is certified with ISO and CE.
Q: What is the minimum order quantity for this product?
A: The minimum order quantity for this product is 10pcs.
Q: Is the price negotiable?
A: Yes, the price is negotiable.
Q: How long does the delivery take?
A: The delivery time is 3-7 working days.
Q: What are the payment terms for this product?
A: The payment terms for this product are T/T, LC, and Paypal.
Q: What is the supply ability of this product?
A: The supply ability of this product is 100000 per month.
