1U 24 Port 19" SC SM 24 Cores Fiber Patch Panel SC Pigtail And SC Adapters
-
برجسته
,
,optical distribution frame
-
materialcold-rolled steel
-
steel thickness1.0mm
-
colorwhite
-
dimension430*300*44.5mm
-
cable ports4 pcs at back of the box
-
front portadapter port
-
adapterSC, FC, LC, ST, E2000
-
max capacity24cores SC / 1U ; 2U:48 cores SC
-
customer LOGOsilk print
-
محل منبعچین
-
نام تجاریYINGDA
-
گواهیISO
-
Model NumberGPRF-1U-SC24
-
Minimum Order Quantity100pcs
-
قیمتnegotiable
-
Packaging Details1pc/box, 5pcs per carton box
-
Payment TermsT/T, Western Union, MoneyGram
-
Supply Ability2000pcs/month
1U 24 Port 19" SC SM 24 Cores Fiber Patch Panel SC Pigtail And SC Adapters
1U 24 Port 19" SC SM 24 Cores Fiber Patch Panel SC Pigtail And SC Adapters
Model: GPRF-1U-SC24
Main introduction:
Material: box body using high-quality cold-rolled steel material, and the surface use matt spray
processing technology, strong adhesion, it is not easy to fall off, beautiful and durable
Usage: cable terminal branches terminating, 19 "standard structure, rack installation, suitable for
use in the installation of the FC, SC, St, LC adapter, dust proof deign, easy to operate.
Features
- Dummy drawer optical fiber terminal box, dustproof design,fully closed
- Applied in the branch connection of optical fiber termination
- 19'' standard structure, rack mounted
- FC,SC,ST,LC adapters available
- Artistic appearance,easy for pasting signs.
- Max capcity:48cores SC/ST/FC, LC max. 96cores.
- Pre -terminated with pigtails or adapter in factory is ok.
- Steel thickness:1.0mm
Specifications
| Type |
Dimension (mm) |
Max capacity (core) |
Carton size(mm) |
Qty/ carton (pc) |
G.W (kg) |
| GPRF-1U-SC24 | 430*300*1U | 24 | 485*420*350 | 5 | 25 |
| GPRF-1U-FC24 | 430*300*1U | 24 | |||
| GPRF-1U-2SC12 | 430*300*1U | 24 | |||
| GPRF-1U-2SC24 | 430*300*1U | 48 |
Note:
The body is made of cold rolled steel sheet
FC,ST,SC,LC adapter available
Technical parameters
| parameters | value |
| Dimension(length * width * height) | 430*300*44.5mm |
| Weight | 4kgs |
| Fiber radius of curvature | ≥40mm |
| The additional loss | fiber without additional loss in the holding tray |
| The fiber length in the tray | 1.6m |
| The fiber maximum capacity | SC/FC 48 cores, LC up to 96 cores |
| The applicable temperature range | -40℃～+60℃ |
| The lateral pressure | 500N |
| Anti-shock: | 750N |
Packing list:
* terminal box body: 1 sets
* mounting ears: 1 sets
* adapter mounting screws:96pcs
* welding mark: 4 sets
* optical fiber protection tube: 2 ~ 48pcs
* cable tie: 4 ~ 16pcs

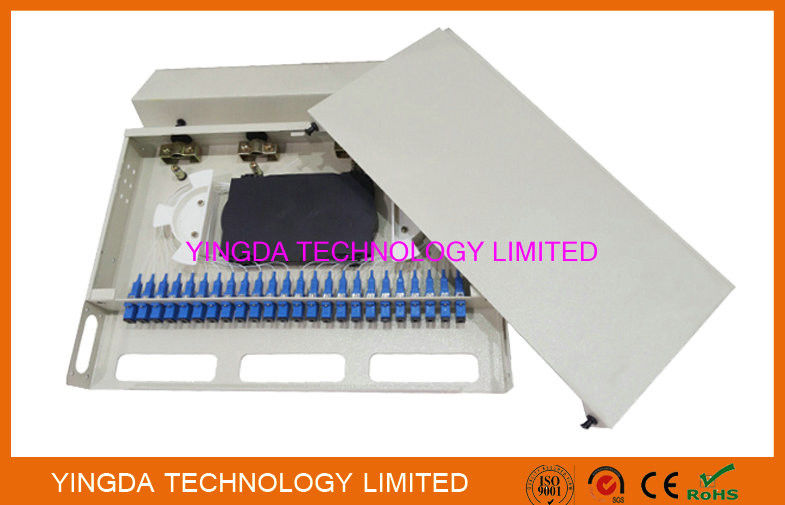

this 19inch fiber distribution panel with 4pcs cable ports at back. dustproof cover can be taken off.
in front, adapter panel: 24ports or 48ports SC or LC duplex, max. LC 96 cores. also with 3 ports for cable go through
Fiber Patch panel inside equipped with splice tray, 24cores each, can pre-terminated with pigtails and adapter at factory before delivery.
24ports ODF fully completed with 24 pcs SC/UPC adapter, SC/UPC pigtails 1 meter 900um simplex singlemode
YINGDA produces all kinds of fiber optic terminal box, fiber optic patch panels. it can be rack moun, sliding out with drawer, dustproof type. The front adapter panel can be fixed, or flexible to change with adapter panels. If you have special requirements we can design and make your own box.
Sample can be offered
Customer logo can be print.
Pigtails or adapters can be pre-temrinated at factory.
100% brand new material and package.
