4 Port UV Weather Resistant FTTH Fiber Termination Box 4 Fibers SC Wall Mount Box

4 Port UV Weather Resistant FTTH Fiber Termination Box 4 Fibers SC Wall Mount Box

نام تجاری:	YINGDA
شماره مدل:	FTB104C 106C
مقدار تولیدی:	100PCS
قیمت:	0.18USD-4.29USD
زمان تحویل:	5-8 working days
شرایط پرداخت:	Western Union, T/T, MoneyGram

اطلاعات دقیق

توضیحات محصول

اطلاعات دقیق

محل منبع:

گواهی:

Capacity:

4 fibers single

Cable inport:

1 inports, 4 outports

Dimension:

210*140*40mm

Cable diameter:

7-10mm

Material:

ABS anti-UV, flame retartant

Color:

white

Application:

FTTH FTTX,FTTB

Adapter:

4xSC, 4XFC,4X LC duplex

Cable output:

7-10mm or 2.0*3.0mm FTTH drop cable

Packaging Details:

1 pc / box, 60 pcs / carton shipping box

Supply Ability:

100000 pcs / month

برجسته کردن:

,

fiber optic distribution box

توضیحات محصول

4 Port UV Weather Resistant FTTH Fiber Termination Box, 4 Fibers SC Wall Mount Box

Model:FTB104C

YINGDA 4 port FTTH fiber termination box is wall mountable and rack mountable and can be used for exterior walls, basements, and other locations needing FTTH. The box is UV and weather resistant and can be used with a variety of adapters with a SC footprint.

Features

Wall mountable and rack mountable
UV Resistant
Weather Resistant
The base and cover of the box adopts a "self-clip" method, which is easy and convenient to open and close
Can be used with SC simplex adapters or LC duplex adapters with a SC footprint
The max capacity is 4 fibers

Specifications

Material	PC + ABS
UV Resistant	Yes
Weather Resistant	Yes
Size (LxWxD)	21014040mm
Splitting	1piece 1:4 micro splitter
Capacity	4 single fibers (max)
Cables	Not included

More pictures

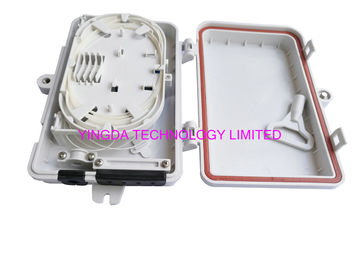

external internal

4 Port UV Weather Resistant FTTH Fiber Termination Box 4 Fibers SC Wall Mount Box 0

terminal box FTB104C is made of ABS+PC export material, high strength, high quality
compact size, light weight
total box is white color, with special wrench to open
it is self-clip design, easy open and close repeatly.
the box is waterproof, IP65 protection level with black rubber seal and silicon rubber sealing cirle in red
good performance in harsh environment

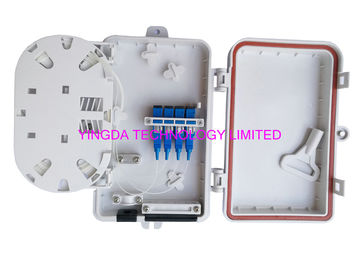

the adapter panel under the splice tray is fix on the box, max. can install 4 pieces X SC simplex adapters, but also this adapter panel can change into FC, ST,LC etc., see below picture:

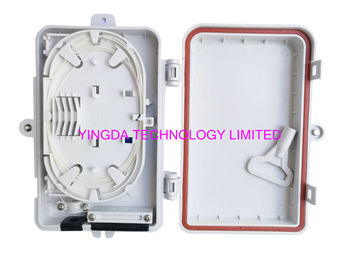

cable ports from top side cable ports from back side

4 Port UV Weather Resistant FTTH Fiber Termination Box 4 Fibers SC Wall Mount Box 3

cable ports: 1inports, 4 outports
inports cable diameter: 7-10mm;
outports cable diameter: 0.9mm,2.0mm,3.0mm or 2x3.0mm drop cable

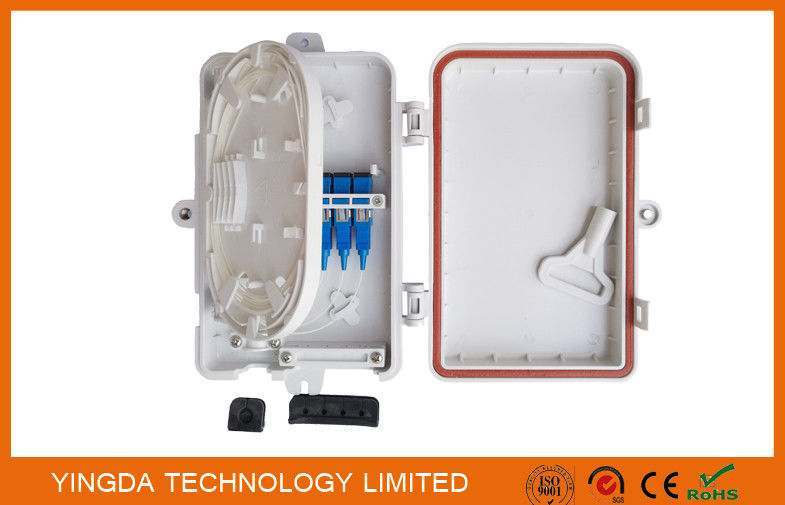

cable ports and splice tray view in details

4 Port UV Weather Resistant FTTH Fiber Termination Box 4 Fibers SC Wall Mount Box 5

Package information

Model	Carton size	Carton qty	G.W.
FTB104C/106C	51.547.546.5 cm	60 pcs	22.5 kgs
