1 Port FTTH Box indoor Wall Mounting Resident Fiber Optical Distribution Box Faceplate

1 Port FTTH Box indoor Wall Mounting Resident Fiber Optical Distribution Box Faceplate

نام تجاری:	YINGDA
شماره مدل:	FTB86D
مقدار تولیدی:	100 pcs
قیمت:	0.18USD-4.29USD
زمان تحویل:	5-8days after payment

اطلاعات دقیق

توضیحات محصول

اطلاعات دقیق

محل منبع:

گواهی:

material:

ABS + PC

color:

white

capacity:

2 Core

adapter:

1pcs SC simplex, 1 pcs LC duplex coupler

output port:

adapter or indoor cable, ftth drop cable

size:

90*120*25 mm

cable diameter:

Φ7~Φ14mm

application:

wall mount

cable port:

1in 1 out

feature:

flame retardant

Packaging Details:

1pc per plastic bag, 260pcs per carton box

Supply Ability:

500,000 pcs per month

برجسته کردن:

,

fiber optic distribution box

توضیحات محصول

1 Port FTTH Box indoor Wall Mounting Resident Fiber Optical Distribution Box Faceplate

Model:FTB86D

Used in the end termination of residential buildings and villas, to fix and splice with pigtails.

Features

Small size, light weight, pleasing in appearance
Can be installed on the wall with mechanical protective function
May adapt variety of optical connection styles.
Optical fiber can be managed effectively
Set strengthen device and fiber optic cable mounting seat
SC 1cores, LC 2 cores.
Max capacity for SC 1 cores or LC 2 cores
Suitable for indoor wall mount

Specification

Item	FTB-86D
Dimension(mm)	H120×W90×D25
Weight(Kg)	0.075
Cable diameter (mm)	Φ7~Φ14
Cable port	2 holes
Max capacity of splice tray	2-4(single fiber)
Max No of splice tray	1
Max capacity of cable	4(single fiber)

Kit content

Item	Type	Quantity
Fiber protective sleeves	60mm	According to cores
Cable tie	60mm	10×splice tray
Nails of installation	Nail	2pcs

Packing information

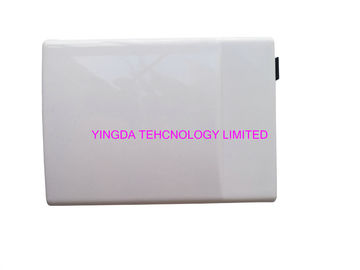

1 Port FTTH Box indoor Wall Mounting Resident Fiber Optical Distribution Box Faceplate 0

Model	Dimension (mm)	Outer carton dimension (mm)	Outer carton weight(kg)	No of units per carton(pcs)
FTB-86D	120×90×25	530x390x535	23.0	260

Installation tool

1 Knife

2 Screwdriver

3 Plier

Component

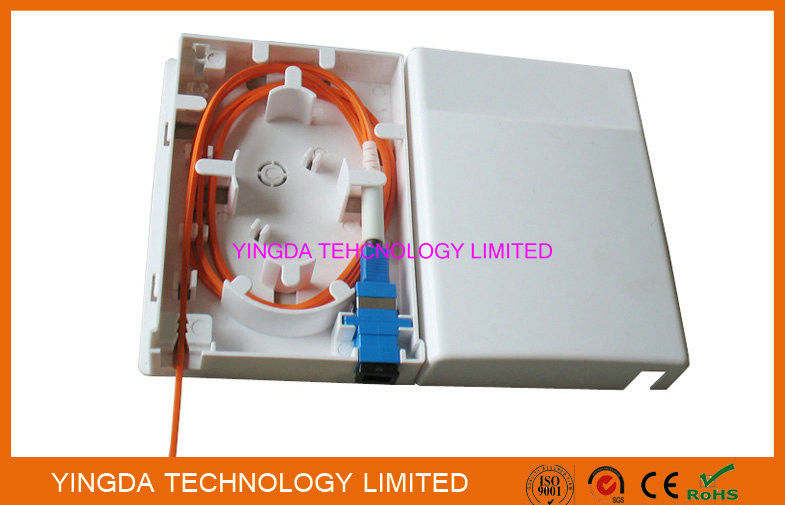

1 Port FTTH Box indoor Wall Mounting Resident Fiber Optical Distribution Box Faceplate 2

1 Port FTTH Box indoor Wall Mounting Resident Fiber Optical Distribution Box Faceplate 3

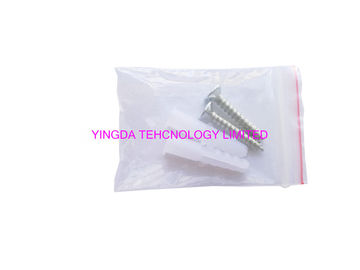

terminal box can use 1x SC adapter, all box include wall mounting accessories.

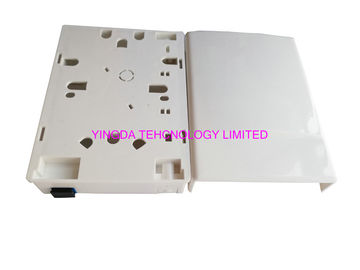

1 Port FTTH Box indoor Wall Mounting Resident Fiber Optical Distribution Box Faceplate 5

all the box is self-clip design, slide in

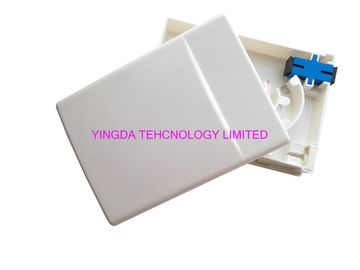

1 Port FTTH Box indoor Wall Mounting Resident Fiber Optical Distribution Box Faceplate 7

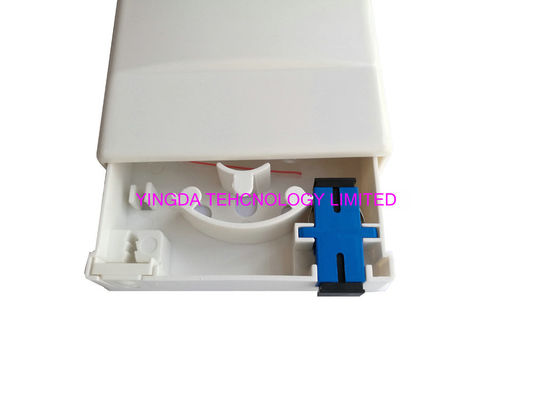

there is 1 cable port in front and back, and 1 pc SC adapters.

Method of installation

1 Measure distance of two installation holes, then drill holes on the wall, then fix the base of the box on the wall by expansion nails.

2 Peel cable, take out required fibers, then fix the input cable on the body of the box..

3 Splice drop cable and pigtail as below splice slot.

4 Store connected fibers on the below tray, then fixed by tie, then lead out on the output port by 1 Simplex SC or 1 Duplex LC adaptors. The lower part of the adaptor slot can be remove by plier.

5 Insert the body on the base’s hook, close cover, the installation is over.
