White Fiber Optic PLC Splitter Steel Tube Blockless Mini Module 900um
برای نمونه و کوپن رایگان با من تماس بگیرید.
WhatsApp:0086 18588475571
ویچت: 0086 18588475571
اسکایپ: sales10@aixton.com
اگر نگرانی دارید، ما به صورت آنلاین 24 ساعته راهنمایی می کنیم.
xsplit ratio | 1:8 splitter module | fiber type | SMF-28e G657A1 |
---|---|---|---|
insertion loss | 10.2dB | Uniformity (Max.) | 0.8dB |
wavelength | 1260 - 1650 nm | PDL(Max.) | 0.3dB |
Standard | Telcordia GR-1221 and GR-1209 | tube dimension | 60*7*4mm |
input and output length | 1meter | cable type | tight buffer |
cable color | white | cable diameter | 0.9mm |
برجسته | ,,fbt coupler |

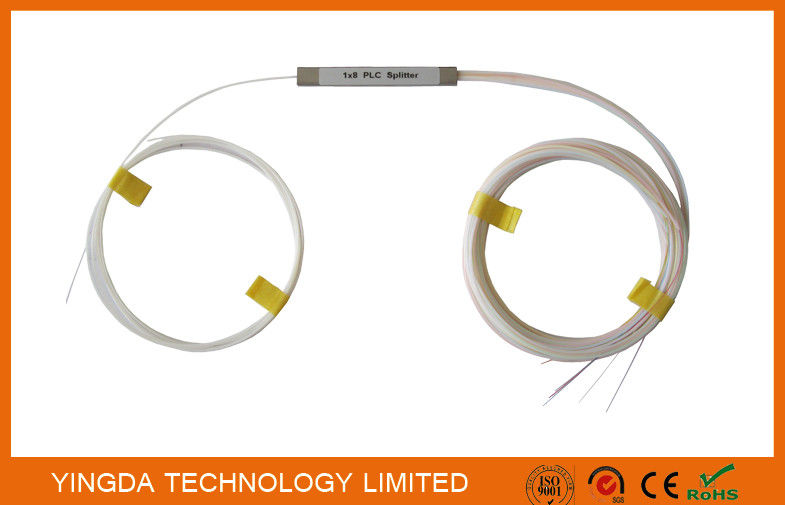

1:8 Fiber Pon Splitter Steel Tube Blockless Mini Module 900um,1x8 Optical splitter 1Meter
Fiber optical splitter is used to split the fiber optic light into several parts at a certain ratio. The fiber optic splitter is an important passive component used in PON FTTX networks. There are mainly two kinds of passive FTTH optical splitters: one is the traditional fused type splitter as known as FBT coupler or FBT WDM optical splitter, which features competitive price; the other is the PLC splitter based on the PLC (Planar Lightwave Circuit) technology, which has a compact size and suits for density applications.
Features
· Good uniformity and low insertion loss
· Low Polarization Dependent Loss
· Excellent Mechanical
· Stability Telecordia GR-1221 and GR-1209
· Components through TLC-Certified,Conform to YD1117-2001
· Operating environment: -40°C to +85°C
· High Polarization Extinction Ratio & Excellent Uniformity
· G.657A Fiber
Application
· Fiber to the point (FTTX)
· Fiber to the home (FTTH)
· Passive optical networks(PON, GEPON)
· Local area networks (LAN)
· Cable television (CATV)
· Telecommunication Networks
· Testing Equipment
Specifications
Parameter | Port Configuration | ||||||||
1X2 | 1X4 | 1X8 | 1X16 | 1X32 | 1X64 | ||||
Fiber Type | G.657A | ||||||||
Operating Wavelength(nm) | 1260~1650 | ||||||||
Insertion Loss(dB) | Typical | 3.9 | 7.0 | 10.2 | 13.2 | 16.2 | 19.7 | ||
Max | 4.2 | 7.4 | 10.7 | 13.7 | 17.1 | 21.2 | |||
Loss Uniformity (dB) | Max | 0.4 | 0.6 | 0.8 | 1.2 | 1.5 | 2.5 | ||
Return Loss (dB) | Min | 50 | 50 | 50 | 50 | 50 | 50 | ||
PDL (dB) | Max | 0.2 | 0.2 | 0.3 | 0.3 | 0.3 | 0.4 | ||
Directivity (dB) | Min | 55 | 55 | 55 | 55 | 55 | 55 | ||
Wavelength Dependent Loss(dB) |
Max | 0.3 | 0.3 | 0.3 | 0.5 | 0.5 | 0.8 | ||
Temperature Dependent Loss(-40~+85 °C) |
Max | 0.5 | 0.5 | 0.5 | 0.8 | 0.8 | 1.0 | ||
Operating Temperature (°C | -40~+85 | ||||||||
Storage Temperature (°C) | -40~+85 |
Note:
Above is the parameters for Blockless Fiber PLC Splitter with connectors.
Without connectors, the insertion loss will be 0.2dB lower.
More pictures

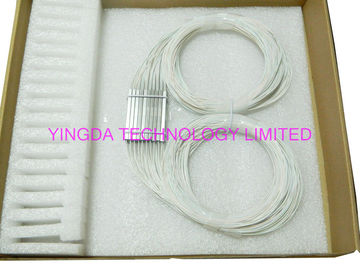

PLC splitter coulpler 1x8 without connectors pack in a box with foam, good performance, and protection to fibers, save shipping cost and volume.

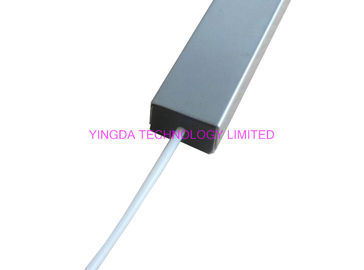

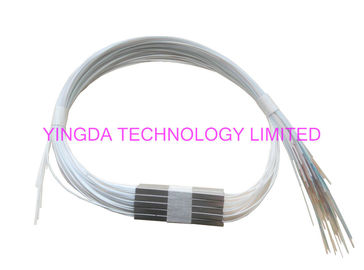

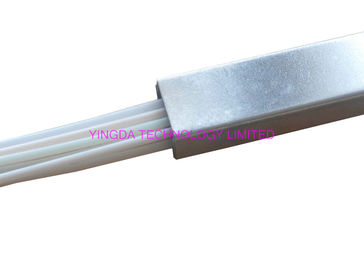

each steel tube:60*7*4mm, 2row / 4fibers outputs, with figure ring on each fiber, "input" on input pigtails.
and there can stick a label: logo, serial number and product name on customer request.
Ordering Information
PLCS | - | - | - | - | - | - | - |
Structure |
Fiber Type |
Package | Input | Output | Length | Connector | |
Structure | 0101=1x1, 0202=2x2, ..., 0164=1x64, 0264=2x64 | ||||||
Fiber Type | 1=G652D, 2=G657A1, 3=G657A2 | ||||||
Package Dimension | A1, A2,...A12, D, E, F, K, U, G, C, T, R, X | ||||||
Input Type |
B=250μm Bare Fiber ,L=900µm Loose tube, S=2.0mm, R=3.0mm, 0=Adapter |
||||||
Output Type |
B=250μm Bare Fiber , L=900µm Loose tube, S=2.0mm, R=3.0mm, F=splitter, 0=Adapter |
||||||
Pigtail Length |
05=0.5m, 10=1.0m, 100=100m, 0=Adapter, 15/10=1.5m input/1.0m output, X=Others |
||||||
Connector Type |
FU=FC/UPC, FA=FC/APC, SU=SC/UPC, SA=SC/APC, ST=ST/UPC, LU=LC/UPC, LA=LC/APC, MPA=MPO/APC, FU/FA=FC/UPC input / FC/APC output, 00=None, X=Others |
