1x16 Fiber Optic PLC Splitter Planar Lightwave Circuit Splitter

1x16 Fiber Optic PLC Splitter Planar Lightwave Circuit Splitter

محصولات - فیبر نوری PLC Splitter
  • برجسته

    ,

    ,

    plc splitter

  • split ratio
    1:16 splitter with fanout kits
  • connector
    SC/APC, SC/UPC, LC/APC,LC/UPC
  • fiber type
    corning fiber SMF -28e G657A1
  • insertion loss
    13.6dB
  • Uniformity (Max.)
    1.4dB
  • wavelength
    1260 - 1650 nm
  • PDL(Max.)
    0.3dB
  • Standard
    Telcordia GR-1221 and GR-1209
  • tube dimension
    60*12*4mm
  • cable diameter
    0.9mm
  • cable color
    white
  • محل منبع
    چین
  • نام تجاری
    YINGDA
  • گواهی
    ISO
  • Model Number
    1*16 fanout splitter
  • Minimum Order Quantity
    100 pcs
  • قیمت
    negotiable
  • Packaging Details
    2pc/ box, 20pcs/carton box
  • Delivery Time
    5-8days after payment
  • Supply Ability
    10,000 pcs per month

1x16 Fiber Optic PLC Splitter Planar Lightwave Circuit Splitter

  • 1x16 Fiber Optic PLC Splitter Planar Lightwave Circuit Splitter
  • 1x16 Fiber Optic PLC Splitter Planar Lightwave Circuit Splitter
  • 1x16 Fiber Optic PLC Splitter Planar Lightwave Circuit Splitter
  • 1x16 Fiber Optic PLC Splitter Planar Lightwave Circuit Splitter
دریافت قیمت اکنون تماس بگیرید

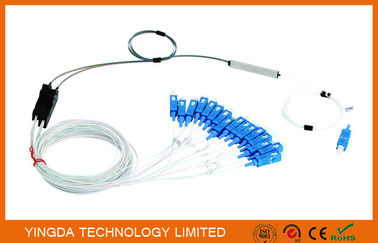

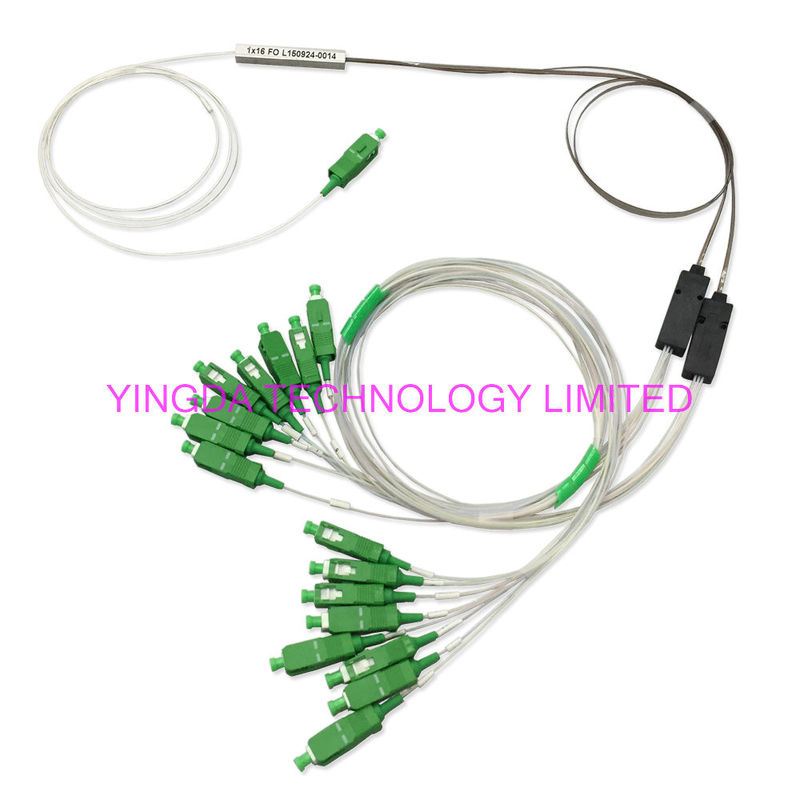

1x16 Single Mode PLC Splitter (Planar Lightwave Circuit Splitter) with Fan Out SC/UPC Connectors





Singlemode standard tree coupler module 1X3, 3X3, 1X4, 1X8, 1X16, 1X32 and 2X4, 2X8, 2X16 and 2X32 port ratios are available. They offer very low insertion loss, low polarization dependence, well controlled uniformity as well as excellent environmental stability. Standard tree coupler modules have been extensively used to split and mix optical signals in CATV, LANs and all other kinds of optical communication systems.



Features

Singlemode PLC Splitters

in a variety of package types and configurations

Optical performance 100% factory tested

Operating Window: 1260~1650nm

Polarization Stability (dB): ≤ 0.50dB

Conforms to Telcordia GR-1209-CORE-2001 and GR-1221-CORE-1999

FC SC ST LC connectors available

UPC APC is available



Technical Specs for PLC Splitter with Connector



1xn SPLITTER



Item 1x2 1x4 1x8 1x16 1x32 1x64 1x128
Fiber Type G.657.A
Working Wavelength 1260nm~1650nm
Standard Insertion Loss(dB) ≤4.2 ≤7.6 ≤10.7 ≤14.0 ≤17.2 ≤20.8 ≤24.0
P-Grade Insertion Loss(dB) ≤4.0 ≤7.4 ≤10.5 ≤13.8 ≤17.0 ≤20.4 ≤23.7
Uniformity(dB) ≤0.6 ≤0.8 ≤0.8 ≤1.0 ≤1.5 ≤2.0 ≤2.0
PDL(dB) ≤0.2 ≤0.2 ≤0.3 ≤0.3 ≤0.3 ≤0.4 ≤0.5
Wavelength Dependent Loss(dB) ≤0.6 ≤0.8 ≤0.8 ≤1.0 ≤1.5 ≤2.0 ≤2.0
Return Loss(dB) ≥50
Directivity(dB) ≥55
Operating Temp.Gange -40℃~+85℃
Note:The above parameter is for Splitter with connector.If w/o connector,insertion loss will reduce by 0.2dB.



2XN splitter

Item 2x2 2x4 2x8 2x16 2x32 2x64 2x128
Fiber Type G.657.A
Working Wavelength 1260nm~1650nm
Standard Insertion Loss(dB) ≤4.4 ≤8.0 ≤11.0 ≤14.6 ≤17.8 ≤21.0 ≤24.4
P-Grade Insertion Loss(dB) ≤4.2 ≤7.7 ≤10.8 ≤14.1 ≤17.4 ≤20.7 ≤24.0
Uniformity(dB) ≤0.8 ≤1.0 ≤1.2 ≤1.5 ≤1.8 ≤2.0 ≤3.0
PDL(dB) ≤0.2 ≤0.2 ≤0.3 ≤0.3 ≤0.3 ≤0.4 ≤0.5
Wavelength Dependent Loss(dB) ≤0.8 ≤1.0 ≤1.2 ≤1.5 ≤1.8 ≤2.0 ≤3.0
Return Loss(dB) ≥50
Directivity(dB) ≥55
Operating Temp.Gange -40℃~+85℃
Note:The above parameter is for Splitter with connector.If w/o connector,insertion loss will reduce by 0.2dB.
