Outdoor 12 Core Fiber Optic Distribution Box / Ftth Terminal Box For 1x8 Optical Splitter SC Adapter
برای نمونه و کوپن رایگان با من تماس بگیرید.
WhatsApp:0086 18588475571
ویچت: 0086 18588475571
اسکایپ: sales10@aixton.com
اگر نگرانی دارید، ما به صورت آنلاین 24 ساعته راهنمایی می کنیم.
xmaterial | PC+ABS | Capacity | 12 fibers |
---|---|---|---|
adapter qty | 12pcs SC adaptor in 3way | split ratio | 1x2,1x4,1x8 micro splitter optional |
color | white | size | 250*190*39mm |
connector insertion loss | <0.2dB | OME or sample | ok |
cable port | cable gland, 2 inports, 16 outports | cable diameter | 16mmin, 3mmdrop cable out |
برجسته | ,,splitter distribution box |

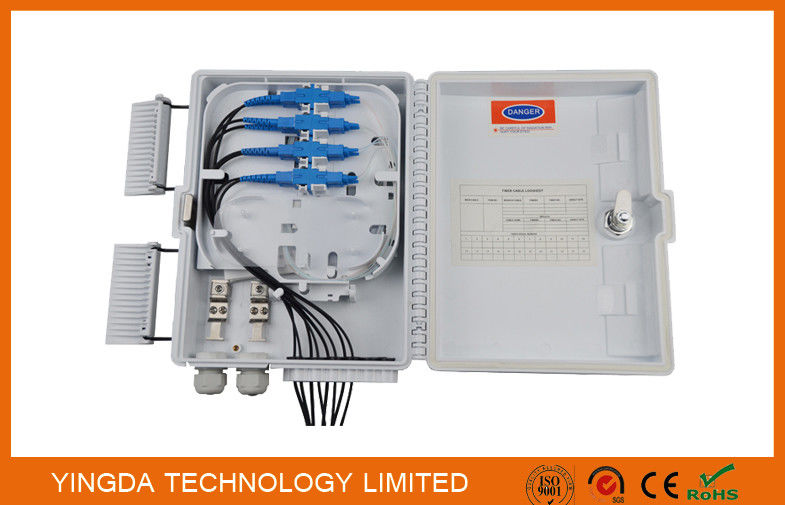

Outdoor 12Core Fiber Optic Distribution Box / Ftth Terminal Box For 1x8 Optical Splitter SC Adapter IP65
FDB0216G optic fiber boxes is applicable PLC coupler to a terminal access links FTTH access system. It is especially for connecting and protection for fiber cable for FTTH.
Features
- The two-tier structure, the upper wiring layer optical splitter, lower for fiber splicing layer.
- Optical Splitter module drawer modular design with a high degree of interchangeability and versatility;
- Up to 12pcs FTTH drop cable
- 2 ports for outdoor cable in
- 12 ports for drop cable or indoor cable out
- can accommodate 1x4 and 1x8 1x16 PLC splitter (or 2x4 or 2x8)
- Wall mounting and pole mounting application
- IP 65 waterproof protection class
- Indoor or outdoor use
- Suitable for 12x SC / LC duplex adapter
- Pre-terminated pigtails,adapters, plc splitter available.
White Color Box
Gray Color Box
Cable Entry Port can do cable gland or uncut cable express port like below:
Application
1.Widely used in FTTH (Fiber To the Home) access network
2.Telecommunication Networks
3.CATV Networks
4.Data communications Networks
5.Local Area Networks
6.Suitable for Telekom UniFi
Specifications
Model | FDB0216G |
Dimension | 250*190*39mm |
Max capacity |
12CORES ; PLC:1X2,1X4,1X8,1X12 |
Max adapter | 12X SC simplex, LC duplex adapter |
Max splitter ratio | 1x2,1x4,1x8,2x4,2x8 mini splitter |
Cable port | 2in 16out |
Cable diameter | In: 16mm; out:2*3.0mm drop cable or indoor cable |
Material | PC+ABS |
Color | White, black, gray |
Environmental requirement | Working temprature : -40℃~+85℃ Relative humidity : ≤85% (+30℃) Atmospheric pressure : 70Kpa~106Kpa |
Main technical | Insertion loss : ≤0.2db UPC return loss : ≥50db APC return loss : ≥60db Life of insertion and extraction : >1000 times |
Thunder-proo technical |
The grounding device is isolated with the cabinet, isloation resistance is less than 2*104MΩ/500V(DC); IR≥2*104MΩ/500V(DC)
|
Standard Accessories
Cabinet keys; Plastic expansion screw, Self-tapping screws; Hose clamps, Shrinkable sleeves, buffer tube, pole mount or wall mount kits etc.
