Single Mode FTTH Drop Cable , FRP Non - Metallic Strength 2 Core Fiber Optic Cable

Name: Single Mode FTTH Drop Cable , FRP Non - Metallic Strength 2 Core Fiber Optic Cable
Brand: YINGDA TECHNOLOGY LIMITED
SKU: GJXFH-02
Price: 29.18 USD
Availability: InStock

نام تجاری:	YINGDA
شماره مدل:	GJXFH-02
مقدار تولیدی:	20km
قیمت:	قابل مذاکره
زمان تحویل:	5 working days
شرایط پرداخت:	T/T or western Union

اطلاعات دقیق

توضیحات محصول

اطلاعات دقیق

محل منبع:

چین

گواهی:

ISO

fiber count:

2 Cores

strength member:

FRP non-metallic

pack:

2KM / drum(reel) or 3km/ drum, 4km/drum

Name::

butterfly figure 8 indoor drop cable

cable color:

white

cable shape:

square / flat

Fiber type::

G657A1 G657A2 G652D

Package::

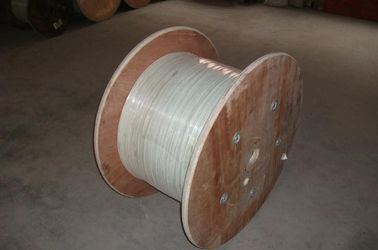

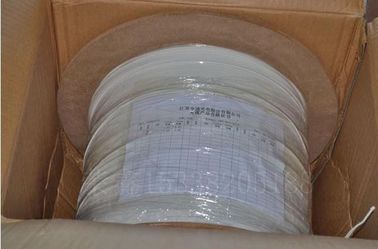

wooden drum and carton box

outer jacket:

LSZH

Packaging Details:

2km / reel or cusotmized

Supply Ability:

500km / month

برجسته کردن:

,

fiber optic drop cable

توضیحات محصول

FTTH Drop Cable Indoor Single Mode 2 Cores Fiber Optic Cable FRP Non-Metallic Strength

Description

Butterfly fiber optic cable is a cable designed specifically for FTTH which have both indoor and

outdoor optical cable features. It adopts double reinforcement figure 8 structure, can directly drop

into the building household from the fiber optic splice closure. Particularly it suitable to use together

with fast connector(field installation connector), mechanical splice; also it can be separate the

suspended fiber core and then splice with others.

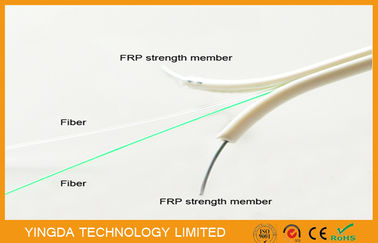

Cable structure

Single Mode FTTH Drop Cable , FRP Non - Metallic Strength 2 Core Fiber Optic Cable 0

Features

Special high bending radius fiber, provides wider bandwidth, enhance network transmission
characteristics, easily reached 100M /S, realize broadband, television and telephone triple
play.
Two parallel reinforcement members ensure fiber optic cable with good compression perform
ance, protect the fiber.
Simple structure, light weight, strong practicability.
The unique groove design, easy separation, convenient connection, simplify the installation
and maintenance.
Low smoke halogen-free flame retardant sheath, environmental protection
Optical properties of <0.34dB: 1310nm, 1550nm<0.21dB

Technical parameters

Cable code	Fiber count	Cable size (mm)	Cable weight (kg/km)	Tensile(N)		Crush (N/100mm)		Crush resistance		Temperature (°C)
Cable code	Fiber count	Cable size (mm)	Cable weight (kg/km)	Long term	Short term	Long term	Short term	Dynamic	Static	Temperature (°C)
GJXFH-01	1	1.6*2.0	5	40	80	500	1000	30D	15D	-20~+60
GJXFH-01	1	2.0*3.0	8	40	80	500	1000	30D	15D
GJXFH-02	2	2.0*3.0	8.5	40	0	500	1000	30D	15D
GJXFH-04	4	2.0*3.0	9	40	80	500	1000	30D	15D
GJXFH-06	6	3.0*4.0	14	45	85	500	1000	30D	15D
GJXFH-08	8	3.0*4.0	16	50	90	500	1000	30D	15D
GJXFH-12	12	3.0*4.0	19	55	95	500	1000	30D	15D

Fiber type		G652D	50/125	62.5/125	G657A1	G657A2	OM3-150	OM3-300	OM4
Jacket material		PE				LSZH
Features:
Special low beng sensitivity fiber provodes high bandwidth
Two parallel FRP strength member ensures good performance of crush resistance to protect the fiber
Simplex structure, light weight,high practicability
Low smoke zero halogen and flame retardant sheath

Single Mode FTTH Drop Cable , FRP Non - Metallic Strength 2 Core Fiber Optic Cable 1

Single Mode FTTH Drop Cable , FRP Non - Metallic Strength 2 Core Fiber Optic Cable 2
