LC Multimode Fiber Optic Adapter Coupler Duplex Ceramic Ferrule , LC Fiber Adaptor

مقدار تولیدی:	500pcs
قیمت:	0.04USD-2.15USD
بسته بندی استاندارد:	50 pc / box
Delivery period:	5 working days
روش پرداخت:	T/T or western Union
ظرفیت تامین:	200km/ month

اطلاعات دقیق

توضیحات محصول

امتیازها و نظرات

اطلاعات دقیق

محل منبع

نام تجاری

YINGDA

گواهی

ISO,SGS

Model Number

AD-LC-DX

Fiber count:

duplex

connector material:

plastic

adapter color:

beige

sleeve material:

ceramic

fiber type:

mulitmode 50/125um

polish mode:

working temperature:

-40 ~ +80 °C

wavelength:

850nm

appliction:

adapter panel, LGX panel, rack mount panel

نام محصول:

کابل mpo به mpo، کابل mpo به lc، کانکتور نوری mtp، کاست mtp

برجسته کردن:

,

fiber optic adaptor

توضیحات محصول

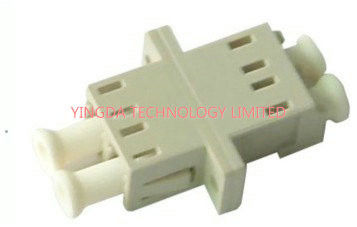

LC Multimode Adapter Coupler Duplex Ceramic Ferrule, LC Fiber Adaptor

Fiber Optic Adapter (coupler), is connector during optical fiber transmission, both ends can be

inserted into the different optical fiber connector such as FC, SC, ST, LC, MTRJ, MPO, E2000

to make them interchange,and widely used in optical optical distribution frame (ODF), optical

Fiber communication equipment, instruments, etc., superior performance, stable and reliable.

Some call fiber optic adapter as optical fiber connectors, in fast,its two different things.

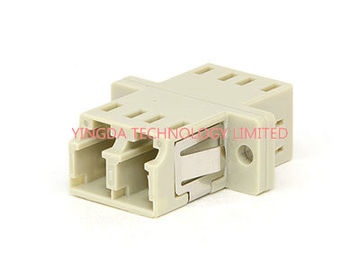

Adapter Structure

LC Multimode Fiber Optic Adapter Coupler Duplex Ceramic Ferrule , LC Fiber Adaptor 0

Features

Conforms to Telcordia GR-326-CORE standard
Conforms to YD/T-1272.3 standard
Good interchangeability
Low insertion loss
Plug connection, easy and fast to install or uninstall

Application

CATV network, FTTH, Telecommunication,etc

Specification

Item	SM			MM
	PC	UPC	APC
Ferrule type	Convex spherical		big chamfer or step	Convex spherical
Ferrule ID (um)	125			127
Main body material	PBT or ABS
Connector type(mm)	0.9/2.0/3.0mm, simplex, duplex
Operating temperature (°C)	-40 ~+85
Storage temperature (°C)	-40 ~+85

Order information

Connector type: SC, LC, MU, E2000, MT-RJ, FC, ST, DIN, D4, FDDI, SMA, etc
Connector color: beige, blue, green, aqua, purple
Fiber type: SM, OM1, OM2, OM3, OM4
Type: simplex, duplex
Polish: UPC PC APC SPC

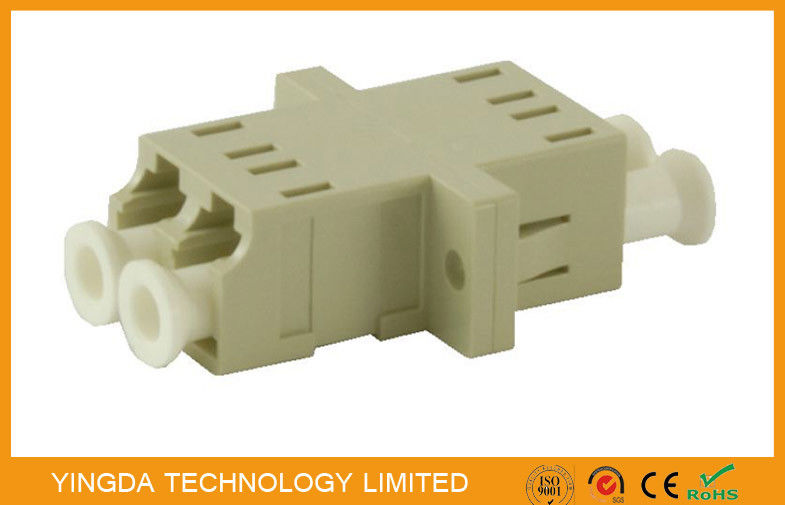

LC Multimode Fiber Optic Adapter Coupler Duplex Ceramic Ferrule , LC Fiber Adaptor 1
