FTTH Rack Panel LC Quad Adapter , LC MM Optical Fiber Adapter Customized

مقدار تولیدی:	100 pcs
قیمت:	0.04USD-2.15USD
بسته بندی استاندارد:	20 pcs / blister box
Delivery period:	3working days
روش پرداخت:	T/T or western Union
ظرفیت تامین:	100000pcs/month

اطلاعات دقیق

توضیحات محصول

امتیازها و نظرات

اطلاعات دقیق

محل منبع

نام تجاری

YINGDA

گواهی

ISO,SGS

Model Number

AD-LC-MM-Q4

Fiber count:

4 Core, quad fibers

connector material:

plastic

dustcap color:

beige / grey

sleeve material:

ceramic

fiber type:

mm / multimode

polish mode:

sky window:

can be customized

نام محصول:

کابل mpo به mpo، کابل mpo به lc، کانکتور نوری mtp، کاست mtp

برجسته کردن:

,

bare fiber adapter

توضیحات محصول

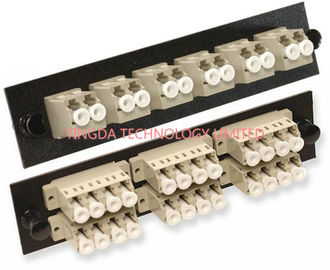

FTTH Rack Adapter Panel LC Quad Adapter, LC MM Optical Fiber Adapter

This coupler provides a solution for extending a current run of fiber optic cabling. This coupler

is constructed from highgrade plastic and has been designed and engineered for durability

and a long life.

Adapter structure

Advantage:

Telcordia GR-326, IEC, TIA/EIA Standard compliant.
100% Optical performance inspection.
Low Insertion Loss.
RoHS Compliance.
Customized design and production.

Material List:

Sleeve: Ceramic or PB
Housing: PC , Flammability UL94 V-0
Dust cap: PVC, Flammability UL94 V-0
Clip:s tainless steel

Optical characteristic

Optical Performance

Premium Grade

Standard Grade

Insertion Loss

≤0.1dB

≤0.2dB

Durability

1000 times

Environment and Mechanical Properties

Item	Test condition	Conformance	Test result
Vibration	10-55Hz, 1.5mm, 60min	IEC61300-2-1	≤0.2dB
Mating Durability	1000 Mating, clean every 25 mating.	IEC61300-2-2	≤0.2dB
Impact	1.5m, 8 drops	IEC61300-2-6	≤0.2dB
Strength of Coupling Mechanism	40N, 10Min, L=22-28cm	IEC61300-2-12	≤0.2dB
Temperature Cycling	40ºC to +75ºC, 40 cycles	IEC61300-2-22	≤0.2dB
Temperature humidty cycling	40ºC, 95%, 96Hr	IEC61300-2-21	≤0.2dB
Operating Temperature	-40ºC to +85ºC		≤0.2dB
Storage Temperature	-40ºC to +85ºC		≤0.2dB

This adapter have two types; A and B

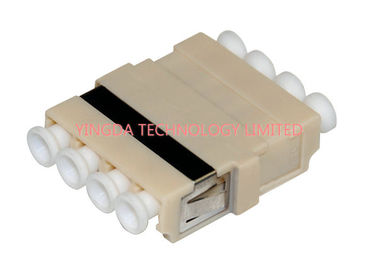

Type A: have sky window like below

FTTH Rack Panel LC Quad Adapter , LC MM Optical Fiber Adapter Customized 1

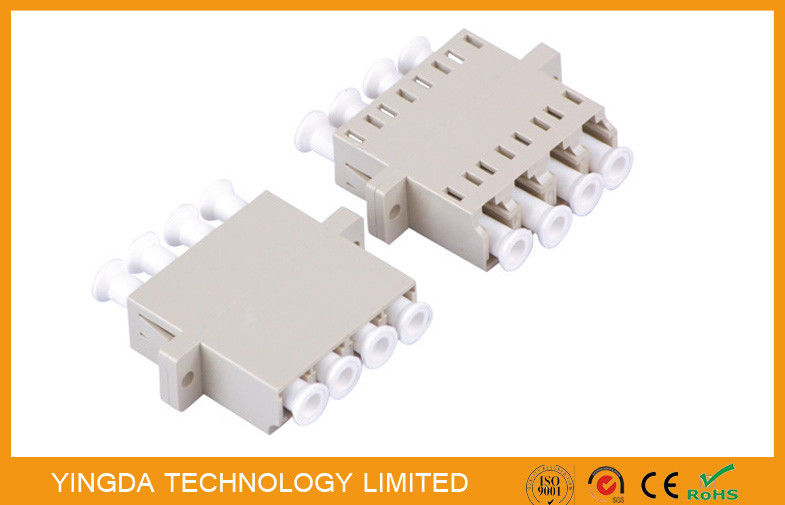

Type B: don't have sky window, the surface is smooth, see below:
