PBT White Plastic MM DX Fiber Optic Adapter / Coupler , SC Duplex Adapter

مقدار تولیدی:	1000pcs
قیمت:	0.04USD-2.15USD
بسته بندی استاندارد:	20 pc / box
Delivery period:	5 working days
روش پرداخت:	T/T or western Union
ظرفیت تامین:	200km/ month

اطلاعات دقیق

توضیحات محصول

امتیازها و نظرات

اطلاعات دقیق

محل منبع

نام تجاری

YINGDA

گواهی

ISO,SGS

Model Number

AD-SCM1-02

Fiber count:

duplex

connector material:

plastic

adapter color:

beige

sleeve material:

ceramic

fiber type:

multimode 50/125um,62.5/125um

polish mode:

working temperature:

-40 ~ +85 °C

wavelength:

850nm

house material:

PBT / ABS

connector:

نام محصول:

کابل mpo به mpo، کابل mpo به lc، کانکتور نوری mtp، کاست mtp

برجسته کردن:

,

bare fiber adapter

توضیحات محصول

PBT Plastic SC MM DX Fiber Optic Adapter Optical Coupler, SC Duplex Adapter

Fiber connector adapters are also referred to as fiber optic couplers. They are used to provide a

cable to cable fiber connection.. Yingda connector adapters are used to connect the same type

fiber optic connectors, while hybrid adapters connect different kinds of fiber optic connectors.

We offers a complete line of adapters for fiber optic connections, including ST, SC, FC, LC, MTRJ

style fiber optic adapters for both multimode and single-mode fiber applications. We also offer fiber

adapter plates for ST-, SC-, MT-RJ- or LC-type connections.

SC=Standard connector, "SC" connector is standard square connector, made of engineering plastic,

high temperature resistant,not easy to oxidation.Transmission equipment generally use SC connectors.

This is a kind of developed by Japan's NTT optical fiber connector. The shell rectangular, adopted

by the pin and the structure of the coupling sleeve size and FC are exactly the same,. The end face

of the pin is used more PC or APC model grinding way; Fastening way is to use plug pin bolt type,

does not need to rotate. This kind of connector price is low, plug is easy to operate, small ripple in

loss, high compressive strength, high density installation.

Features

Conforms to Telcordia GR-326-CORE standard
Conforms to YD/T-1272.3 standard
Good interchangeability,low insertion loss
Easy to use,plug
Application: FTTH,CATV,Telecommunications,etc
100% test in factory
High quality blister box package
Customer label with logo ok
Insertion loss<0.2dB

Specification

Wavelength	1200-1600nm
Polish method	UPC,PC,APC
Insertion loss	≤0.2dB
Max.Insertion loss	≤0.3dB
Repeatability	≤0.1dB
Interchangeability	≤0.2dB
Sleeve material	Cermic or metal
Working/Storage temperature	-40~+85℃
Matings time	>1000

Order information

Connector type: SC/UPC, SC/PC, SC/APC
Connector color: beige, blue, green, aqua, purple
Fiber type: SM, OM1, OM2, OM3, OM4
Type: simplex, duplex

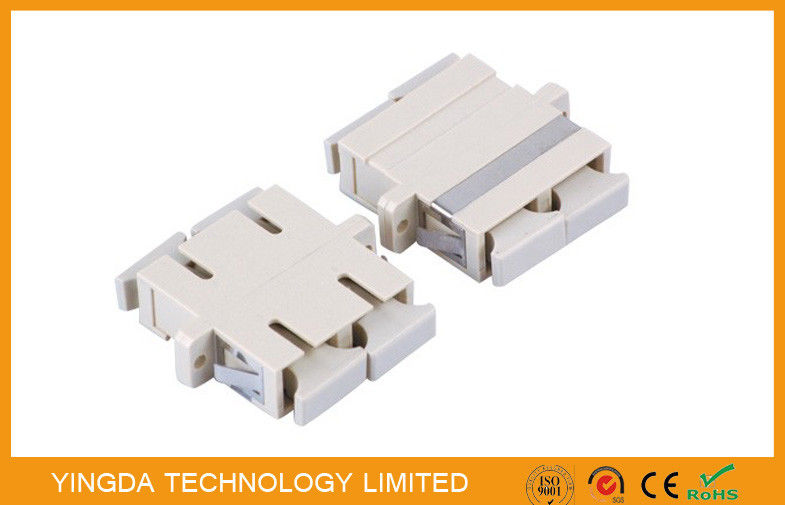

PBT White Plastic MM DX Fiber Optic Adapter / Coupler , SC Duplex Adapter 0

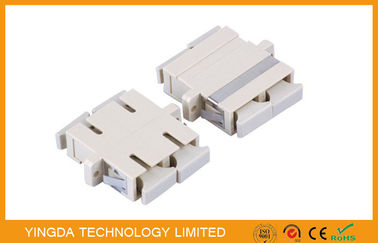

PBT White Plastic MM DX Fiber Optic Adapter / Coupler , SC Duplex Adapter 2
