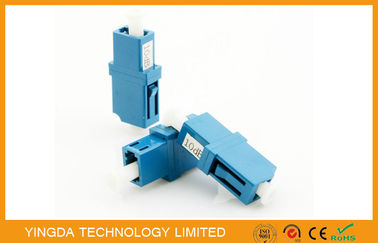

20dB 10dB 5dB 3dB SMF-28e Fiber Optic Attenautor , LC / PC Attenuator Female - Male

مقدار تولیدی:	100PCS
قیمت:	قابل مذاکره
بسته بندی استاندارد:	50 pc / plastic blister box or customized
Delivery period:	3-5 days
روش پرداخت:	T/T or western Union
ظرفیت تامین:	50,000pcs per month

اطلاعات دقیق

توضیحات محصول

امتیازها و نظرات

اطلاعات دقیق

محل منبع

نام تجاری

YINGDA

گواهی

Model Number

ATTN-LCS-01-B10

Attenuation:

10 dB

wavelength range:

1260-16500nm

test wavelength:

1310nm, 1550nm

material:

plastic PBT

Additional loss:

0.1dB

Working temperature::

-40～+85 (℃)

Fiber optic type:

single mode 9/125um

standard:

GR910, IEC

connector:

LC/UPC

connector color:

نام محصول:

آداپتور شبکه فیبر، کوپلینگ فیبر نوری، آداپتور مبدل رسانه، تضعیف کننده های مایکروویو، تضعیف کننده های

برجسته کردن:

build out attenuator,optical fiber attenuator

optical fiber attenuator

توضیحات محصول

LC/PC Attenautor 10dB 5dB 3dB SMF-28e Fiber, LC/PC Attenuator Female-Male 10dB

Optical fiber attenuator divide into flange adapter (coupler) type and Female to male or Variable (VOA)

type, according to connectors, can have MU, SC, ST, FC, LC etc..

From the microwave network point of view, attenuator is a two port lossy microwave networks. It belongs

to pass type microwave components.

Main application:

(1) to control the power level: the output power of the vibration control in microwave super heterodyne

receiver, to get the best noise coefficient and frequency conversion loss, then get the best reception.

In the microwave receiver, automatic gain control, improve dynamic range.

(2) decoupling components: as to the coupling element between the oscillator and the load.

(3) the relative standard: as a comparison of the relative standard of power level.

(4) jump attenuator in radar anti jamming: it is a variable attenuator whose attenuation value can

mutate, usually without introducing attenuation, encountered outside interference, a sudden

increase in attenuation.

Main features

Made of attenuation optical fiber, excellent performance
Simple structure, compact size, easy to install
Stable performance, high reliability
Suitable for 1260 ~ 1650nm wide wavelength
High reflection loss, low insertion loss

Technical parameters

Item	Attenuation/dB	Precision error (dB)	Working wavelength	Return loss(dB)	Connector type
Coupler type	1—2	≤±0.25dB	1310nm/1550nm	≥35dB	FC;SC/PC
	3—15	≤±10％dB	1310nm/1550nm	≥35dB	FC;SC/APC
	15-30	≤±1.5dB	1310nm/1550nm	≥35dB

Reliability test

Test condition	Insert change	Reflection change
Continuous collision (4000times)	< 0.2dB	>35dB
drop test	< 0.2dB	>35dB
bending test	< 0.2dB	>35dB
twist test	< 0.2dB	>35dB
Durability test:	< 0.2dB	>35dB
tensile test:	< 0.2dB	>35dB
Connector fit resistance	200-400gf	200-400gf
vibration test:	< 0.2dB	>35dB
salt spray test	< 0.2dB	>35dB
shock test	< 0.2dB	>35dB
operating temperature	-20℃--+70℃
storage temperature	-40℃--+70℃

Other types like FC SC can be provided:

20dB 10dB 5dB 3dB SMF-28e Fiber Optic Attenautor , LC / PC Attenuator Female - Male 0
