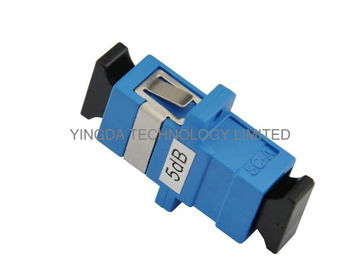

FITL SC / PC Fiber Optic Connector Attenuator 3dB 5dB 10dB For Network Testing

Name: FITL SC / PC Fiber Optic Connector Attenuator 3dB 5dB 10dB For Network Testing
Brand: YINGDA TECHNOLOGY LIMITED
SKU: ATTN-SCS-01-B03
Price: 29.18 USD
Availability: InStock

نام تجاری:	YINGDA
شماره مدل:	ATTN-SCS-01-B03
مقدار تولیدی:	100PCS
قیمت:	قابل مذاکره
زمان تحویل:	3-5 days
شرایط پرداخت:	T/T or western Union

اطلاعات دقیق

توضیحات محصول

اطلاعات دقیق

محل منبع:

چین

گواهی:

ISO

Attenuation:

5 dB

wavelength range:

1260-16500nm

test wavelength:

1310nm, 1550nm

material:

plastic PBT/ABS

Additional loss:

0.2dB

Working temperature::

-40～+85 (℃)

Fiber optic type:

single mode 9/125um

standard:

GR910, IEC

connector:

SC / PC

connector color:

blue

نام محصول:

آداپتور شبکه فیبر، کوپلینگ فیبر نوری، آداپتور مبدل رسانه، تضعیف کننده های مایکروویو، تضعیف کننده های

Packaging Details:

50 pc / plastic blister box or customized

Supply Ability:

50,000pcs per month

برجسته کردن:

build out attenuator,optical fiber attenuator

optical fiber attenuator

توضیحات محصول

SC / PC Fiber Optic Connector Attenuator 3dB 5dB 10dB, SC Adapter Attenuator 5dB

Fiber optic attenuators are used in the fiber optic communications to reduce the optical fiber power

at a certain level, the most commonly used type is female to male plug type fiber optic attenuator,

it has the optical fiber connector at one side and the other side is a female type fiber optic adapter,

fiber optic attenuator name is based on the connector type and the attenuation level.

SC/PC 5dB fiber optic attenuator means this attenuator uses SC fiber optic connector and it can

reduce the optical fiber power level by 7dB. Commonly used attenuation range is from 1dB to 25dB,

and it is also available to provid upto 30dB.

FEATURES

Wavelength Independent
Low ripple
Excellent environmental stability
Design certified to more than 200mW continuous
Power handling capacity with no degradation in performances
Backreflection performance to < -55dB available
for UPC and < -60dB available for APC
Polarization insensitive

APPLICATIONS

Long Haul Telecommunication
Fiber in the Loop (FITL)
Local Area Networks (LAN)
Cable TV & Video distribution
Passive Optical Networks
Network Testing

Specification

Parameter	Condition	Value [dB]
Parameter	Condition	Min	Typical	Max
Attenuation			1 ~ 10
Attenuation			15, 20
Return Loss	SPC	> 40	> 45
	UPC	> 50	> 55
	APC	> 60	> 65
Attenuation Accuracy	1 ~ 10		±0.5
Attenuation Accuracy	15 ~ 20		±1.0
Operating Wavelength [nm]	1310 / 1550
Operating Temperature	-40℃ ~ +85℃
Humidity	75℃, RH 95%

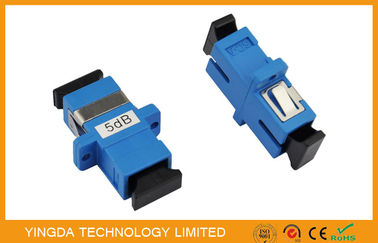

FITL SC / PC Fiber Optic Connector Attenuator 3dB 5dB 10dB For Network Testing 0
