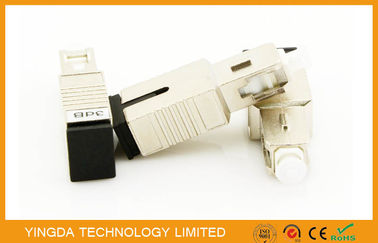

Fixed SC Fiber Attenuator Male - Female Type SC / PC To The Home Network

Name: Fixed SC Fiber Attenuator Male - Female Type SC / PC To The Home Network
Brand: YINGDA TECHNOLOGY LIMITED
SKU: ATTN-SCF-01-B03
Price: 29.18 USD
Availability: InStock

نام تجاری:	YINGDA
شماره مدل:	ATTN-SCF-01-B03
مقدار تولیدی:	100PCS
قیمت:	قابل مذاکره
زمان تحویل:	3-5 days
شرایط پرداخت:	T/T or western Union

اطلاعات دقیق

توضیحات محصول

اطلاعات دقیق

محل منبع:

چین

گواهی:

ISO

Attenuation:

2dB

test wavelength:

1310nm, 1550nm

body material:

Plastic

Additional loss:

0.1dB

Working temperature::

-40～+85 (℃)

Fiber optic type:

single-mode

industry standard:

Telcordia TA-NWT-001209

connector type:

SC/PC

color:

dust cap: white, connector body: blue

connector shape:

male female type

نام محصول:

آداپتور شبکه فیبر، کوپلینگ فیبر نوری، آداپتور مبدل رسانه، تضعیف کننده های مایکروویو، تضعیف کننده های

Packaging Details:

1 pc / plastoc bag

Supply Ability:

50,000pcs per month

برجسته کردن:

build out attenuator,optical fiber attenuator

optical fiber attenuator

توضیحات محصول

LC Optic Attenuator Fixed Type 10dB, 1-20dB Fiber Attenuator LC/PC For CATV FTTH

Fiber Optic Female to Male Plug-in Type attenuator (F-M attenuator) is a kind of attenaution

adjustable attenuator which one end is connector type, the other end is adapter female type.

According to the ferrule end face it can be divided into PC and APC,attenuation is very selective,

0 ~ 30dB optional, wavelength 1250 to 1650nm.

Male to female type fixed attenuator is mainly applied to the optical link optical power attenuation

in order to get the target required power. It mainly have types: SC, LC, FC, ST, MU.

Now we can offer 1dB,2dB, 3dB, 4dB, 5dB,7dB, 10dB,15dB, 20dB, 25dB,etc.

Features

High precision attenuation value
Low additional loss
High durability
High reliability and stability
Connector type: FC, SC, LC, ST, FC/SC or other type

Application

Telecommunication
CATV
LAN & WAN
Network
Broadband
FTTP network

Technical Parameter

Return Loss	≥45dB(SPC), ≥55dB(UPC), ≥65dB(APC)
Attenuation Tolerance(dB)	1-5dB＜±0.5 dB
	5-10dB＜±10%
	11-25dB＜±5%
Operating Wavelength(nm)	1310±10nm
	1550±10nm
	1310 and 1550±10nm
Operating Temperature(℃)	-40℃～+75℃

Order information

Attenuator	Item
Adapter type
	FC/APC fixed attenuator 1/2/3/4/5/8/10/15dB
	SC/PC fixed attenuator 1/2/3/4/5/10/15dB
	SC/APC fixed attenuator 1/2/3/4/5/8/10/15dB
Female to male type (F-M)	FC/SM/UPC build out (plug-in) attenuator 1/2/3/4/5/10/15dB
	SC/SM/UPC buid out (plug-in) attenuator 1/2/3/4/5/10/15dB
	FC/SM/APC build out (plug-in) attenuator 1/2/3/4/5/10/15dB
	SC/SM/APCbuild out (plug-in) attenuator 1/2/3/4/5/10/15dB
	LC/SM/APC build out (plug-in) attenuator 1/2/3/4/5/10/15dB
Variable(VOA) type	FC/LC/ST/SC connector mechanical 1~30dB Variable attenuator (MVOA attenuator)

Fixed SC Fiber Attenuator Male - Female Type SC / PC To The Home Network 0

Other types female to male attenuator

Fixed SC Fiber Attenuator Male - Female Type SC / PC To The Home Network 2
