FC Square Fiber Optic Adatper Metal In Black Blue Grey For Network Cable

مقدار تولیدی:	100 PCS
قیمت:	0.04USD-2.15USD
بسته بندی استاندارد:	1 pc / bag or 10 pc/ blister box
Delivery period:	3 days
روش پرداخت:	T/T or western Union
ظرفیت تامین:	50,000pcs per month

اطلاعات دقیق

توضیحات محصول

امتیازها و نظرات

اطلاعات دقیق

محل منبع

نام تجاری

YINGDA

گواهی

ISO,SGS

Model Number

ADB-FC-SQ

material:

Metal

color:

blue, gray, black

shape:

round , square

type:

fiber optic bare adapter

weight:

Fiber type:

single-mode

نام محصول:

کابل mpo به mpo، کابل mpo به lc، کانکتور نوری mtp، کاست mtp

برجسته کردن:

,

bare fiber adapter

توضیحات محصول

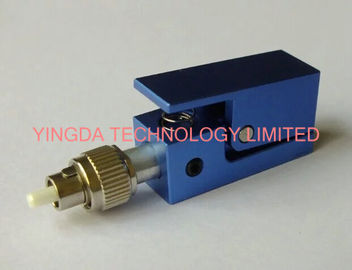

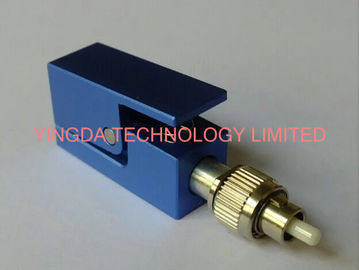

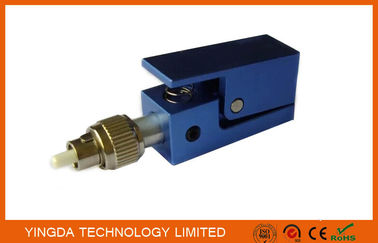

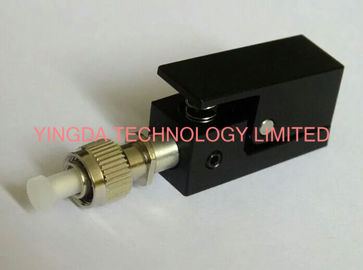

FC Square Bare Fiber Adapter, FC Bare Fiber Optic Adatper Metal Black Blue Grey

Description

Bare Fiber Adapter can link bared optic and light source ,testing equipment, light appearance etc,

and the products used for test appearance and temporary conjunction between fiber optics

extensively (repair fiber optic cable urgently). It have the bare optical fiber inside one side,

the other side is a connector that can plug into the equipment.

Feature

Simplex and quickly interconnect
Low insertion loss
Repeatability and exchangeability good
Stabilize the credibility
Interchangeable connector heads available

Application

Testing fiber on the reel
Optical fiber through connection test
Two-way communication during optical-fiber cable installation and maintenance
First-aid repair,temporary connection and testing on optical fiber project.

Specification

Shape	Square / Round
Connector	FC/PC, SC/PC, ST/PC, LC/PC
Applicable fiber	SM & MM
Ferrule diameter	123-127 um
Ferrule outder diameter	2.499mm 1.249mm
Cable diameter	250um & 900um
Insertion Loss	≤0.20dB
Repeat ability	＜0.2dB
Tensile strength	100g
Plug time	>1000 times
Operating Temperature	-40 ~+85℃
Size	Length:40mm, diameter:30mm

FC Square Fiber Optic Adatper Metal In Black Blue Grey For Network Cable 0

امتیازها و بررسی‌ها

امتیاز کلی

5.0

بر اساس 50 بررسی برای این تامین‌کننده

بررسی اجمالی امتیاز

توزیع تمام رتبه‌بندی‌ها به شرح زیر است.

5 ستاره‌ها

100%

4 ستاره‌ها

3 ستاره‌ها

2 ستاره‌ها

1 ستاره‌ها

تمام بررسی ها

A*e

Indonesia Feb 7.2025

مفید (3)

Everything excellent, from the treatment in the negotiation, delivery time, and the quality of their product very good Delivery： 100% Quality： 100% Design： 100% Service： 100%

N*n

France Oct 25.2023

مفید (8)

Excellent product, good material quality! Easy to installtion, suitable for mini sc adapter and flat drop cable...

H*d

Morocco Sep 6.2022

مفید (5)

This enclosure worked perfectly, well designed tray inside for spooling excess fiber. Solid post / clamp to secure jacket .Very happy with product , would buy again.
