Variable Fiber Optic Attenuator

Name: Variable Fiber Optic Attenuator
Brand: YINGDA TECHNOLOGY LIMITED
SKU: ATTN-MVOA-LCS-02
Price: 29.18 USD
Availability: InStock

نام تجاری:	YINGDA
شماره مدل:	ATTN-MVOA-LCS-02
مقدار تولیدی:	5 PCS
قیمت:	قابل مذاکره
زمان تحویل:	3-5 days
شرایط پرداخت:	T/T or western Union

اطلاعات دقیق

توضیحات محصول

اطلاعات دقیق

محل منبع:

چین

گواهی:

ISO

Attenuation:

0- -40 dB Variable

test wavelength:

1260~1620 nm

type:

mechanical adjustable attenuator

Working temperature::

-40～+85 (℃)

Fiber optic type:

single-mode,multimode

connector type:

SC ST FC LC MU all ok

polish:

UPC APC PC

connector plug time:

1000 times

package:

1pc in a blister box

connector color:

green,blue,beige

cable diameter:

0.9mm, 2.0mm

نام محصول:

آداپتور شبکه فیبر، کوپلینگ فیبر نوری، آداپتور مبدل رسانه، تضعیف کننده های مایکروویو، تضعیف کننده های

Packaging Details:

1 pc / plastoc blister box or customized

Supply Ability:

50,000pcs per month

برجسته کردن:

build out attenuator,inline optical attenuator

inline optical attenuator

توضیحات محصول

LC Duplex Mini Module Mechanical Variable Fiber Optic Attenuator MVOA Attenuator

Attenuator is in the specified frequency range, a kind of circuit for introducing a predetermined

attenuation.The unit by the decibels which introduced attenation and ohmic characteristic of its

Impedance. Attenuators are widely used in the cable television system in order to meet the

requirements of multi port for electric level such as the amplifier input, output level control,

branch attenuation control.

Product features:

Ultra high resolution
Environment protection, perfect stability and reliability
Can be used in different wavelength (1260-1620nm)

Application:

Telecommunication Network
CATV Network
Data communication
Instrumentation
Local Area Network
Fiber Optic Access Network

Technical Performance

Item	value
Operating Wavelength (nm)	1310±30&1550±30
Insertion Loss (dB)	<0.9 (With connectors)
Max. Attenuation Range (dB)	0.9-50
Insertion Loss Temperature Sensitivity (dB/°C )	<0.005
PDL (dB)	<0.15 (<15dBattenuation) <0.25 (16~50dBattenuation)
Return Loss (dB)	>45 (UPC)
Maximum Power Handling (mW)	300
Operating Temperature (°C)	-5~+70
Storage Temperature (°C)	-40 ~+85
Connector type	LC / UPC
Pigtail	SMF-28e(Φ2.0mmcable)
Cable Length (m)	1.0~1.1
Dimension (mm)	26.0 x 16.0 x 16.0

Note: under normal conditions, not including connectors, welding device and end face loss

Order information

Item

Wavelength

working/nm

Fiber type

Pigtail length

/meter

Connector

Mechanical Variable

Attenuator (MVOA)

F=1260~1620
C=customized

SM=single mode
MM=multimode

1=1.0m
2=2.0m
3=3.0m
C=customized

1=FC/APC
2=FC/PC
3=SC/APC
4=SC/PC
5=LC/APC
6=LC/PC

FC MVOA optical fiber attenuator cable can be 0.9mm or 2.0mm

connectors: SC FC LC ST ,etc

Package: blister box individual package

Polish method: UPC APC PC

Cable type: singlemode, multimode

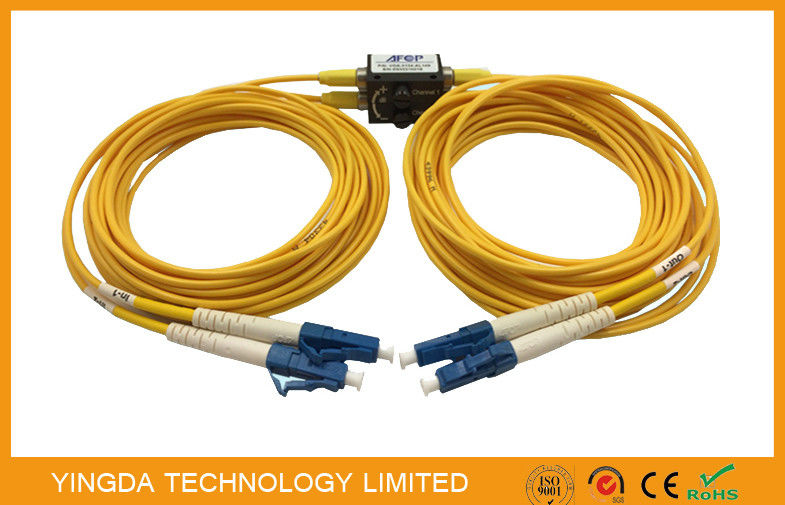

Variable Fiber Optic Attenuator 0

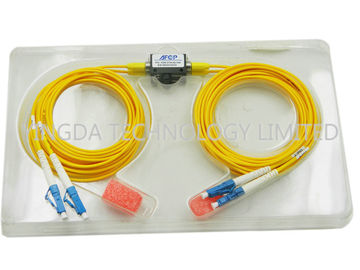

Variable Fiber Optic Attenuator 1
