Multimode Hybrid Fiber Optic Adapter SC - ST Connector With Ceramic Sleeve

مقدار تولیدی:	100 PCS
قیمت:	0.04USD-2.15USD
بسته بندی استاندارد:	1 pc / bag or 10 pc/ blister box
Delivery period:	3 days
روش پرداخت:	T/T or western Union
ظرفیت تامین:	50,000pcs per month

اطلاعات دقیق

توضیحات محصول

امتیازها و نظرات

اطلاعات دقیق

محل منبع

نام تجاری

YINGDA

گواهی

ISO,SGS

Model Number

AD-SC-ST-SX-M

material:

Metal, plastic

dust cap color:

red. black

type:

hybrid adapter

weight:

Fiber type:

single-mode, multimode

sleeve material:

ceramic

نام محصول:

کابل mpo به mpo، کابل mpo به lc، کانکتور نوری mtp، کاست mtp

برجسته کردن:

,

bare fiber adapter

توضیحات محصول

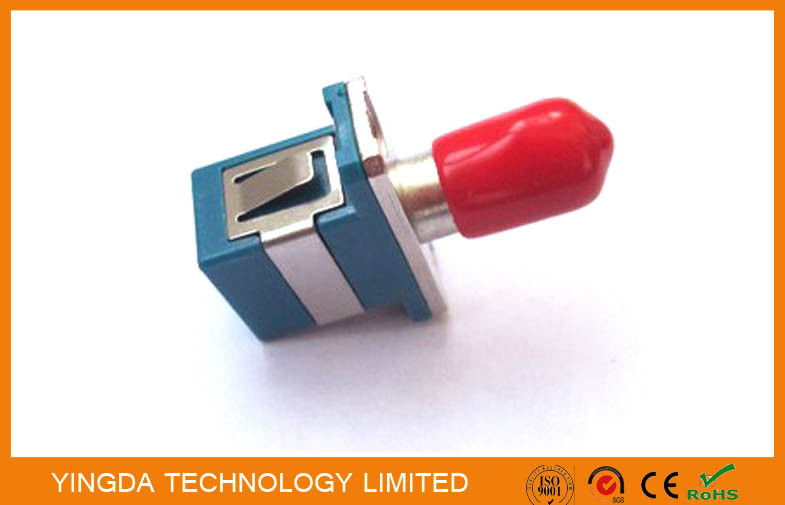

Multimode Hybrid Fiber Optic Adapter SC - ST Connector With Ceramic Sleeve

Description:

ST/SC Hybrid adapter can connect SC and ST both connectors on both ends,and provides APC end

face connection. Duplex or multiple adapter can improve the density of installation, save a space.

Fiber adaptor is one kind of fiber flange. It is mainly used for interconnecting two fiber connectors.

Both UPC and APC polishing mode are available.For interconnecting various connectors, fiber

connector can be divided into 2 kinds, mating sleeve and hybrid adaptor.

Features

Easy to use
Can be embedded in any termination box, splicing tray and etc.
Both simplex and duplex type is available
Both UPC and APC polishing mode is available
FC to ST adaptor
Using metal material makes it firm and durable
Zirconia internal tube ensures a low insertion loss

Specification

Insertion loss	≤0.2dB
Insert-pull test	1000 times
Repeat ability	≤0.1dB
Tensile strength	≥10kg
Operating temperature	-40°C~85°C
Sleeve materials	Ceramic or Metal
Standard	Bellcore TA-NWT-001209
Storage temperature	-40°C~85°C

SPECIFICATIONS

Insertion Loss	<0.20 dB
Plug and unplug force	200-600(g/f)
Durability	plug and unplug 1000times
Operating Temperature	-40+85°C

Order information

Housing Material	Sleeve Material	Channel
zinc alloy	Ceramic	Simplex
Plastic	Phosphor bronze	duplex

Multimode Hybrid Fiber Optic Adapter SC - ST Connector With Ceramic Sleeve 0

We can offer all kinds of fiber optic adapters,100% test before delivery:
